Yamaha F200B - Hose Routing; Fuel Hose and Blowby Hose; Fuel System

6-1
FUEL
Fuel system

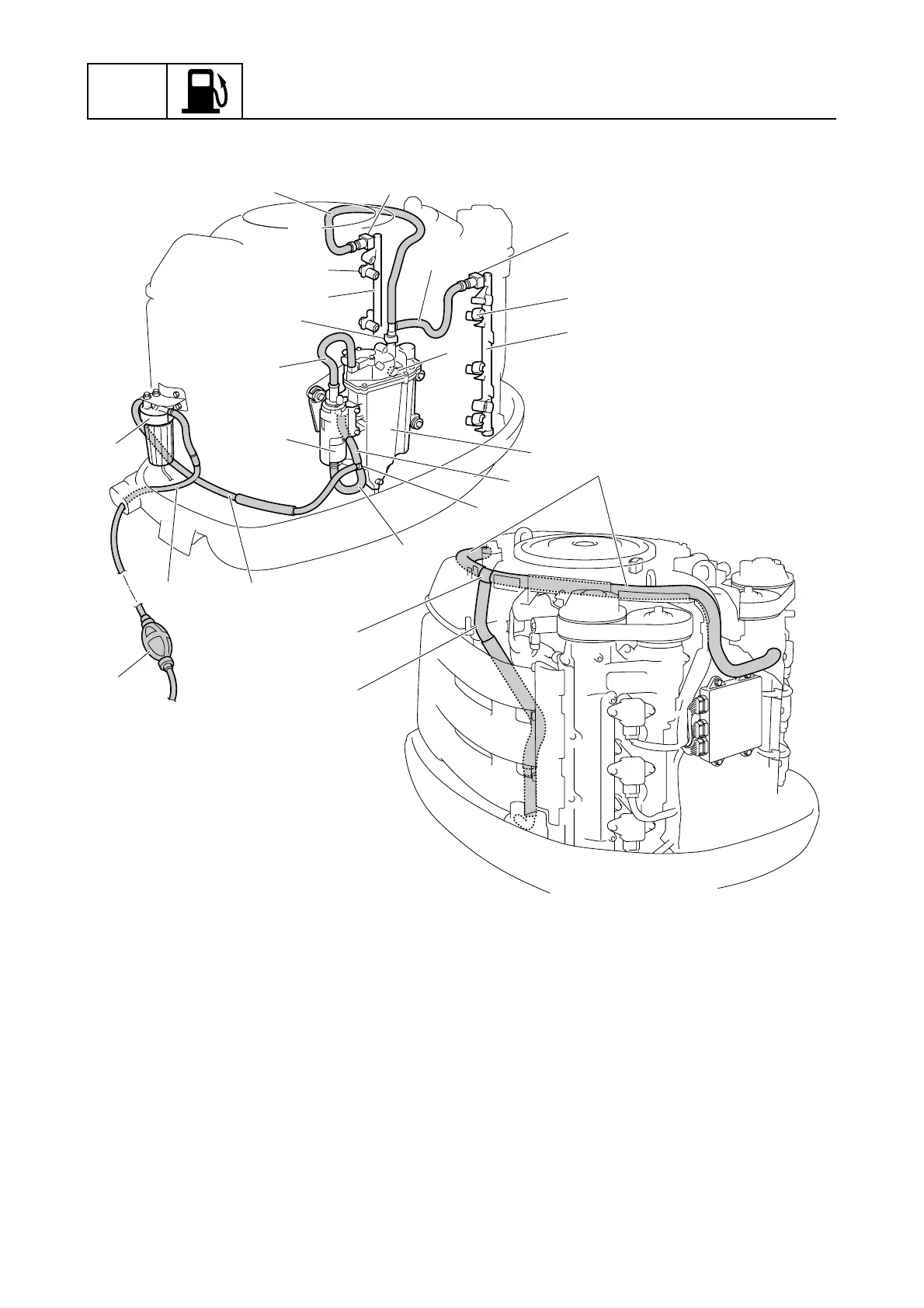

Hose routing
Fuel hose and blowby hose
1 Fuel hose (primer pump to fuel filter
assembly)
2 Fuel hose (fuel filter assembly to joint)
3 Fuel hose (joint to low-pressure fuel
pump)
4 Fuel hose (vapor separator to joint)
5 Fuel hose (low-pressure fuel pump to
vapor separator)
6 Fuel hose (vapor separator to fuel rail
[PORT])
7 Fuel hose (vapor separator to fuel rail
[STBD])
8 Blowby hose (cylinder head cover [STBD]
to intake silencer)
9 Blowby hose (cylinder block to joint)
a Primer pump
b Fuel filter assembly
c Joint
d Low-pressure fuel pump
e Vapor separator
f Pressure regulator
g Quick connector
h Fuel injector
7
6
f
e
4
c
3
9
8
n
1
2
b
d
m
h
g
k
g
h
g
5
a
