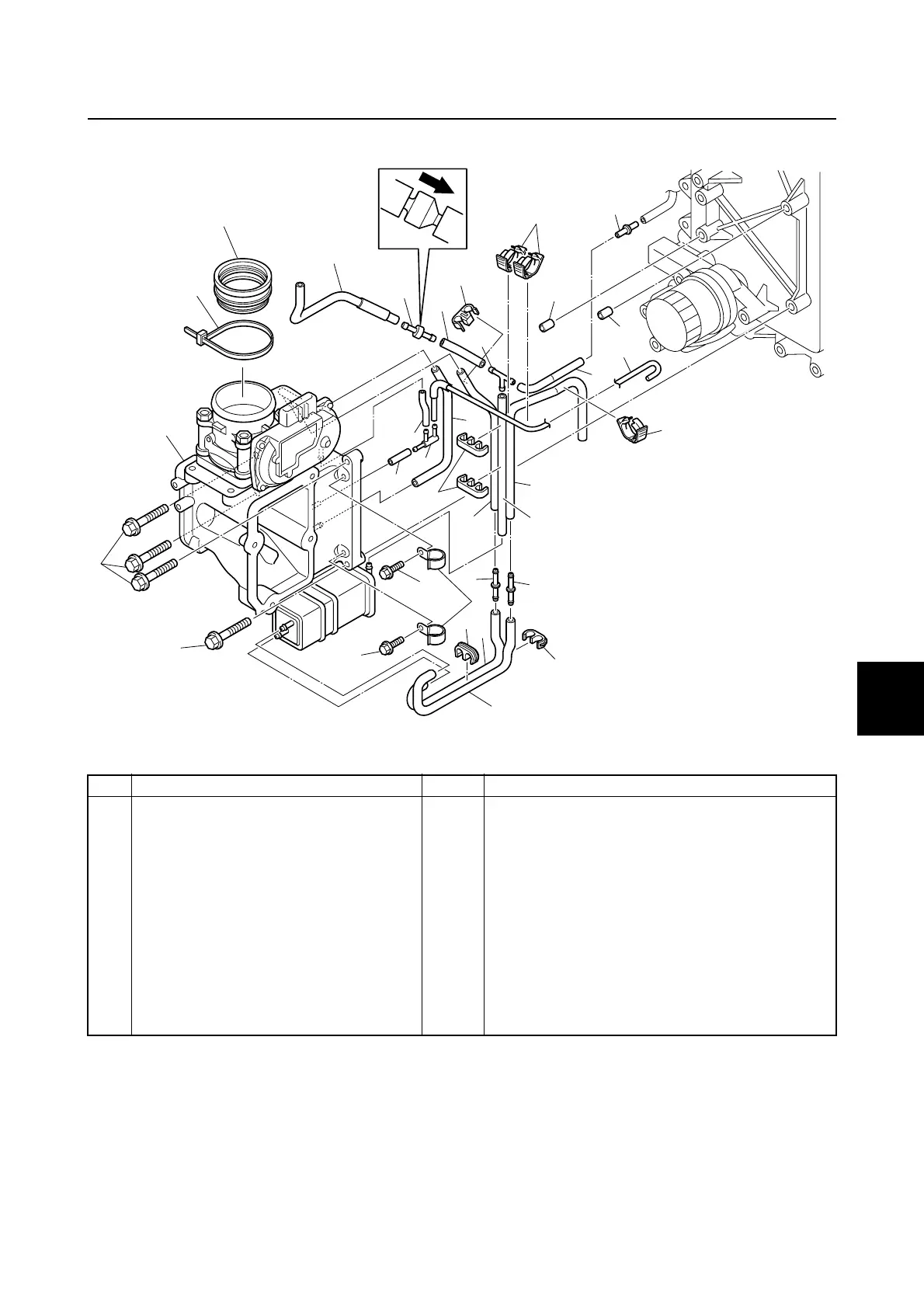

Yamaha F200B - Page 231

6-22
6
No. Part name Q’ty Remarks
18 Joint 1 ø3 mm
19 Dowel 2
20 Holder 1
21 Joint 1
22 Hose 1
23 Check valve 1
24 Hose 1
25 Hose 1
26 Hose 1
27 Joint 1
28 Hose 1
3
23
24
20
18
19
19
21
22
27
12
10
10
13
25
26
15
16
17
28
11
5
5
8
8
9
7
3
1
2
4
6
14
14
Throttle body
