Yamaha F200B - Page 236

6-27
FUEL

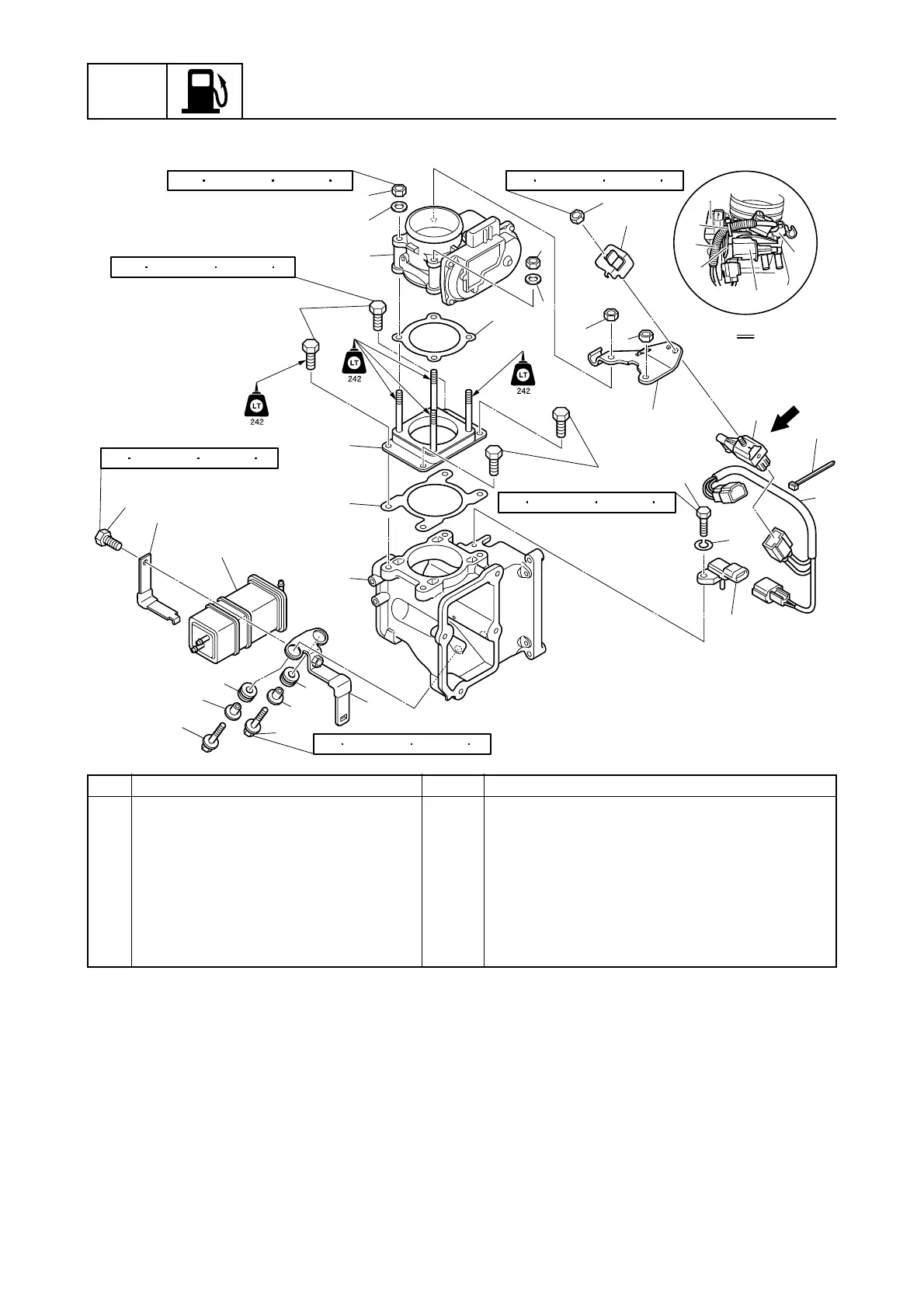

Fuel system
No. Part name Q’ty Remarks
18 Bolt 1 M6 × 20 mm
19 Throttle body assembly wiring harness
extension
1
20 Plastic tie 1
21 Vapor shut-off valve 1
22 Bracket 1
23 Holder 1
24 Nut 1
A
A
13 N m (1.3 kgf m, 9.6 ft lb)
13 N m (1.3 kgf m, 9.6 ft lb)
5 N m (0.5 kgf m, 3.7 ft lb)
5 N m (0.5 kgf m, 3.7 ft lb)
5 N m (0.5 kgf m, 3.7 ft lb)
5 N m (0.5 kgf m, 3.7 ft lb)
1
2
2
1
1
1
3
3
4
5
5
10
9
6
7
8
20
20
21
21
22
22
23
23
24
