Yamaha F200B - Page 372

LOWR
Lower unit
8-9

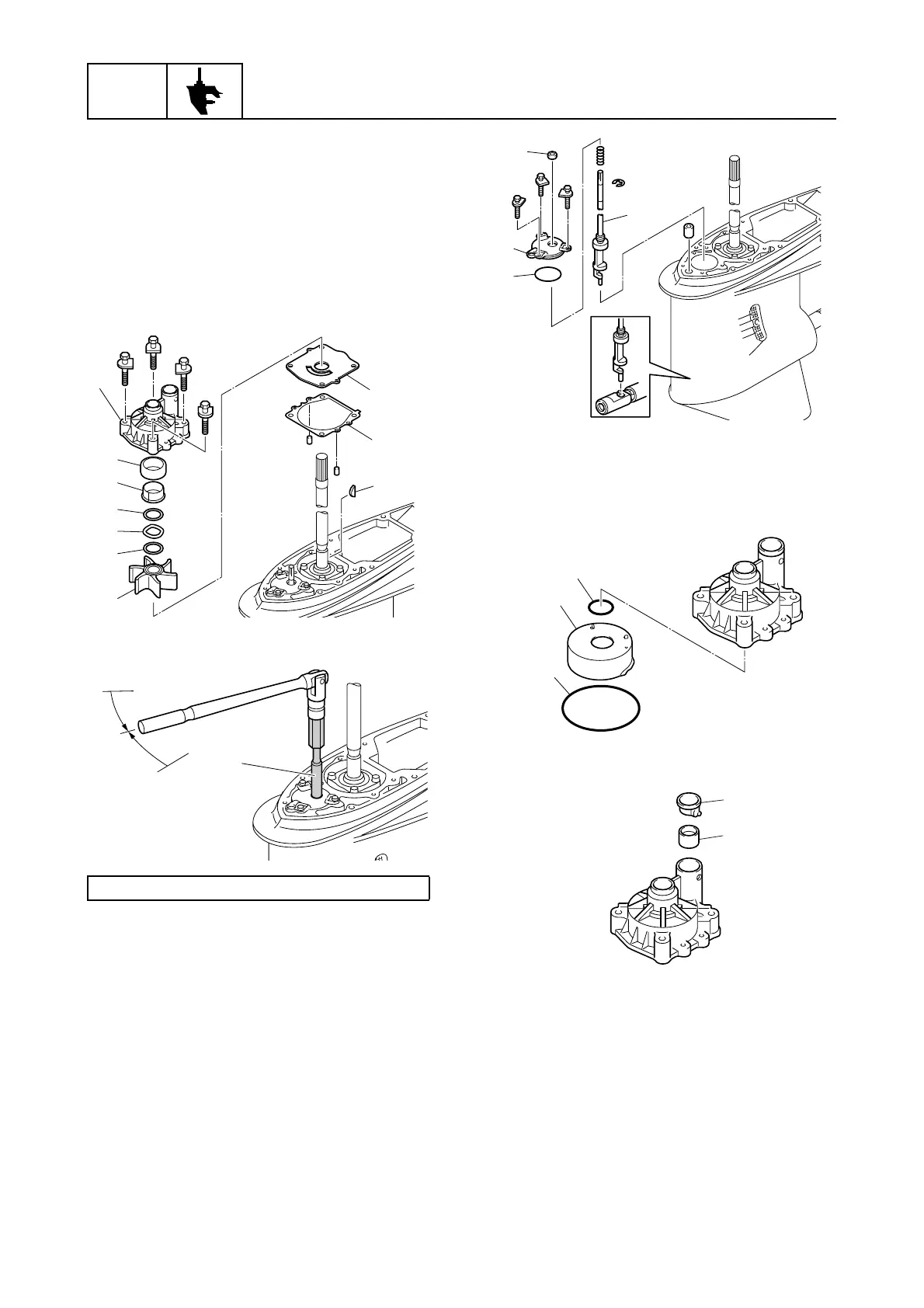

Removing the water pump and shift
rod
1. Remove the water pump housing 1, col-
lar 2, spacer 3, washers 4, wave
washer 5, impeller 6, and Woodruff key
7.
2. Remove the outer plate cartridge 8 and
gasket 9.
3. Set the gear shift to the N position.
4. Remove the plate A, oil seal B, O-ring
C, and shift rod D.
Disassembling the water pump
housing
1. Remove the O-ring 1, insert cartridge
2, and O-ring 3.
2. Remove the cover 4 and seal 5.
Checking the water pump and shift
rod
1. Check the water pump housing. Replace
if deformed.
Shift rod socket 0: 90890-06679
1
2
3
4
5
4
6
7
8
9
R
N
F
0
A
D
C
B
3
2
1
4
5
