Yamaha F200B - Page 482

BRKT

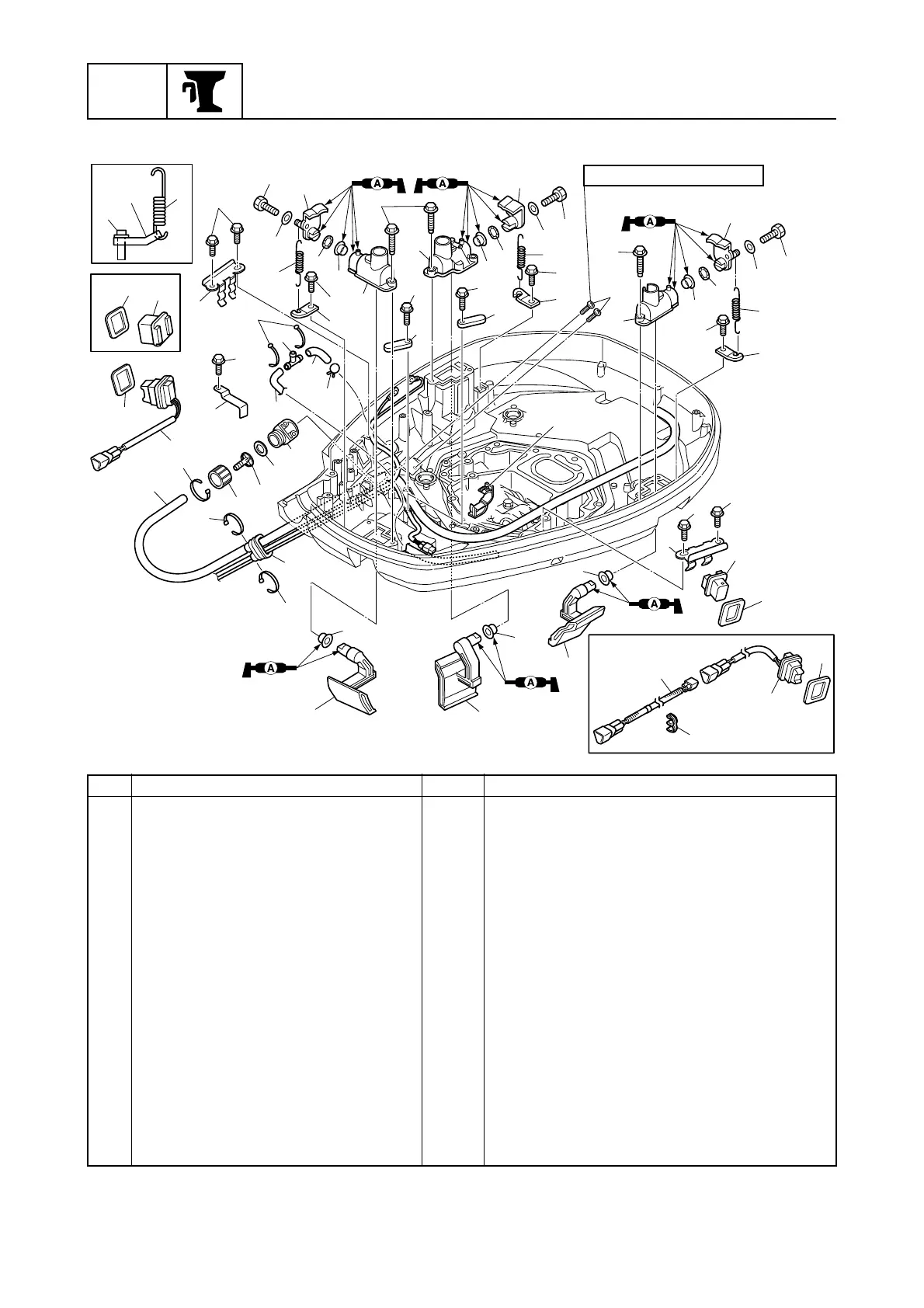

Bracket unit
9-7
È Counter rotation model
No. Part name Q’ty Remarks
17 Cowling lock lever (PORT) 1
18 Cowling lock lever (STBD) 1
19 Cowling lock lever (BOW) 1
20 Plastic tie 5
21 Grommet 1
22 Hose 1
23 Joint 1
24 Joint 1
25 Gasket 1
26 Adapter 1
27 Hose 1
28 Joint 1
29 Hose 1
30 Clamp 1
31 Bolt 2 M6 × 25 mm
32 Plate 2
33 Screw 2 ø6 × 20 mm
6
7
5
È
È
33
14
19
12
18
12
12
13
10
11
9
5
14
6
32
31
15
5
37
31
12
11
32
6
7
9
10
5
7
6
5
16
12
9
10
8
11
8
2
25
26
24
23
20
22
21
1
1
5
7
4
27
29
3
20
20
5
5
4
12
17
3
1
1
2
35
36
8
34
30
28
20
5 N m, 3.7 ft lb)m (0.5 kgf
