BRKT
Bracket unit
9-9

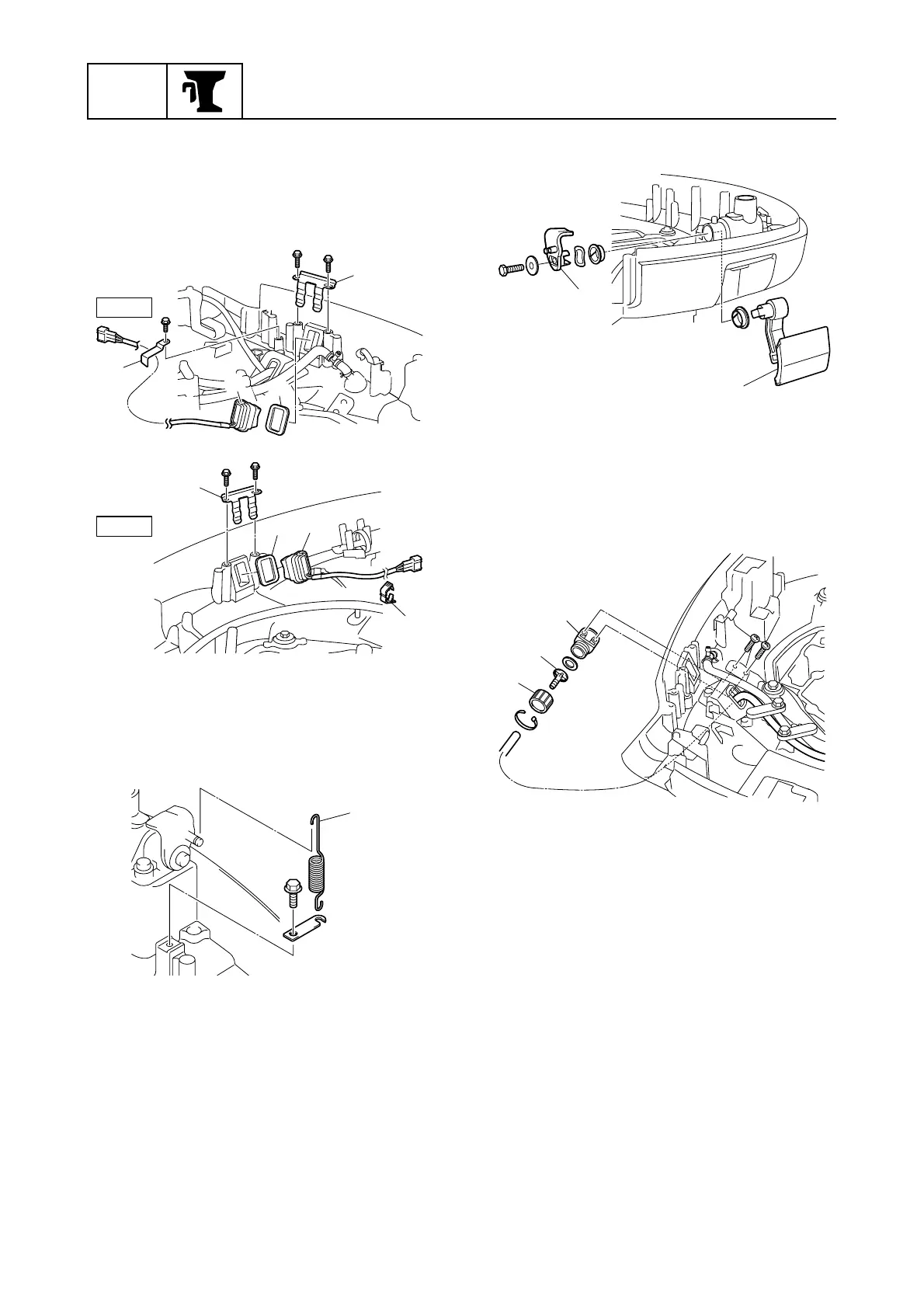

Removing the PTT switch
1. Remove the holder 1 (regular rotation
model) or holder 2 (counter rotation
model) and holder 3, and then remove
the PTT switch 4 and gasket 5.
È Regular rotation model
É Counter rotation model
Removing the cowling lock lever
1. Remove the spring 1.
2. Remove the lever 2 and cowling lock
lever 3.
Removing the flushing hose and
cooling water hose
1. Remove the adapter 1 and joints 2 and
3.
2. Remove the plates 4 and holder 5 (reg-
ular rotation model).
3. Remove the cooling water pilot hose 6,
cooling water hose 7, and joint 8.
STBD
3
1
5
4
È
3
4
2
5
PORT
É
1
2
3
1
3
2
To Next Page
