9-28
9

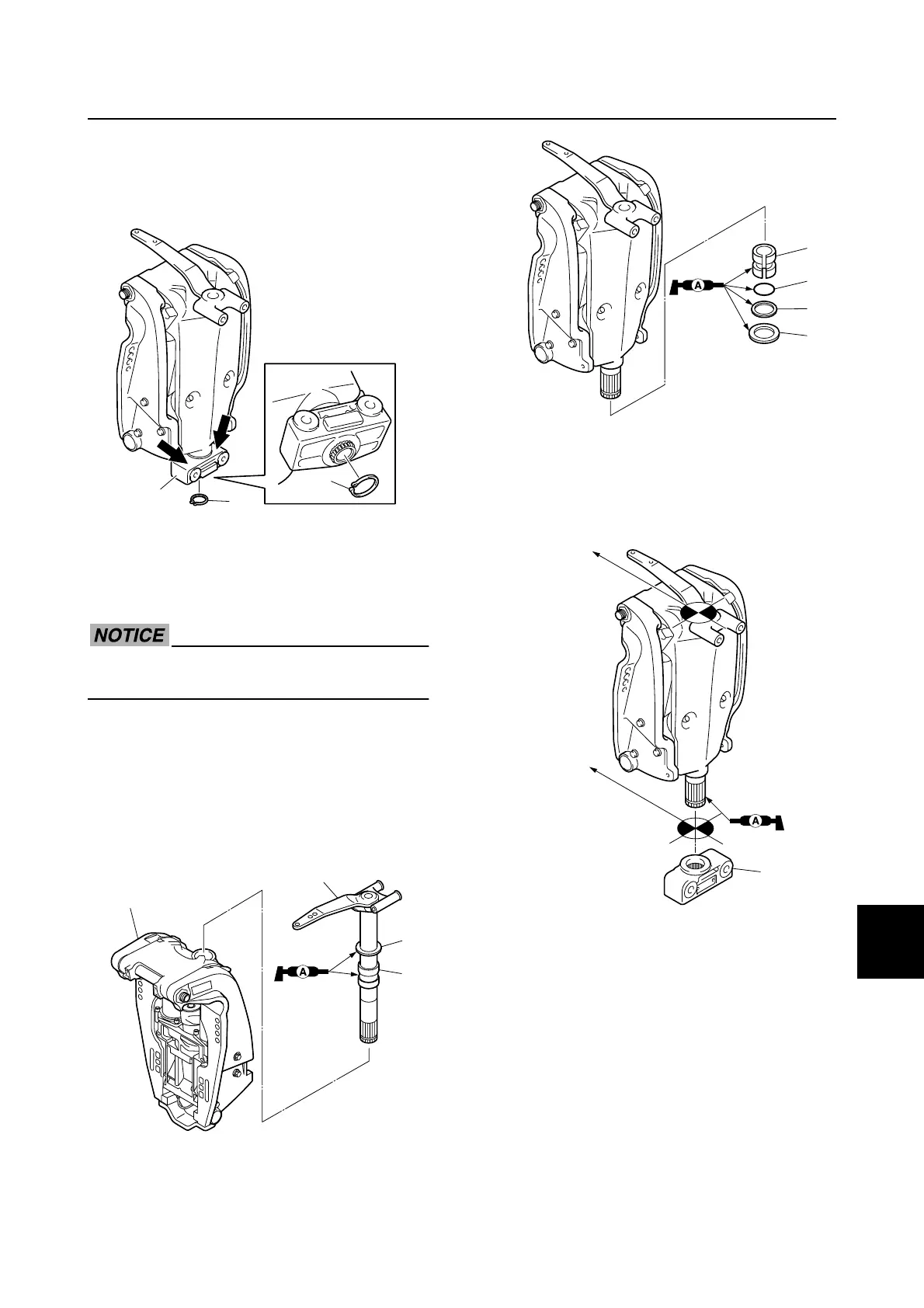

Removing the steering arm
1. Remove the circlip 1, and then remove
the steering yoke 2 by striking it with a
copper hammer.
2. Remove the steering arm from the swivel
bracket.
Installing the steering arm
Do not reuse an O-ring, always replace it
with a new one.
1. Install the washer 1 and bushing 2 onto
the steering arm 3.
2. Place the bracket assembly 4 in an
upright position, and then install the
steering arm 3.
3. Install the bushing 5, a new O-ring 6,
the bushing 7, and the washer 8.
4. Install the steering yoke 9 so that the
steering arm and steering yoke 9 are
both facing in the same direction (a and
b are aligned).
5. Hold the steering arm 3, and then strike
the steering yoke 9 using a copper ham-
mer until the groove c for installing the
circlip is visible.
6. Install the circlip 0.
1
1
2
1
2
3
4
5
6
7
8
9
a
b
Steering arm
