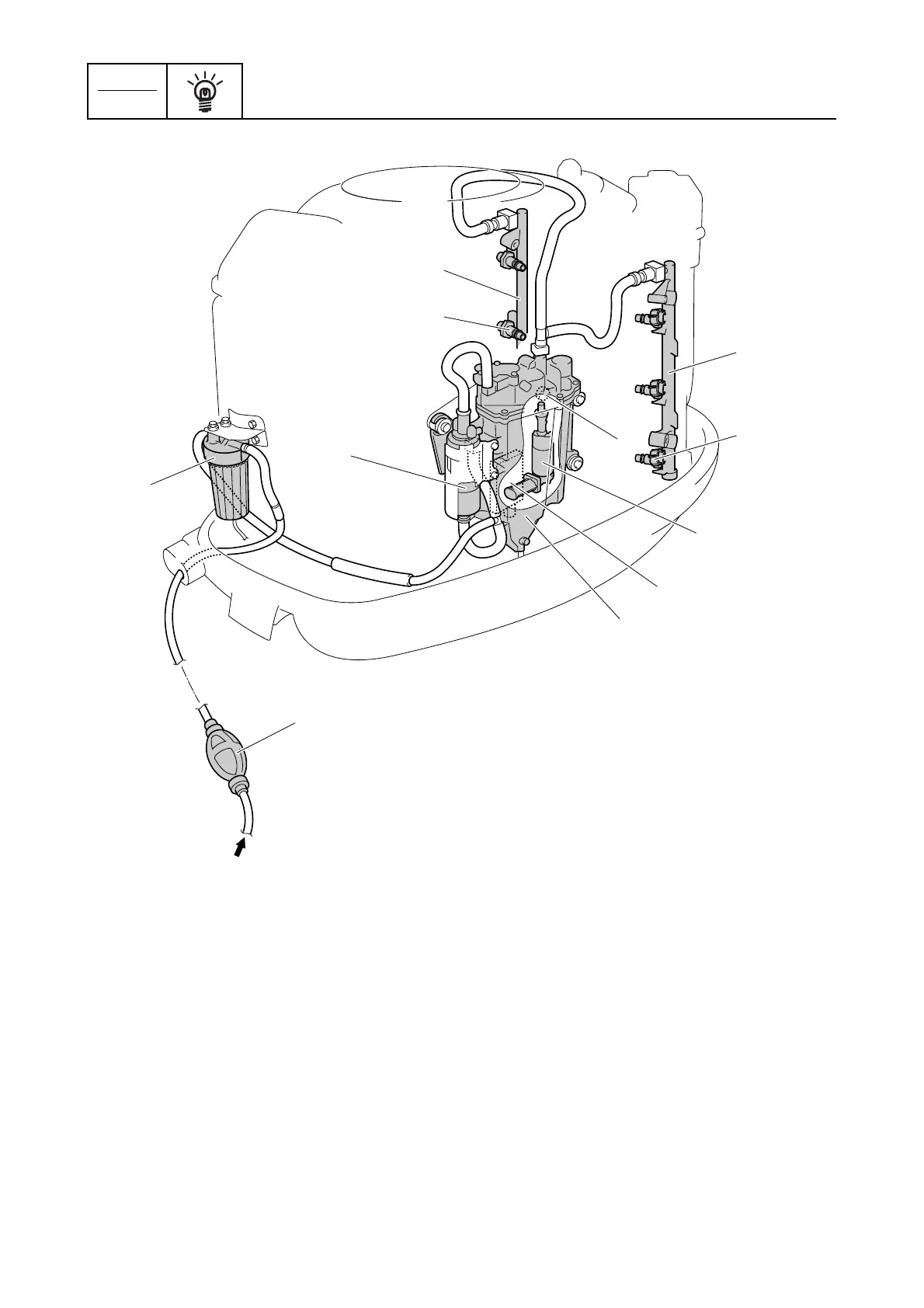

Technical features and description
È From the fuel tank
1 Primer pump
2 Fuel filter assembly (with water separator)
3 Low-pressure fuel pump
4 Vapor separator
5 Fuel cooler
6 High-pressure fuel pump
7 Pressure regulator
8 Fuel rail (PORT)
9 Fuel rail (STBD)
0 Fuel injector
9
8
0
0
7
4
5
3
2
1
6
È
