2-19
TECH
FEA
Technical features and description

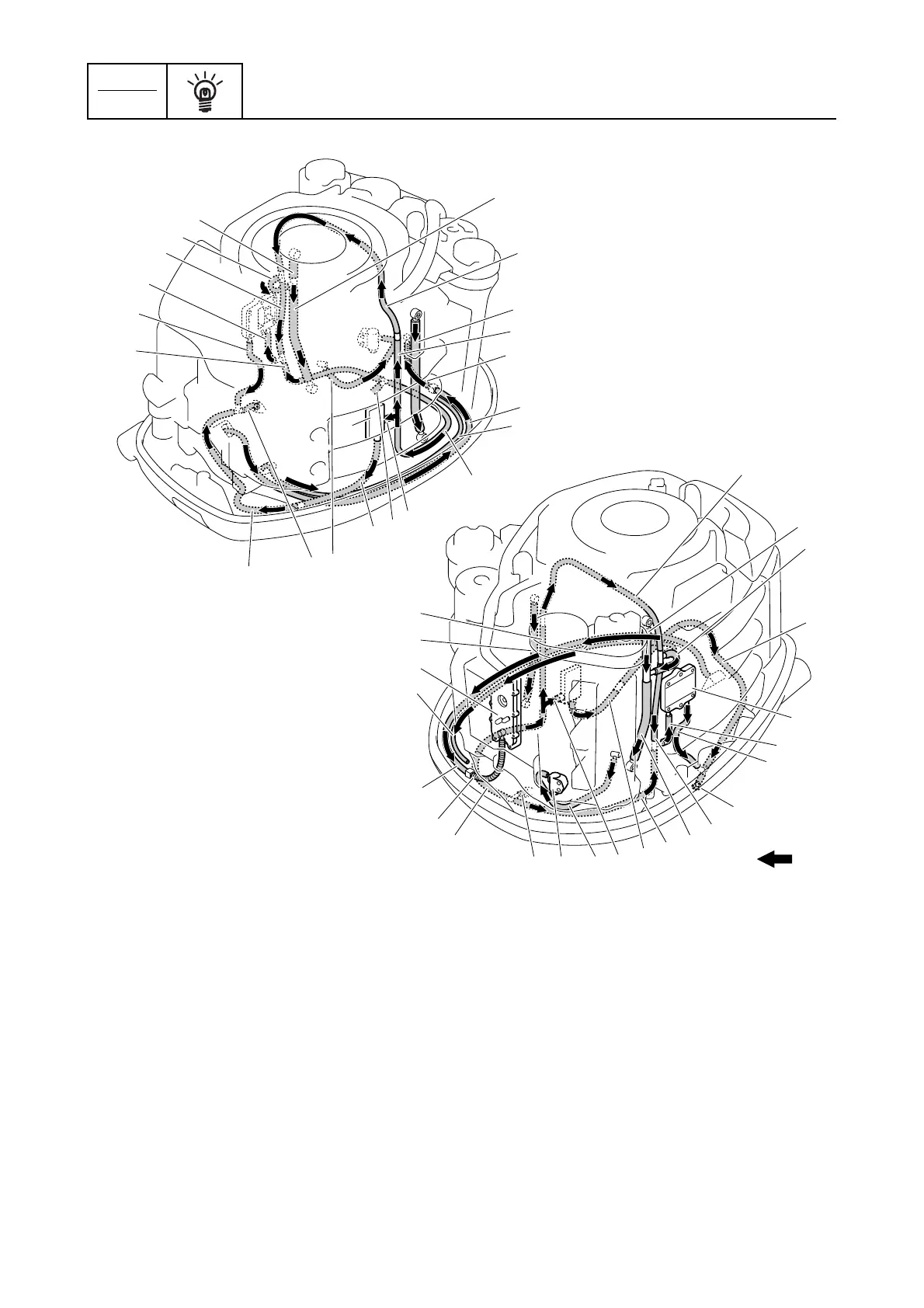

È Cooling water flow
1 Cooling water hose (cylinder block to joint)
2 Cooling water hose (joint to joint)
3 Cooling water hose (joint to joint)
4 Cooling water hose (joint to joint)
5 Cooling water hose (joint to joint)
6 Cooling water hose (joint to joint)
7 Cooling water hose (joint to joint)
8 Cooling water hose (thermostat cover
[STBD] to joint)
9 Cooling water hose (joint to cylinder block)
0 Cooling water hose (thermostat cover
[PORT] to cylinder block)
A Cooling water hose (joint to Rectifier
Regulator)
B Cooling water hose (Rectifier Regulator to
joint)
C Cooling water hose (joint to fuel cooler)
D Cooling water hose (fuel cooler to joint)
E Cooling water hose (joint to joint)
F Cooling water pilot hose (joint to cooling
water pilot hole)
G Cooling water hose (cylinder head [STBD]
to adapter [water pressure sensor])
H Flushing hose (flushing hose adapter to
joint)
2
C
D
1
0
6
I
H
J
5
9
B
3
A
8
7
4
G
E
F
b
c
9
3
I
2
1
H
J
0
6
4
B
A
E
7
8
5
G
C
D
d
e
È
a
To Next Page
