3-7
RIG
GING
Rigging information
TIP:
• Make sure that the distance g is equal to
distance h.
• If the boat has a V shape hull, the center
outboard motor should have longer tran-
som height than the outboard motors on
both sides.
• For the distance (T1), see “External dimen-
sions” (3-2).

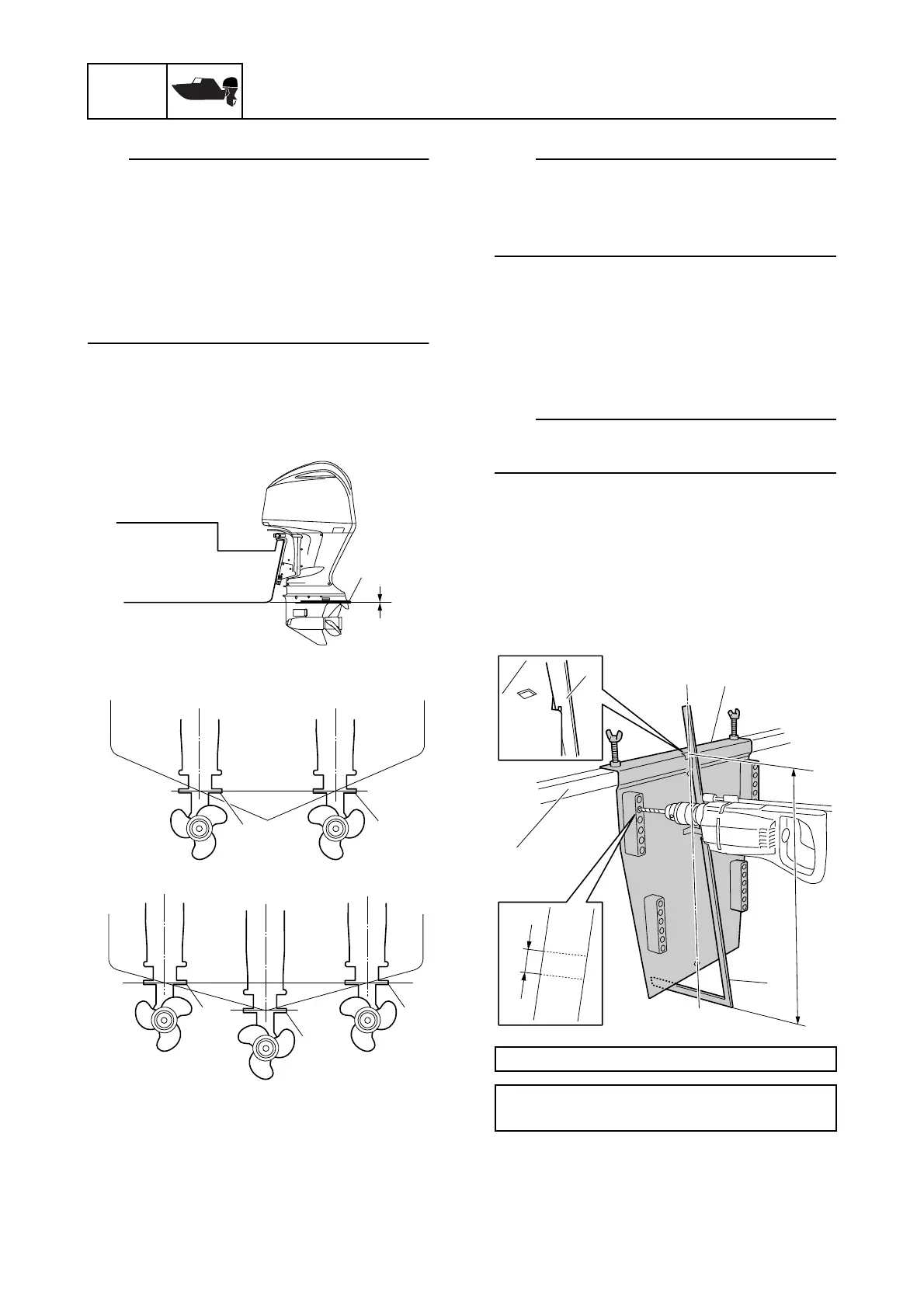

2. Adjust the position of the outboard motor
so that the height of the anti-cavitation
plate k is equal to or slightly above the
bottom of the boat transom.
È Single outboard motor installation
É Twin outboard motor installation
Ê Triple outboard motor installation
TIP:
This mounting height information is for refer-
ence only. It is impossible to provide com-
plete instructions for every possible boat and
outboard motor combination.
3. Adjust the height of the scale m to the
transom height (H), and place it on the
special service tool 1. Secure the spe-
cial service tool 1 to the boat transom
n using screws or vises.
TIP:
For the transom height (H), see “External
dimensions” (3-2).
4. When the outboard motor mounting posi-
tion has been determined, mark the best-
suited 4 symmetrical mounting holes in
the boat transom n. Drill the mounting
holes perpendicular to the surface of the
boat transom using a 13.0 mm (0.5 in)
drill bit.
k
È
k
k
É
k k
k
Ê
Drilling plate 1: 90890-06783
Mounting hole diameter p:
13.0 mm (0.5 in) or more
H
C/L
m
p
1
m
n
