Yamaha F200C - Installing the Reservoir; Installing the Tilt Ram

69J1D11
7-40
1
2
3
4
5
6
7
8
9
NOTE:
Align the armature shaft with the recess in
the joint.

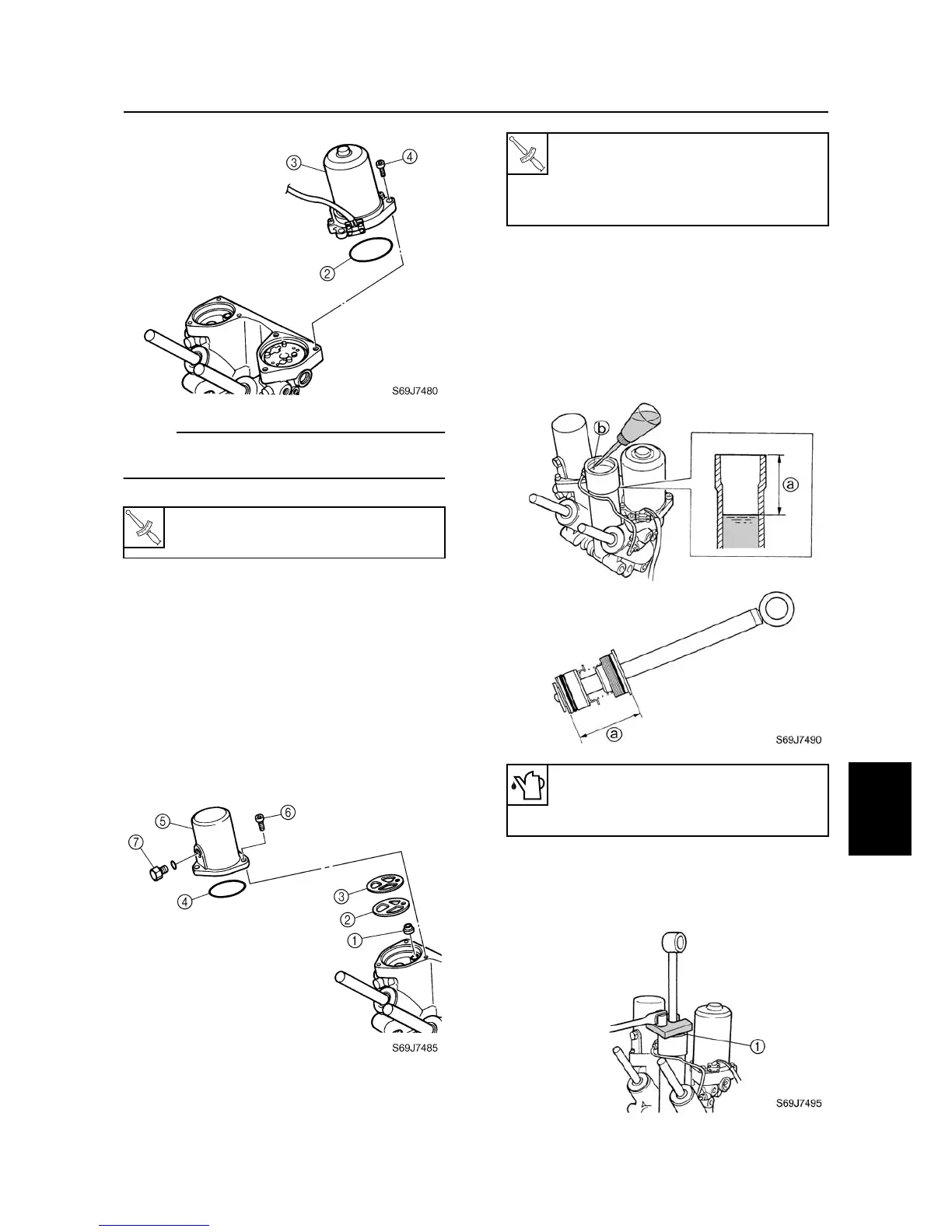

Installing the reservoir
1. Install the spacer
1
, filter
2
and sheet
3
to the cylinder block.
2. Install the new O-ring
4
and reservoir
5
, and then tighten the bolts
6
to the
specified torque.
3. Install the reservoir cap
7
, and then
tighten it to the specified torque.
Installing the tilt ram
1. Fill the tilt cylinder with the recommended
fluid to the correct level
a
as shown.
2. Add a small amount of the recommended
fluid through the cylinder block hole
b
as
shown.
3. Install the tilt piston assembly into the tilt
cylinder, and then tighten the tilt cylinder
end screw
1
to the specified torque.
T
R
.
.
PTT motor bolt
4
:
18 N·m (1.8 kgf·m, 13 ft·lb)
T
R
.
.
Reservoir bolt
6
:
18 N·m (1.8 kgf·m, 13 ft·lb)
Reservoir cap
7
:
7 N·m (0.7 kgf·m, 5.1 ft·lb)
Recommended power trim and tilt
fluid:
ATF Dexron
II
Power trim and tilt unit
