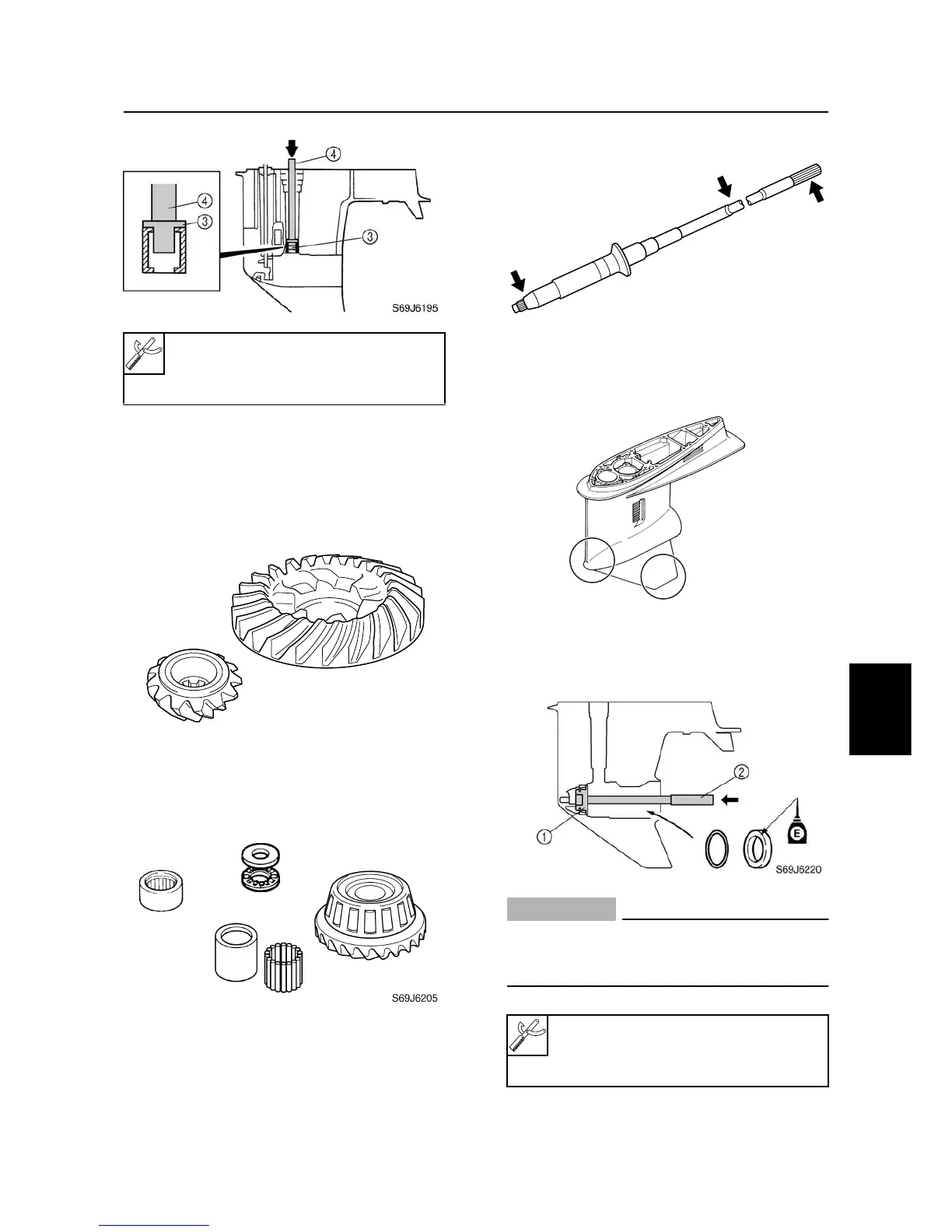

Checking the pinion and forward
gear
1. Check the teeth of the pinion, and the
teeth and dogs of the forward gear for
cracks or wear. Replace if necessary.
Checking the bearings
1. Check the bearings for pitting or rum-
bling. Replace if necessary.
Checking the drive shaft
1. Check the drive shaft for bends or wear.
Replace if necessary.
Checking the lower case
1. Check the skeg and torpedo for cracks or
damage. Replace if necessary.
Assembling the lower case
1. Install the original shim(s) and taper roller
bearing outer race.
CAUTION:
Add or remove shim(s), if necessary,
when replacing the forward gear or lower
case.
Roller bearing installer/remover
3
:
YB-06432
Driver handle
4
: YB-06071
S69J6200
Taper roller bearing installer
1
:
YB-06431
Driver handle
2
: YB-06071
S69J6210
S69J6215
È
Drive shaft and lower case (regular rotation model)
