BRKT
Bracket unit
7-19
69J1D11

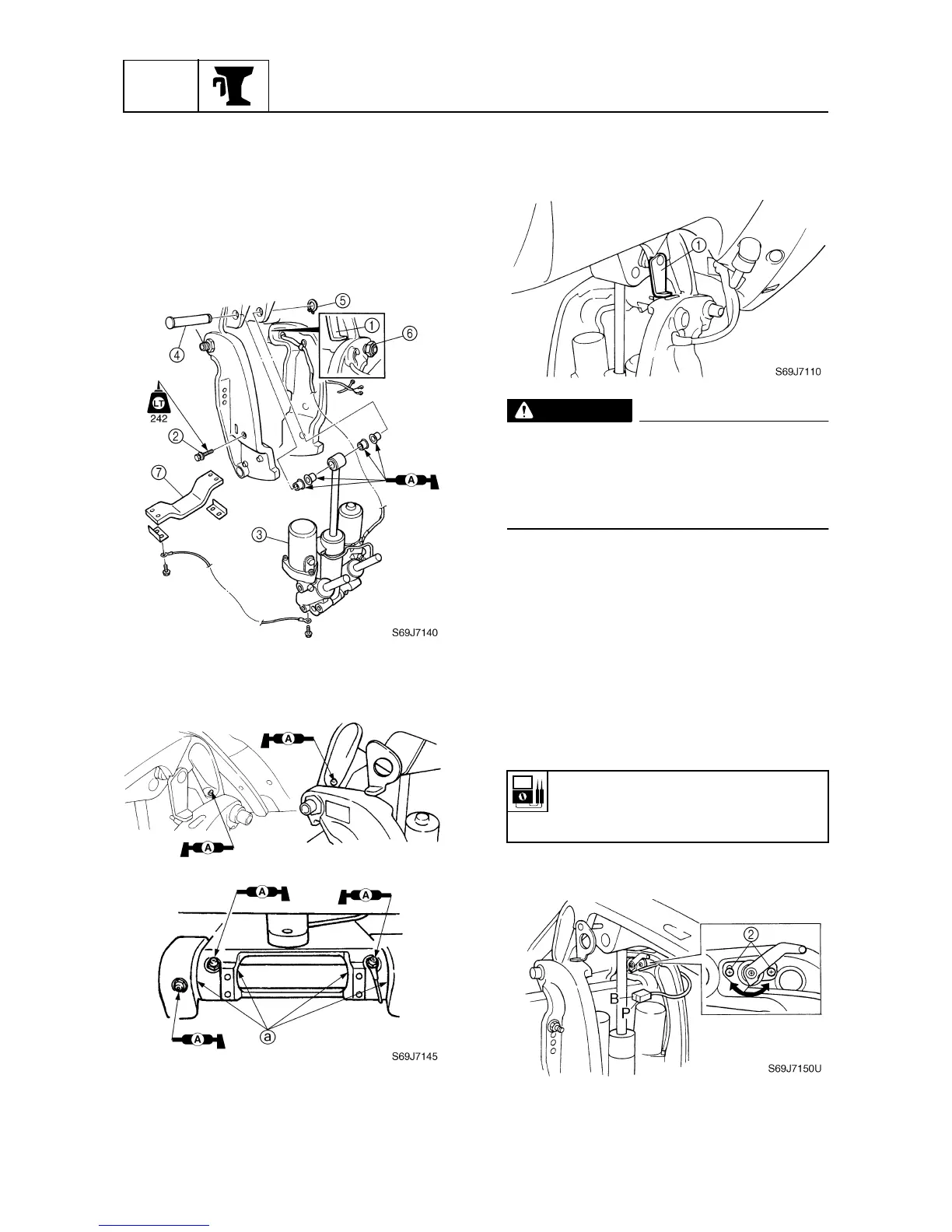

3. Install the tilt ram upper end into the
swivel bracket with the shaft
4
and cir-
clip
5
.
4. Tighten the self-locking nut
6
to the
specified torque.
5. Remove the anode
7
.
6. Inject grease into all grease nipples until
grease comes out from the bushings
a
.
Adjusting the trim sensor
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
2. Loosen the cam screws
2
.
3. Adjust the position of the trim sensor,
and then tighten the screws
2
finger
tight.
4. Fully tilt the outboard motor down.
5. Measure the trim sensor resistance.
Repeat steps 1–5 if out of specification.
6. Tighten the screws
2
.
Trim sensor resistance:
Pink (P) – Black (B)
9–11
Ω
at 20 °C (68 °F)
