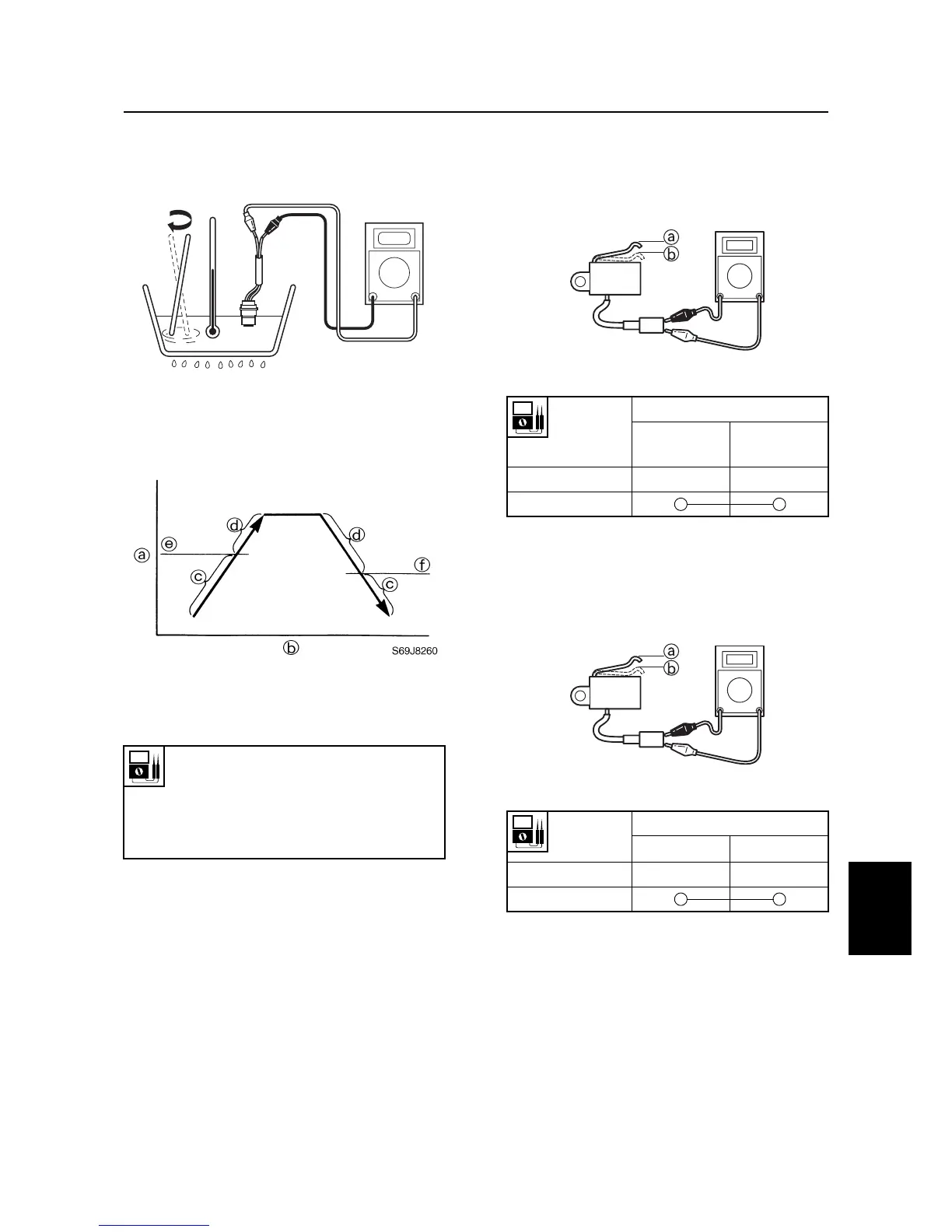

Checking the thermoswitch
1. Place the thermoswitch in a container of
water and slowly heat the water.
2. Check the switch for continuity at the
specified temperatures. Replace if out of
specification.
a
Temperature
b
Time
c
No continuity
d
Continuity
Checking the shift cut switch
1. Check the shift cut switch for continuity.
Replace if there is no continuity.
Checking the neutral switch
1. Check the neutral switch for continuity.
Replace if there is no continuity.
Thermoswitch continuity
temperature:
Pink (P) – Black (B)
e
: 84–90 °C (183–194 °F)
f
: 68–82 °C (154–179 °F)
S69J8250
Switch
position
Lead color
Blue/yellow
(L/Y)
Black (B)
Free
a
Push
b
Switch
position
Lead color
Brown (Br)
Black (B)
Free
a
Push
b
S69J8270
S69J8270
Ignition and ignition control system
