69J1D11
5-26
1
2
3
4
5
6
7
8
9

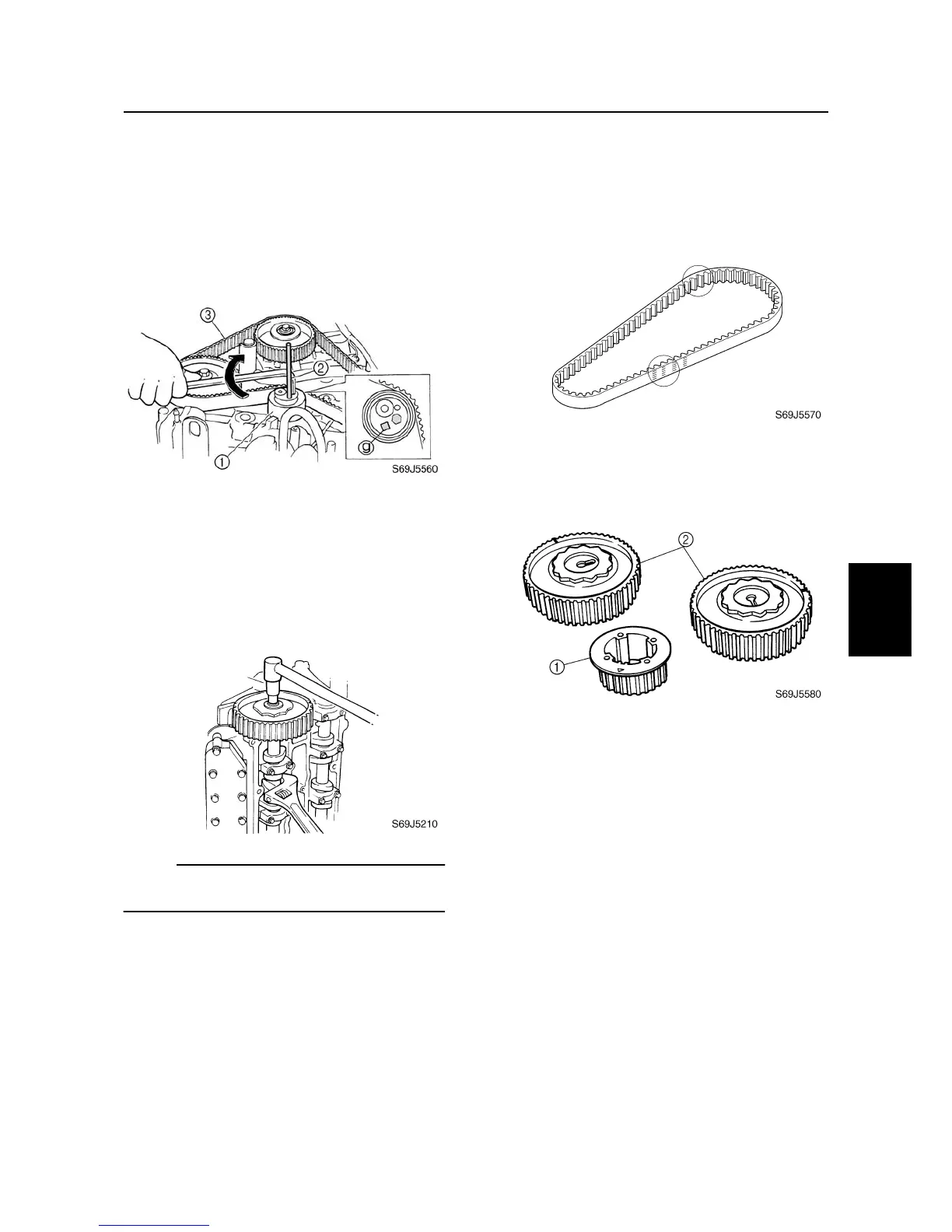

2. Using a hexagon wrench, turn the timing
belt tensioner
1
clockwise to push the
timing belt, increase strength gradually,
and then insert a ø5.0 mm (0.2 in) pin
2
into the hole
g
.
3. Remove the timing belt
3
from the
driven sprocket side.
4. Remove the pin and timing belt ten-
sioner.
5. Remove the drive sprocket and plate.
6. Remove the cylinder head covers, and
then remove the driven sprockets.
NOTE:
Hold the camshaft with a wrench, and be
careful not to damage the driven sprocket.
Checking the timing belt and
sprockets
1. Check the interior and exterior of the tim-
ing belt for cracks, damage, or wear.
Replace if necessary.
2. Check the drive sprocket
1
and driven
sprockets
2
for cracks, damage, or
wear. Replace if necessary.
Power unit
