Yamaha F200C Service Manual

69J1D11
7-28
1
2
3
4
5
6
7
8
9

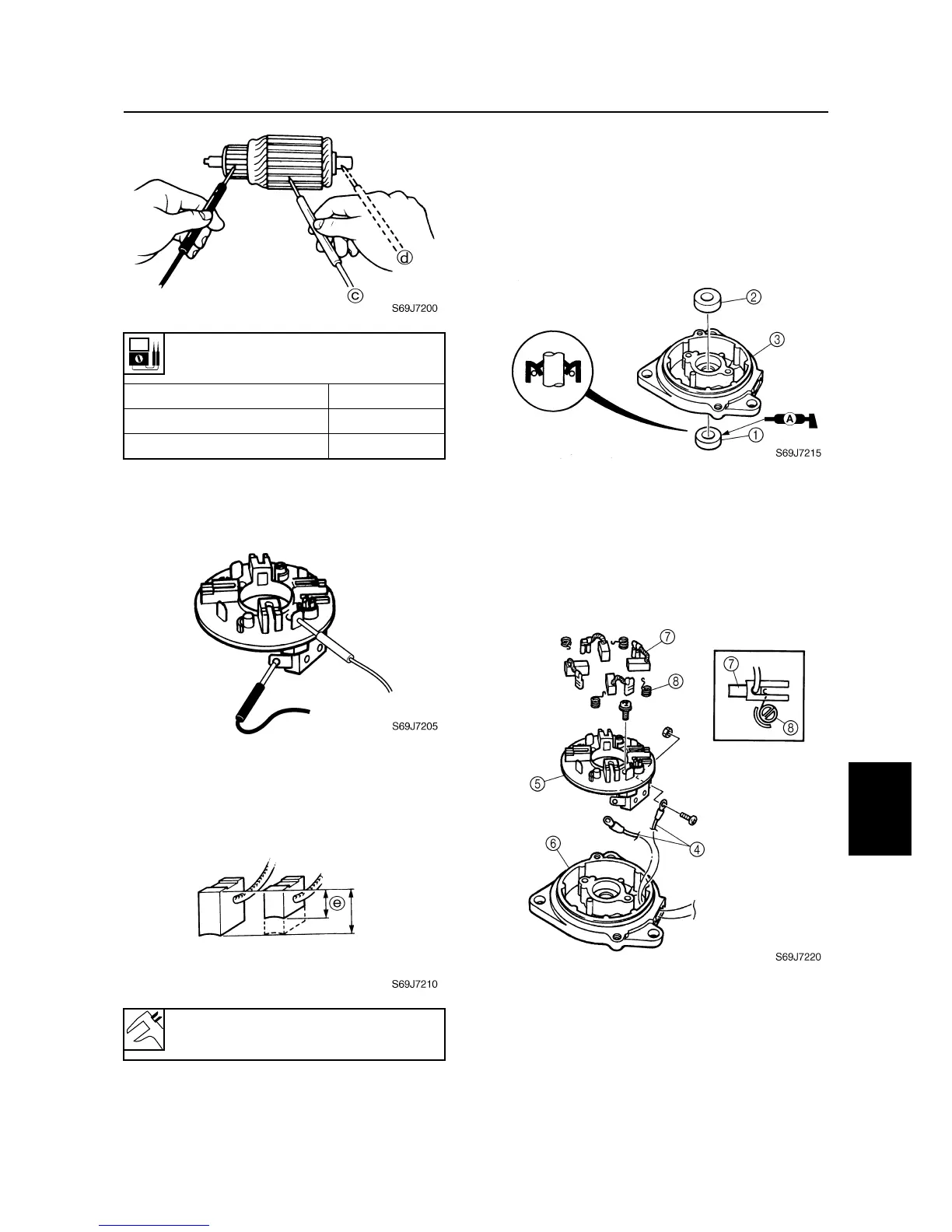

5. Check the circuit breaker for continuity.
Replace the brush holder if there is no
continuity.
6. Measure the brush length. Replace if out
of specification.
7. Check the base for corrosion or damage.
Replace if necessary.
8. Check the bearing for damage or wear.
Replace if necessary.
Assembling the power trim and tilt
motor
1. Install the new oil seal
1
and bearing
2
into the motor base
3
as shown.
2. Connect the PTT motor leads
4
to the
brush holder
5
and then install the brush
holder
5
to the motor base
6
.
3. Install the brushes
7
and springs
8
to
the brush holder as shown.
4. Install the bearing
9
to the armature
0
.
5. Push the brushes
7
into the holders,
and then install the armature
0
.
Armature coil continuity
Commutator segments
b
Continuity
Segment-laminations
c
No continuity
Segment-shaft
d
No continuity
Brush length limit
e
:
4.0 mm (0.16 in)
Power trim and tilt unit

Yamaha F200C Specifications

General

Max Power Output	200 hp
Prop Shaft Horsepower	200 hp
Full Throttle RPM Range	5000-6000 rpm
Alternator Output at W.O.T.	50A
Compression Ratio	10.3:1
Exhaust	Through Propeller
Lubrication	Wet Sump
Ignition	TCI (Transistor Controlled Ignition)
Starting System	Electric
Gear Ratio	1.86:1
Gear Shift	F-N-R
C.A.R.B. Rating	3-Star
Steering	Remote
Displacement	2785 cc
Fuel Induction System	Electronic Fuel Injection (EFI)
Recommended Engine Oil	Yamalube 4M
Recommended Fuel Filter	Yamaha Fuel/Water Separating Filter (10 Micron)
Engine Type	4-Stroke, DOHC, 16-Valve In-Line 4
Bore x Stroke	96.0 x 96.2 mm
Fuel	Unleaded gasoline (87 octane minimum)
Cooling	Water-cooled, Thermostatic Control
