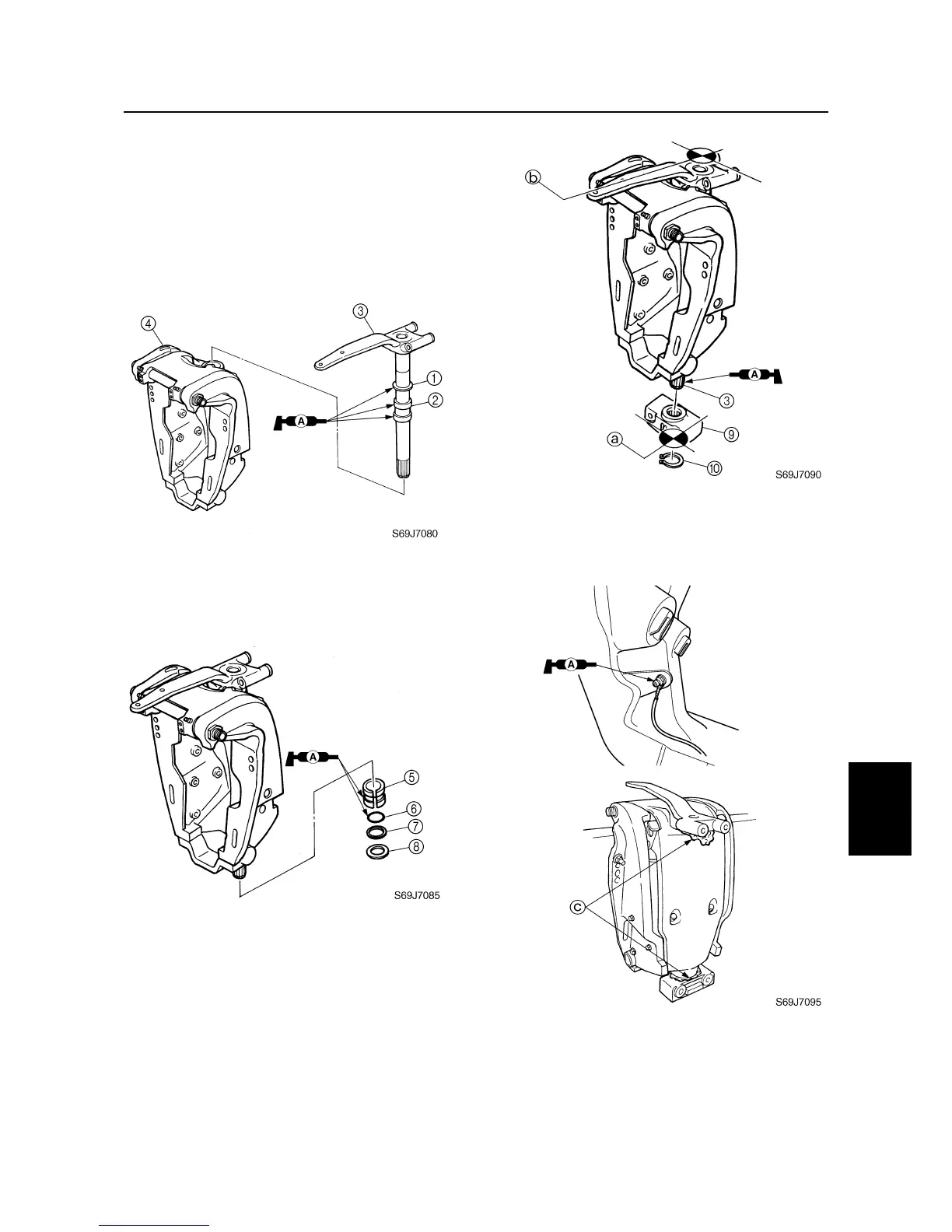

Installing the steering arm
1. Install the washer
1
and bushing
2
onto
the steering arm
3
.
2. Place the swivel bracket
4
in an upright
position, and then install the steering arm
onto the swivel bracket.
3. Install the bushing
5
, O-ring
6
, bushing
7
, and washer
8
onto the swivel
bracket.
4. Install the steering arm
3
into the steer-
ing yoke
9
by aligning the center
a
of
the yoke with the center
b
of the steer-
ing arm.
5. Install the circlip
0
.
6. Inject grease into the grease nipple until
grease comes out from both the upper
and lower bushings
c
.
Upper case, steering arm, swivel bracket and clamp brackets
