PM5D/PM5D-RH Owner’s Manual Reference section 239
Information shown
in the display
Function
menu
Global
functions
Output
functions
Input
functions
Appendices

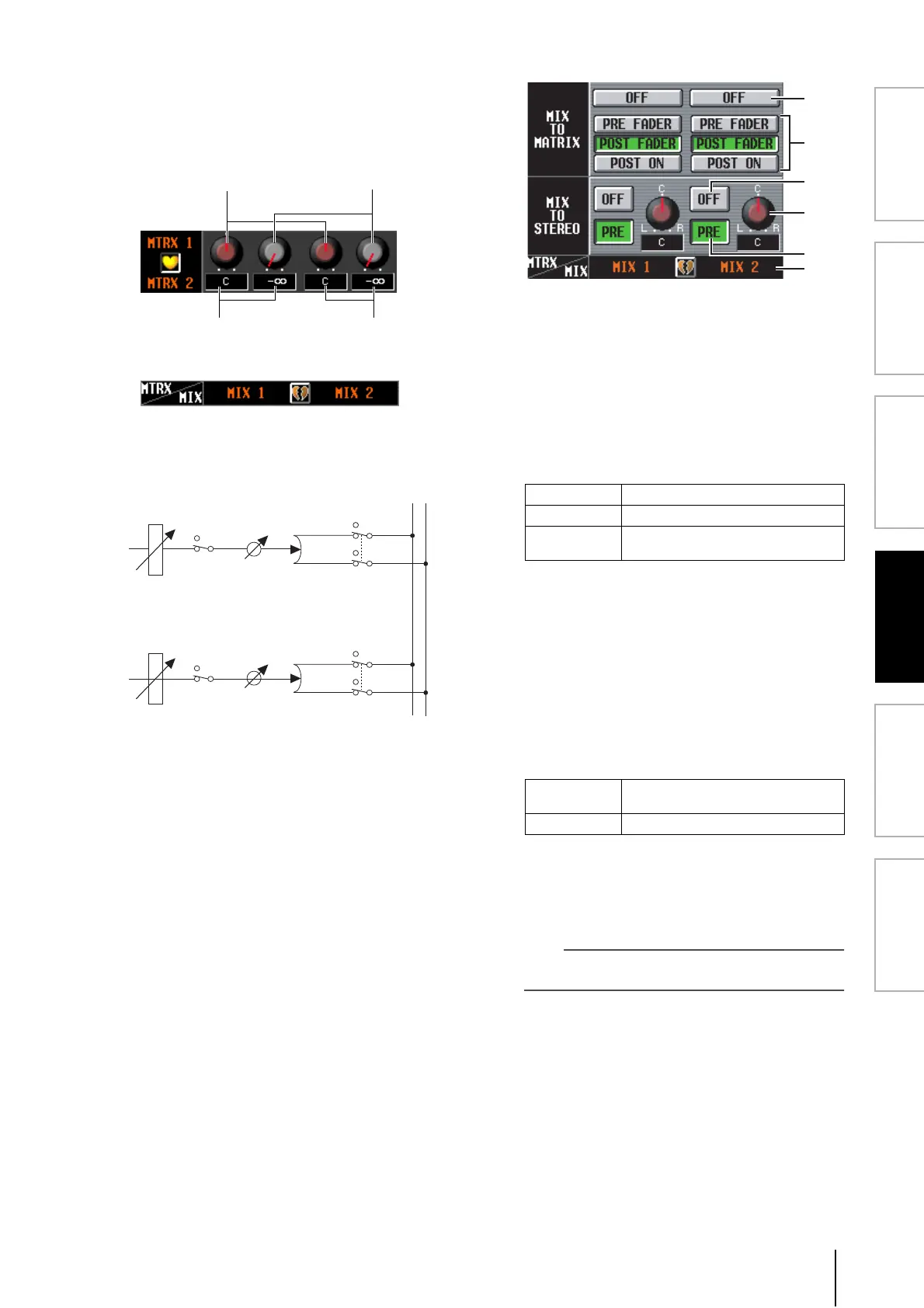

❏ If the MATRIX channels are paired
C MIX TO MATRIX ON/OFF
This button is an on/off switch for the signal sent from
each MIX channel or STEREO A/B channel to the
MATRIX buses. If this button is off, no signal will be
sent from that channel to the MATRIX buses.
D PRE FADER/POST FADER/POST ON
These buttons select the position from which the sig-
nal is sent from the MIX channel or STEREO A/B
channel to the MATRIX buses, from the following
choices.
This parameter applies to the signal sent from the cor-
responding channel to all MATRIX buses.
E MIX TO STEREO ON/OFF
This button is an on/off switch for the signal sent from
each MIX channel to the STEREO bus. If this button is
off, no signal will be sent from that channel to the STE-
REO bus.
F PRE/POST (Pre-on/Post-on)
This button selects the position from which the signal
is sent from the MIX channel to the STEREO bus, from
the following choices.
G PAN (MIX→STEREO pan)
This knob specifies the panning of the signal sent from
the MIX channel to the STEREO bus. If a MIX chan-
nel is selected in the SELECTED CHANNEL section,
the STEREO [PAN] encoder is linked with this knob.
Hint
If the source is a STEREO A/B channel, parameters 5 – 7
are not displayed.
H MIX channel, STEREO A/B channel
This area indicates the MIX channel or STEREO A/B
channel from which the signal is being sent. Paired
MIX channels are indicated by a heart symbol dis-
played between them. You can click this symbol to
enable/disable pairing.
PAN knobs
Adjust the panning of the signals
sent from the MIX channels and
STEREO A/B channels to each
pair of adjacent odd-numbered/
even-numbered MATRIX buses.
MIX channel 2
↓
MATRIX buses 1/2
MIX channel 1
↓
MATRIX buses 1/2
LEVEL knobs
Adjust the send level of
the signals sent from
the MIX channels and
STEREO A/B channels
to each MATRIX bus.
ON
ON
ON
ON
PAN
to MATRIX 1/2
LEVEL
……
MATRIX 1 MATRIX 2
FADER
MIX CHANNEL 1
ON
PAN
to MATRIX 1/2
LEVEL
FADER
MIX CHANNEL 2
ON
PRE FADER Immediately before the fader
POST FADER Immediately after the fader
POST ON
Immediately after the MIX [ON] key / STE-
REO [ON] key
PRE
Immediately before the MIX [ON] key
(immediately after the fader)
POST Immediately after the MIX [ON] key
4
3
7
8
5
6
