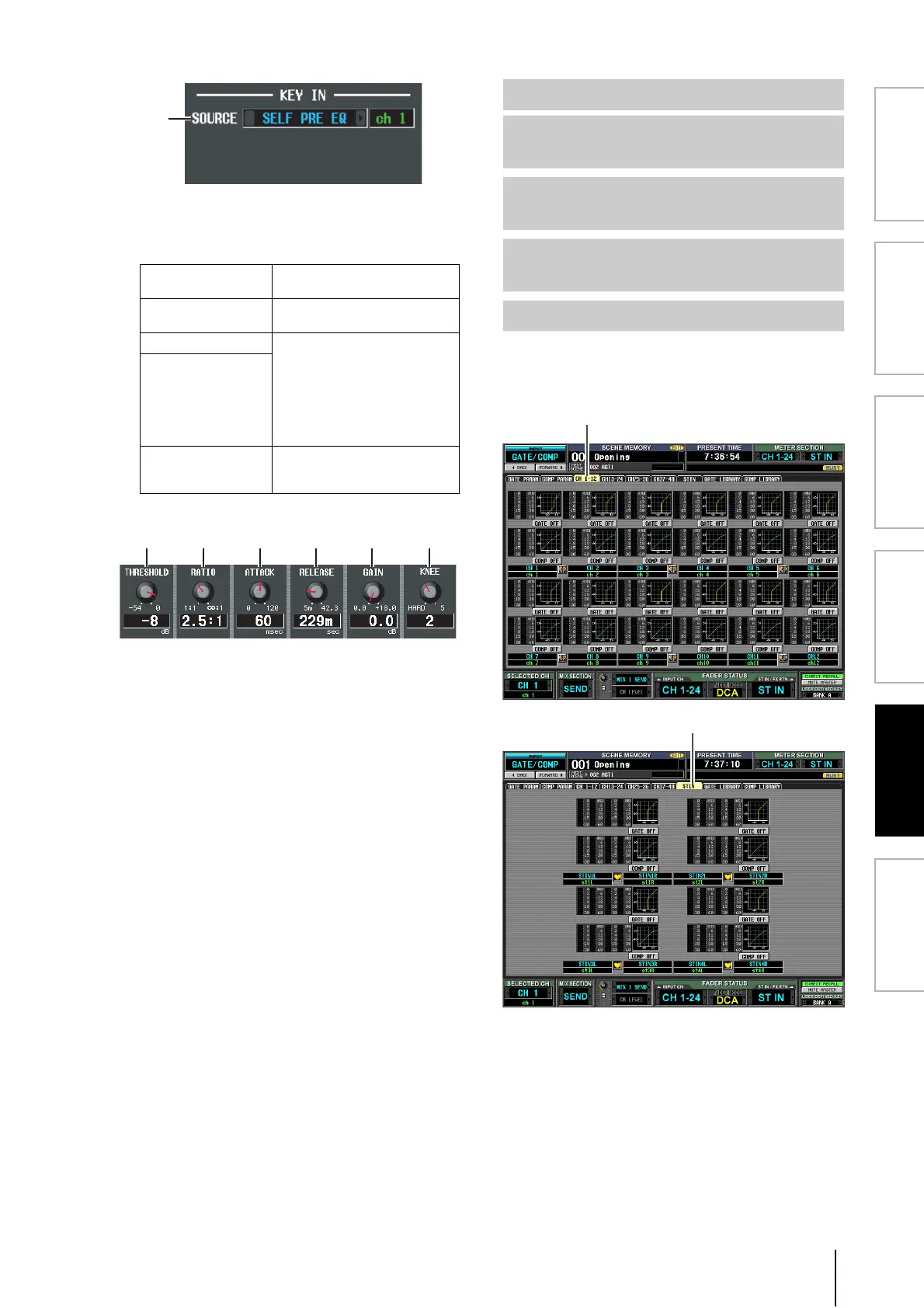

J KEY IN SOURCE
Select the desired key-in signal from the following
choices.
K THRESHOLD (Threshold level)
L RATIO
M ATTACK (Attack time)
N RELEASE (Release time)
O GAIN
P KNEE
These parameters are the same as in the OUTPUT
COMP function COMP PARAM screen (➥ p.230).
These screens list the gate/compressor settings for the input
channels. Here you can also copy gate/compressor settings
between input channels.
SELF PRE EQ
The pre-EQ signal of the currently
selected input channel
SELF POST EQ
The post-EQ signal of the currently
selected input channel
CH 1–48 POST EQ The post-EQ signal of the corre-
sponding input channel (however,
you can only choose channels
belonging to the same group,
within the seven groups CH1–8,
CH9–16, CH17–24, CH25–32,
CH33–40, CH41–48, and ST IN
1L/1R–4L/4R)
ST IN 1L/1R–4L/4R
POST EQ
MIX 21–24 OUT
The output signal of the corre-
sponding MIX channel immedi-
ately before the output attenuation
J
K L M N O P
CH 1-12 (Input channel 1–12) screen
CH 13-24 (Input channel 13–24)
screen
CH 25-36 (Input channel 25–36)
screen
CH 37-48 (Input channel 37–48)
screen
ST IN (ST IN channel) screen
CH 1-12
ST IN
