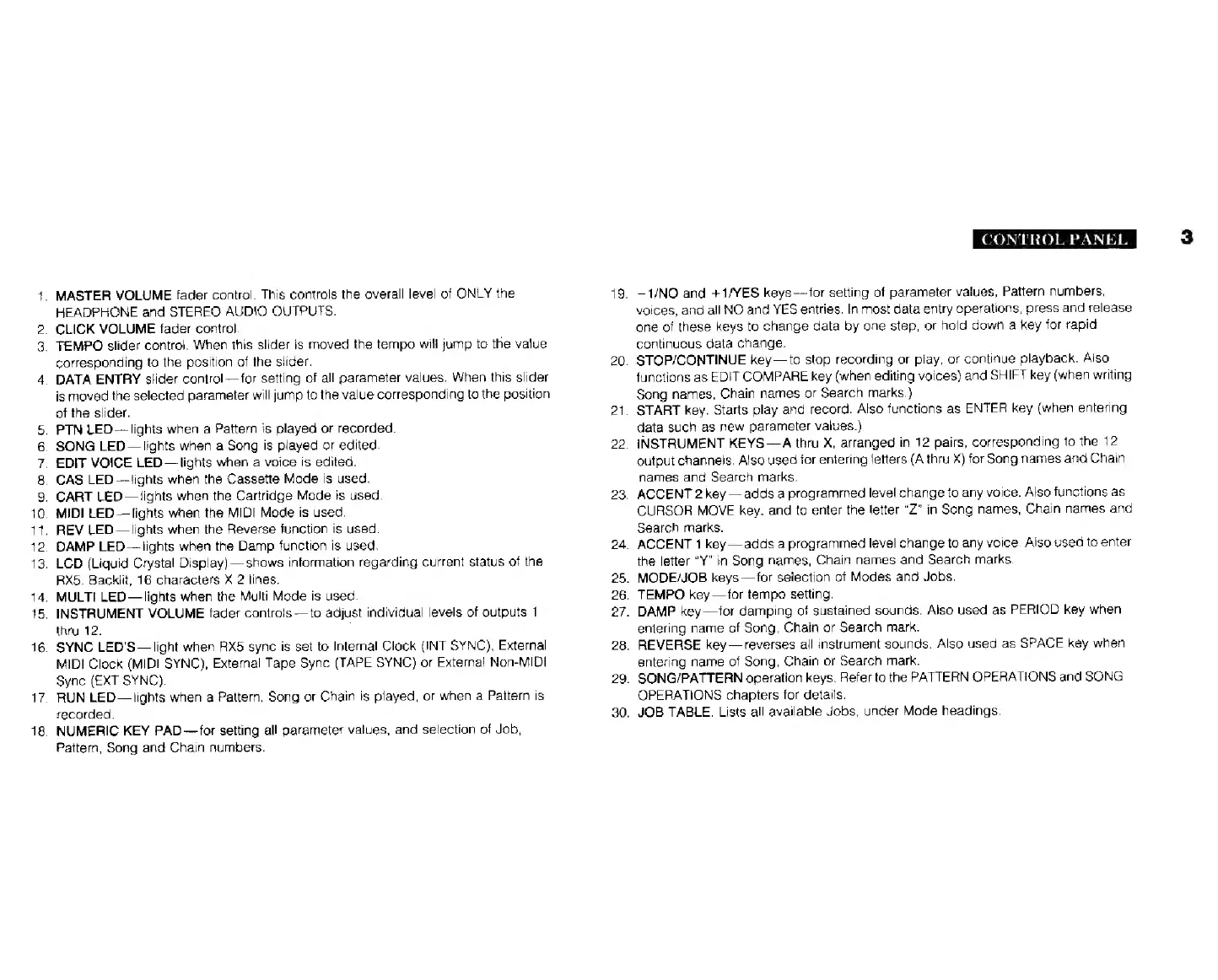

16.
17
18
. MASTER VOLUME fader control. This controls the overall level of ONLY the
HEADPHONE and STEREO AUDIO OUTPUTS.
CLICK VOLUME fader contro!
TEMPO slider control. When this slider is moved the tempo will jump to the value
corresponding to the position of the slider.
DATA ENTRY slider control —for setting of all parameter values. When this slider
is moved the selected parameter will jump to the value corresponding to the position
of the slider.
PTN LED — lights when a Pattern is played or recorded.
SONG LED — lights when a Song is played or edited.
EDIT VOICE LED — lights when a voice is edited.
CAS LED — lights when the Cassette Mode is used.
CART LED — lights when the Cartridge Mode is used
MIDI LED — lights when the MIDI Mode is used.
REV LED — lights when the Reverse function is used
DAMP LED — lights when the Damp function is used.
LCD (Liquid Crystal Display) — shows information regarding current status of the
RX5. Backlit, 16 characters X 2 lines.
. MULTI LED — lights when the Multi Mode is used.
. INSTRUMENT VOLUME fader controls —to adjust individual levels of outputs 1
thru 12.
SYNC LED'S — light when RX5 sync is set to Internal Clock (INT SYNC), External
MIDI Clock (MIDI SYNC), External Tape Sync (TAPE SYNC) or External Non-MIDI
Sync (EXT SYNC).
RUN LED — lights when a Pattern, Song or Chain is played, or when a Pattern is
recorded.
NUMERIC KEY PAD — Юг setting all parameter values, and selection of Job,
Pattern, Song and Chain numbers.
19.
20.
21.
22.
2З.
24.
25.
26.
27.
28.
29.
30.
CONTROL PANEL
—1/NO and +1/YES keys —for setting of parameter values, Pattern numbers,
voices, and all NO and YES entries. In most data entry operations, press and release
one
of
these
keys
to
change
data
by
one
step,
or
hold
down
a
key
for
rapid
continuous data change.
STOP/CONTINUE key— to stop recording or play, or continue playback. Also
functions as EDIT COMPARE key (when editing voices) and SHIFT key (when writing
Song names, Ghain names or Search marks.)
START key. Starts play and record. Also functions as ENTER key (when entering
data such as new parameter values.)
INSTRUMENT KEYS —A thru X, arranged in 12 pairs, corresponding to the 12
output
channels.
Also
used
for
entering
letters
(A
thru
X)
for
Song
names
and
Chain
names and Search marks.
ACCENT 2 key — adds a programmed level change to any voice. Also functions as
CURSOR MOVE key, and to enter the letter “27 in Song names, Chain names and
Search marks.
ACCENT
1
key—
adds
a
programmed
level
change
to
any
voice.
Also
used
to
enter
the
letter
"Y"
in
Song
names,
Chain
names
and
Search
marks
MODE/JOB keys —for selection of Modes and Jobs.
TEMPO key —for tempo setting.
DAMP key —1or damping of sustained sounds. Also used as PERIOD key when
entering name of Song, Chain or Search mark.
REVERSE key — reverses all instrument sounds. Also used as SPACE key when
entering name of Song, Chain or Search mark.
SONG/PATTERN operation keys. Refer to the PATTERN OPERATIONS and SONG
OPERATIONS chapters for details.
JOB TABLE. Lists all available jobs, under Mode headings.
3
