Model Size Dimensions in inches (mm) Weight Heat Loss (W)
Voltage
CIMR- Lbs. Heat-
Class
V7*U MV
HP W H D W1 H1 H2 W2 H3 H4 d
(kg) sink Unit Total
Fig.
20P1 A001 1/8 2.68 5.83 2.99 2.20 4.65 0.20 0.24 5.04 0.79 M4 1.55 3.7 9.3 13.0 1
(68) (148) (76) (56) (118) (5) (6) (128) (20) (0.7)
20P2 A002 1/4 2.68 5.83 2.99 2.20 4.65 0.20 0.24 5.04 0.79 M4 1.55 7.7 10.3 18.0 1
230V (68) (148) (76) (56) (118) (5) (6) (128) (20) (0.7)
3-phase 20P4 A003 1/2 2.68 5.83 4.25 2.20 4.65 0.20 0.24 5.04 0.79 M4 2.20 15.8 12.3 28.1 1
(68) (148) (108) (56) (118) (5) (6) (128) (20) (1.0)
20P7 A005 1 2.68 5.83 5.04 2.20 4.65 0.20 0.24 5.04 0.79 M4 2.65 28.4 16.7 45.1 1
(68) (148) (128) (56) (118) (5) (6) (128) (20) (1.2)
* 230/460V class 7.5/10 HP drives can be used as “IP00” if the top and bottom covers are removed.

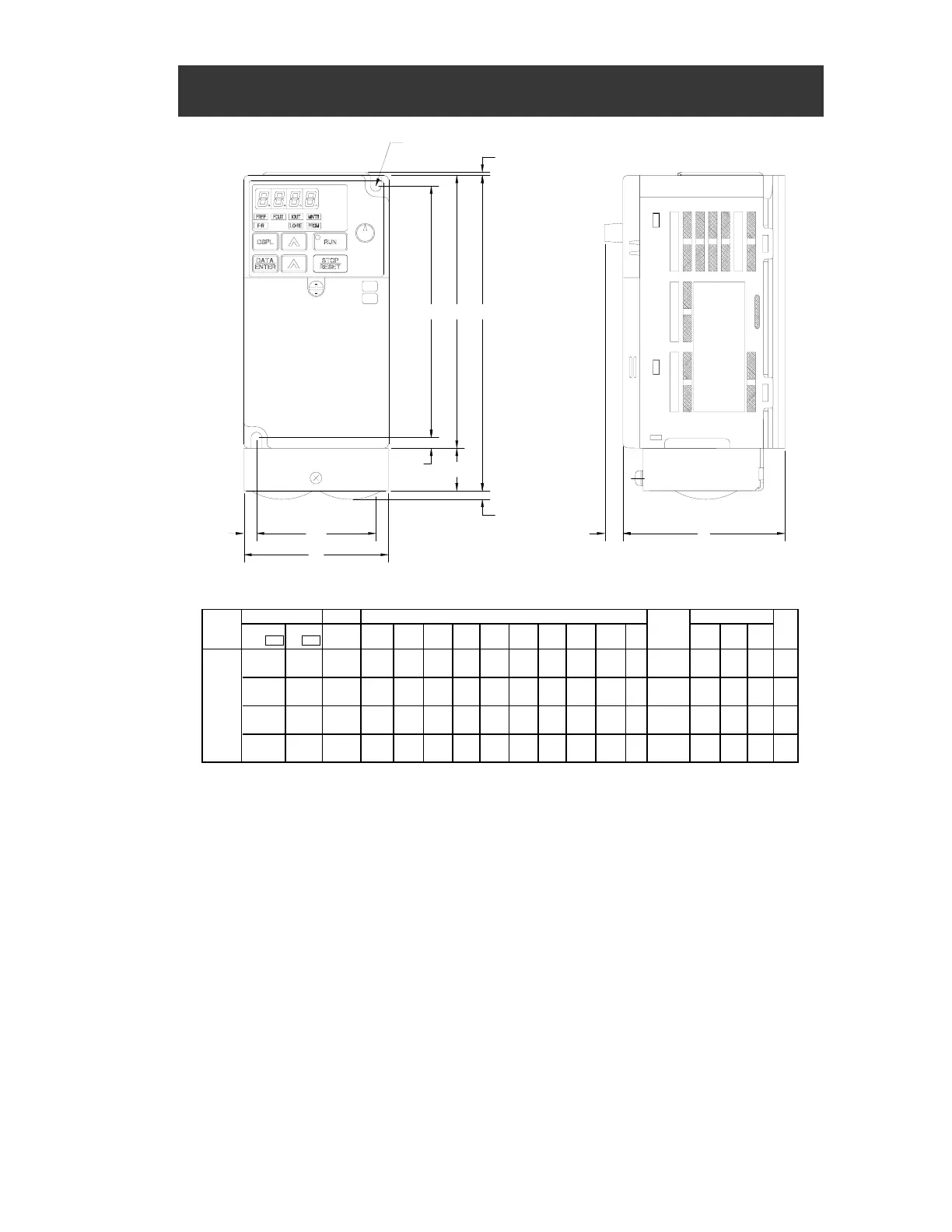

GPD 315/V7 Enclosed wall mounted type (NEMA 1)
Fig. 1
When drives include network communications option board, add 1.5" to drive depth.
