A5-2

(1.5)

0.06

(4.0)

0.16

H3H1

4-d

(8.5)

0.33

Model Size Dimensions in inches (mm) Weight Heat Loss (W)

Voltage

CIMR- Lbs. Heat-

Class

V7*U MV

HP W H D W1 H1 H2 W2 H3 H4 d

(kg) sink Unit Total

Fig.

21P5 A008 2 4.25 5.83 5.16 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.53 53.7 19.1 72.8 2

(108) (148) (131) (96) (118) (5) (6) (128) (20) (1.6)

230V 22P2 A011 3 4.25 5.83 5.51 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 60.4 34.4 94.8 2

3-phase (108) (148) (140) (96) (118) (5) (6) (128) (20) (1.7)

23P7 A017 5 5.51 5.83 5.63 5.04 4.65 0.20 0.24 5.04 0.79 M4 5.30 96.7 52.4 149.1 2

(140) (148) (143) (128) (118) (5) (6) (128) (20) (2.4)

40P2 B001 1/2 4.25 5.83 3.62 3.78 4.65 0.20 0.24 5.04 0.79 M4 2.65 9.4 13.7 23.1 2

(108) (148) (92) (96) (118) (5) (6) (128) (20) (1.2)

40P4 B002 3/4 4.25 5.83 4.43 3.78 4.65 0.20 0.24 5.04 0.79 M4 2.65 15.1 15.0 30.1 2

(108) (148) (110) (96) (118) (5) (6) (128) (20) (1.2)

460V 40P7 B003 1.5 4.25 5.83 5.51 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 30.3 24.6 54.9 2

3-phase (108) (148) (140) (96) (118) (5) (6) (128) (20) (1.7)

41P5 B005 2 4.25 5.83 6.14 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 45.8 29.9 75.7 2

(108) (148) (156) (96) (118) (5) (6) (128) (20) (1.7)

42P2 – 3 4.25 5.83 6.14 3.78 4.65 0.20 0.24 5.04 0.79 M4 3.75 50.5 32.5 83.0 2

(108) (148) (156) (96) (118) (5) (6) (128) (20) (1.7)

43P7 B009 5 5.51 5.83 5.63 5.04 4.65 0.20 0.24 5.04 0.79 M4 5.30 73.4 44.5 117.9 2

(140) (148) (143) (128) (118) (5) (6) (128) (20) (2.4)

* 230/460V class 7.5/10 HP drives can be used as “IP00” if the top and bottom covers are removed.

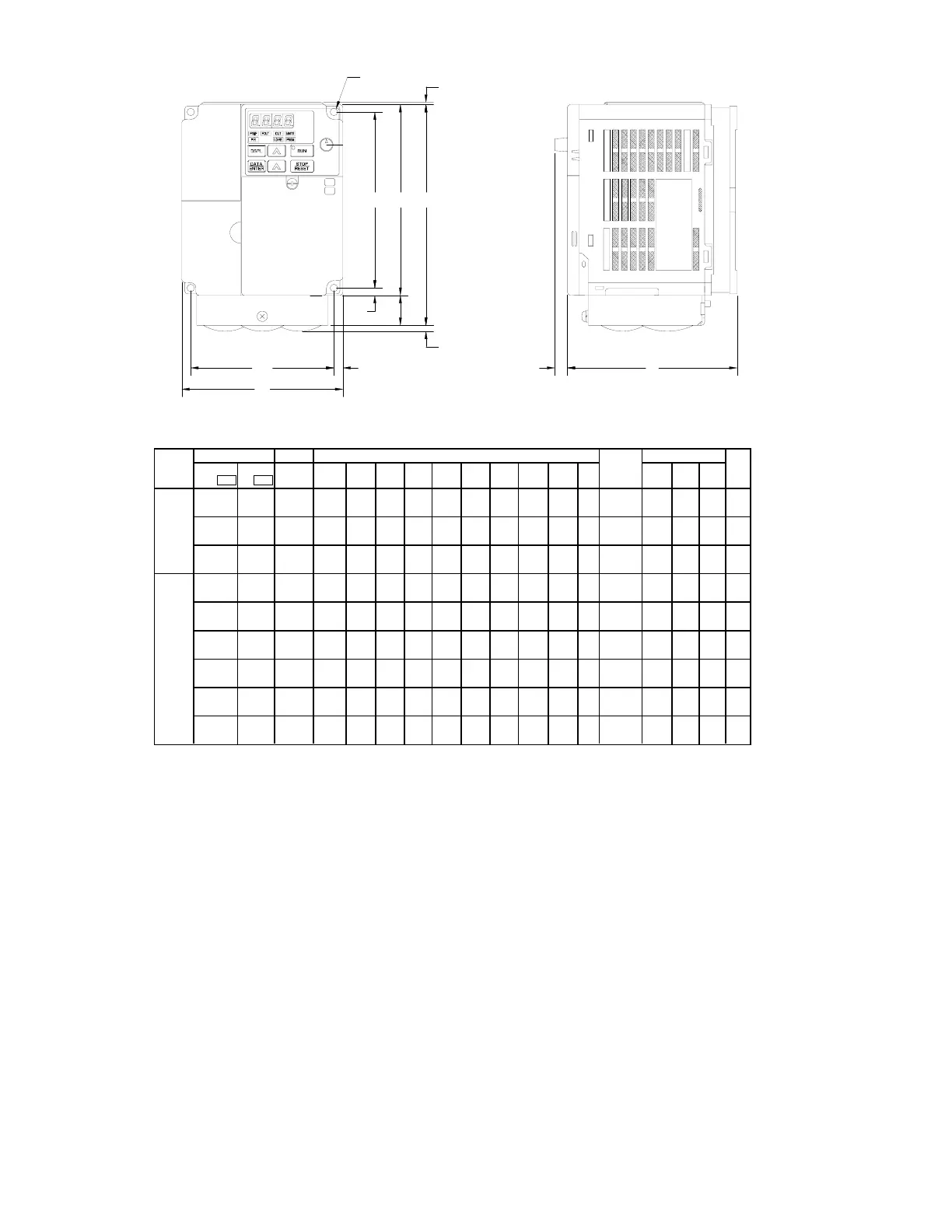

GPD 315/V7 Enclosed wall mounted type (NEMA 1)

Fig. 2

When drives include network communications option board, add 1.5" to drive depth.
