Model Size Dimensions in inches (mm) Weight Heat Loss (W)
Voltage
CIMR- Lbs. Heat-
Class
V7*U MV
HP W H D W1 H1 H2 W2 H3 H4 d
(kg) sink Unit Total
Fig.
25P5 A025 7.5 7.09 10.24 6.70 6.46 9.61 0.31 0.31 – – M5 11.45 170.4 79.4 249.8 3
230V (180) (260) (170) (164) (244) (8) (8) (5.2)
3-phase 27P5 A033 10 7.09 10.24 6.70 6.46 9.61 0.31 0.31 – – M5 11.89 219.2 98.9 318.1 3
(180) (260) (170) (164) (244) (8) (8) (5.4)
45P5 B015 7.5 7.09 10.24 6.70 6.46 9.61 0.31 0.31 – – M5 10.14 168.8 87.7 256.5 3
460V (180) (260) (170) (164) (244) (8) (8) (4.6)
3-phase 47P5 B018 10 7.09 10.24 6.70 6.46 9.61 0.31 0.31 – – M5 10.58 209.6 99.3 308.9 3
(180) (260) (170) (164) (244) (8) (8) (4.8)
* 230/460V class 7.5/10 HP drives can be used as “IP00” if the top and bottom covers are removed.

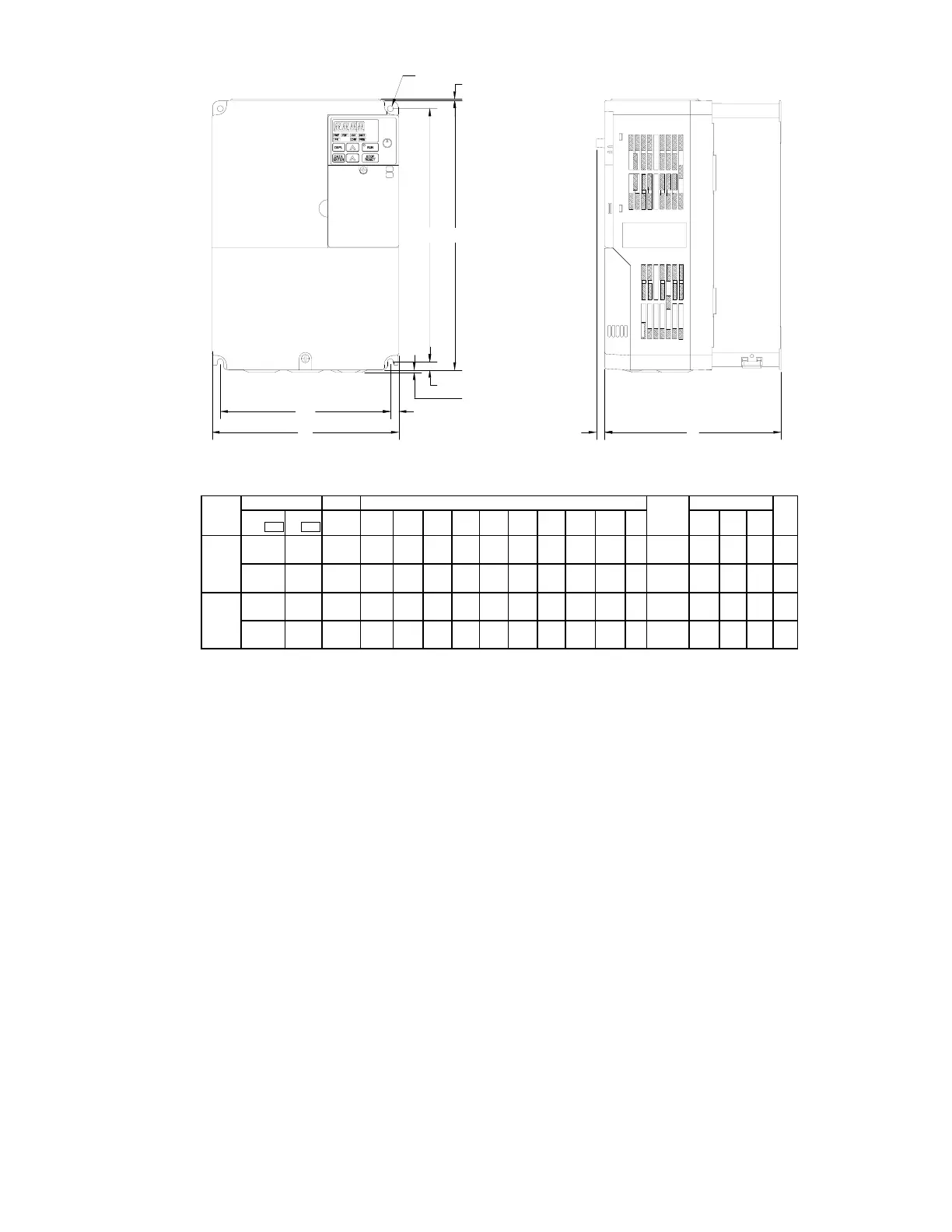

GPD 315/V7 Enclosed wall mounted type (NEMA 1)
Fig. 3
When drives include network communications option board, add 1.5" to drive depth.
