Model Size Dimensions in inches (mm) Weight
Voltage
CIMR- Lbs.
Class
V7*U
HP W H D W1 H1 H2 W2 d
(kg)
Fig.
20P1 .13 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 7.77 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.52)
20P2 0.25 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 7.77 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.52)
20P4 0.5 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 7.99 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.62)
230V 20P7 1 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.21 4
3-Phase (155) (192) (165) (141) (178) (7) (7) (5) (3.72)
21P5 2 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.03 4
(170) (254) (190) (158) (239) (6) (6) (5) (5.90)
22P2 3 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.25 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.00)
23P7 5 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.69 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.20)
40P2 .25 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.43 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.82)
40P4 .5 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.43 4
(155) (192) (165) (141) (178) (7) (7) (5) (3.82)
460V 40P7 1 6.10 7.56 6.50 5.55 7.01 0.28 0.28 0.20 8.65 4
3-Phase (155) (192) (165) (141) (178) (7) (7) (5) (3.92)
41P5 2 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.25 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.00)
42P2 3 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.25 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.00)
43P7 5 6.69 10.0 7.48 6.22 9.41 0.24 0.24 0.20 13.70 4
(170) (254) (190) (158) (239) (6) (6) (5) (6.20)

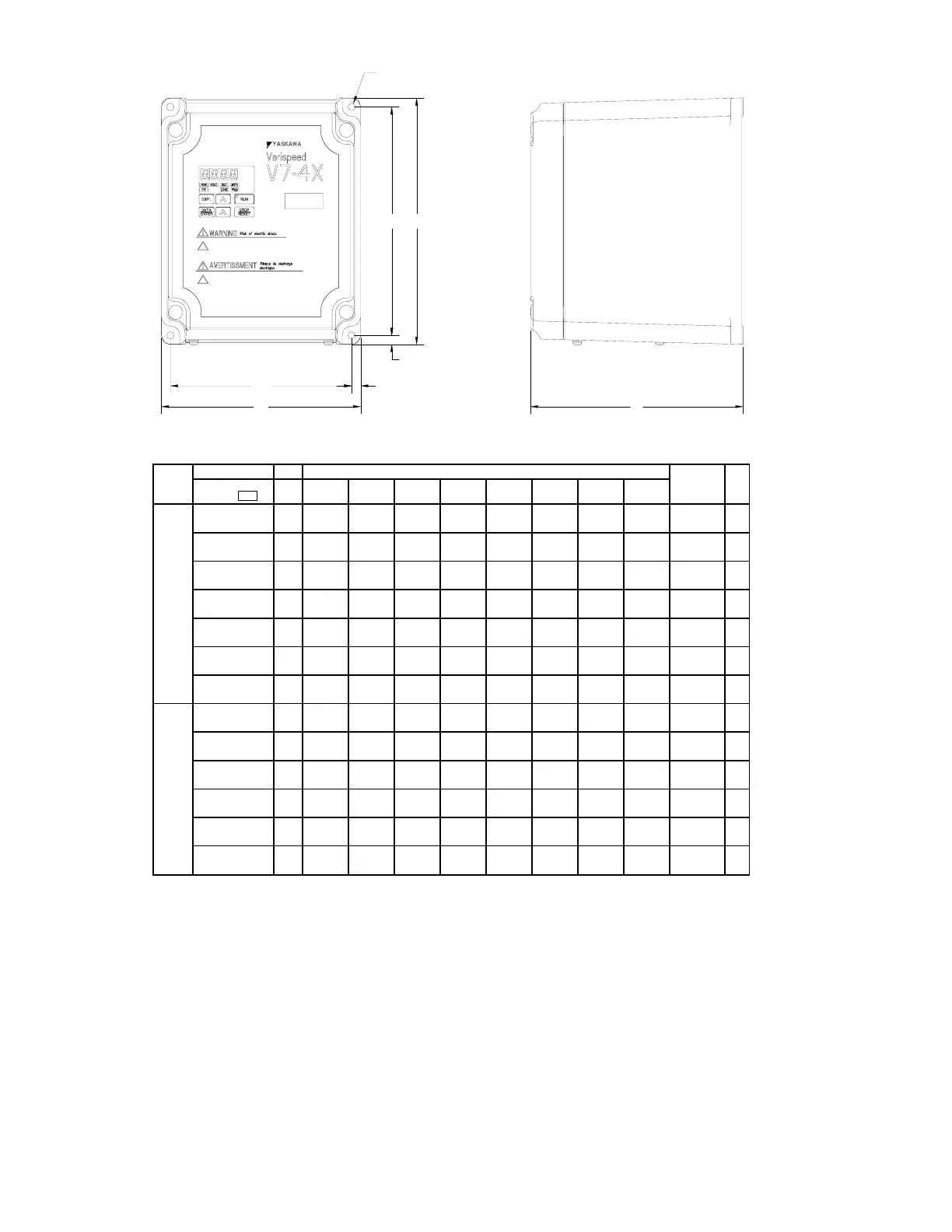

GPD 315/V7-4x Enclosed wall mounted type (NEMA 4)
Fig. 4
When drives include network communications option board, add 2.0" to drive depth.
