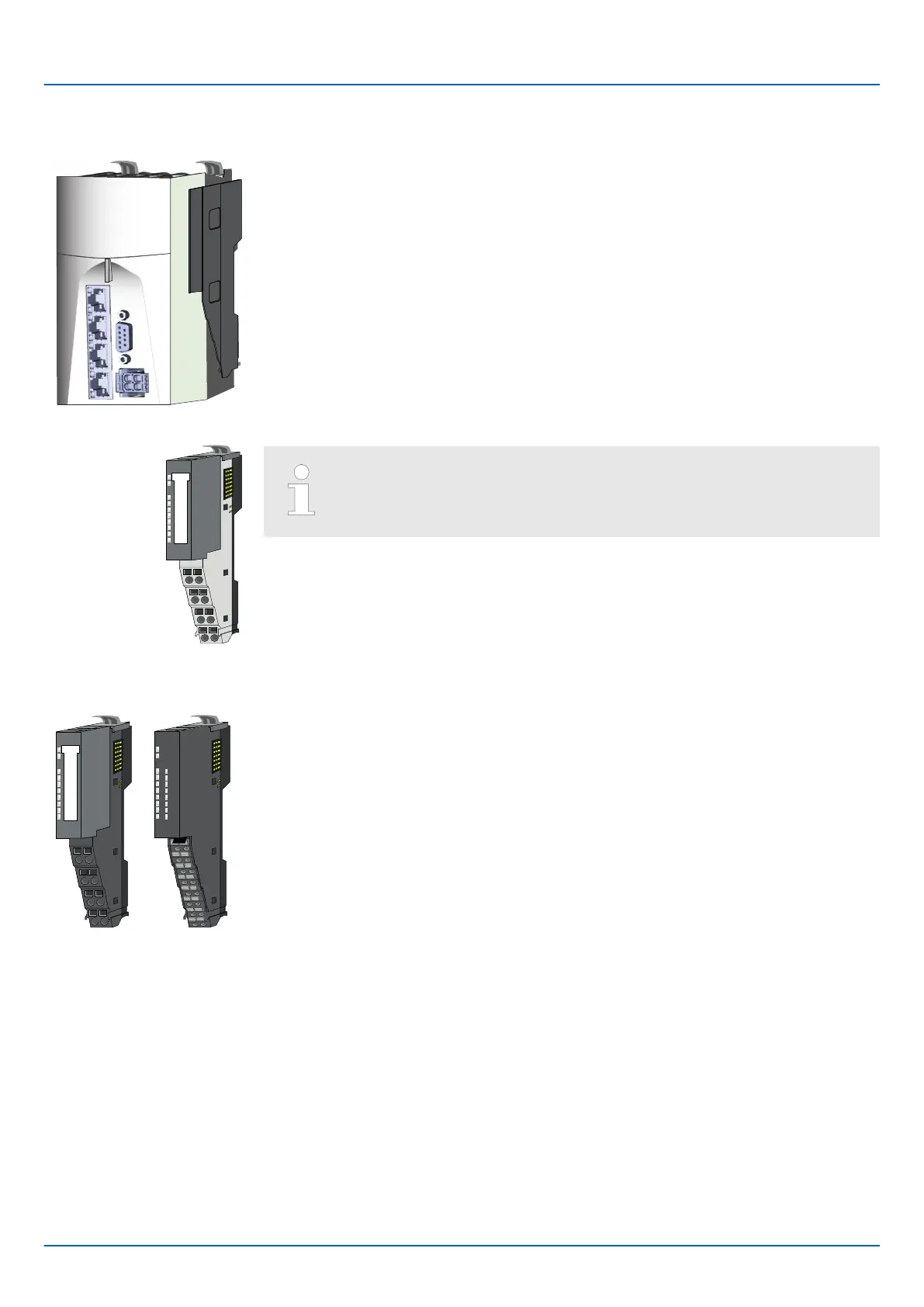

With the CPU iC921xM-x CPU electronics and power supply are integrated in one
housing. The CPU is programmed and configured with iCube Engineer from Yaskawa in
IEC 61131-3 . The CPU has a PCIe bus on the left for future expansions. On the right
side via the SliceBus you can connect System SLIO periphery modules from Yaskawa.
As head module via the integrated power module for power supply CPU electronic as well
as the electronic of the periphery modules, which are connected via the SliceBus. For the
connection of the power supply the CPU has a removable connector. To supply the power
section of the connected periphery modules, you must always plug in the power module
007-1AB00 - DC 24V 10A directly after the CPU.
When using System SLIO modules, you must always mount the power
module 007-1AB00 - DC 24V 10A, because the CPU does not provide a
power section supply due to the system.
The color-coded power modules are used when the CPU does not provide power section
supply, like the CPU iC921xM-x. These are also to be used if the power section supply of
the I/O level or the electronic power supply is no longer sufficient. Depending on the
power module used, you have the option of forming isolated groups. The power modules
are to be supplied externally with DC 24V. Each power module has over voltage and
reverse polarity protection.
The periphery modules are available in the following 2 versions, whereby of each the
electronic part can be replaced with standing wiring:
n 8x periphery module for a maximum of 8 channels.
n 16x periphery module for a maximum of 16 channels.
CPU iC921xM-x
Power modules
Periphery modules
iC9200 Series
Basics and mounting
System conception > Components
HB700 | CPU | PMC921xEx | en | 23-06 11
