YASKAWA MotionSuite MP940 User Manual

MotionSuite™ MP940 Machine Controller Hardware Manual Section 6: Digital I/O
40

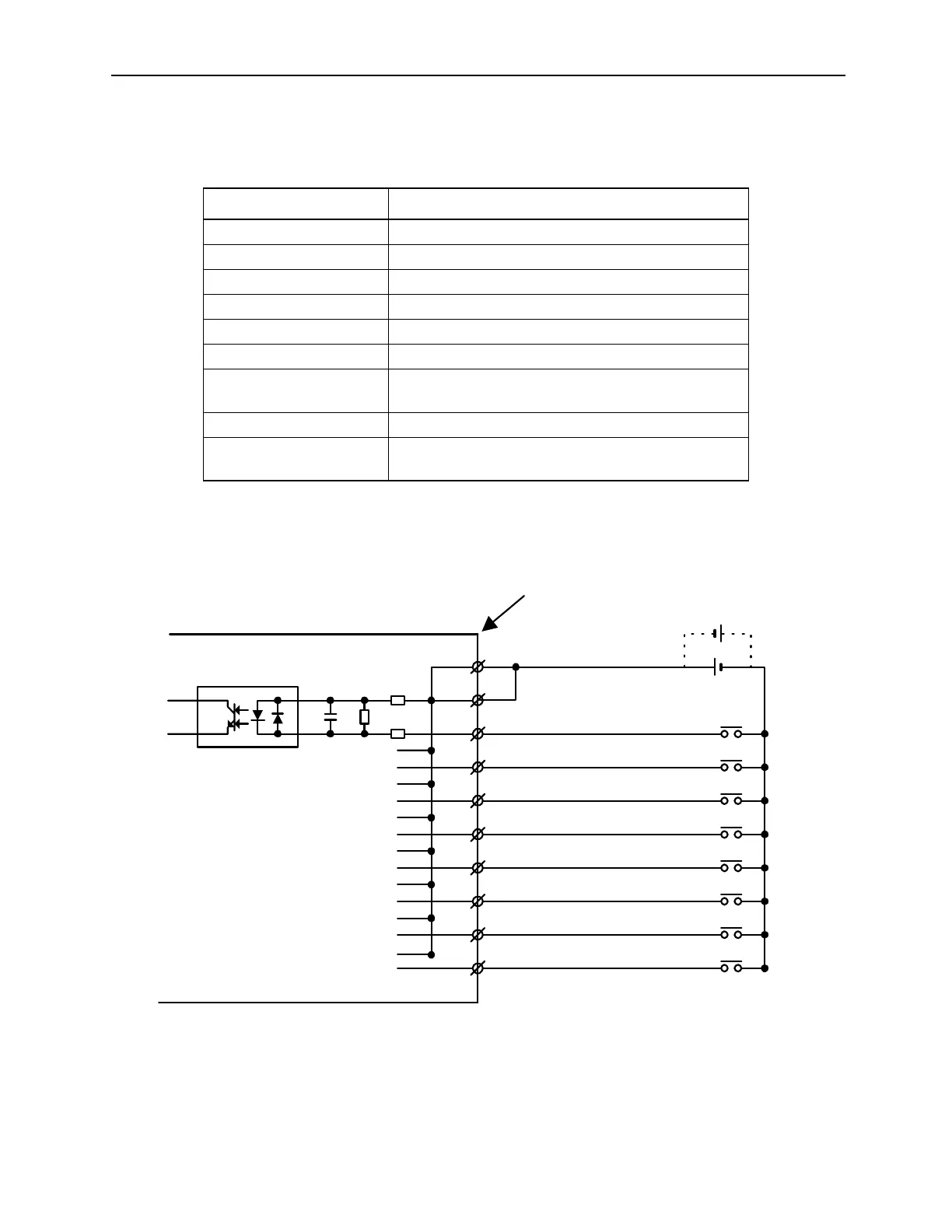

Digital I/O Specifications
Digital Input Specifications
Item Specification
Number of Input Points 8
Input Format Sinking or Sourcing
Isolation Optical
Vol t a ge 2 4V D C ± 2 0 %
Current Rating (ON) 5.3mA to activate
Input Impedance 4.4kΩ
Operation Voltage Logic 0 < 5V
Logic 1> 15V
OFF Current 0.9mA or less
Response Time OFF to ON: < 0.5ms
ON to OFF: <1.5ms
38
14
13
39
15
16
41
40
17
42
External Input Signal
MP940 I/O
Connector
24VDC
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Input 8
