8 Hall Sensor Signals Interface
This chapter describes the hall sensor signals interface of the Feedback Option Module.
8.1 Overview
Hall sensor signals provided by some sensor devices are used for easier detection of
motor pole position. Hall sensor signals do not require the detection function implemented
on the SERVOPACK. The sensor devices used must each output U/V/W Hall sensor sig-

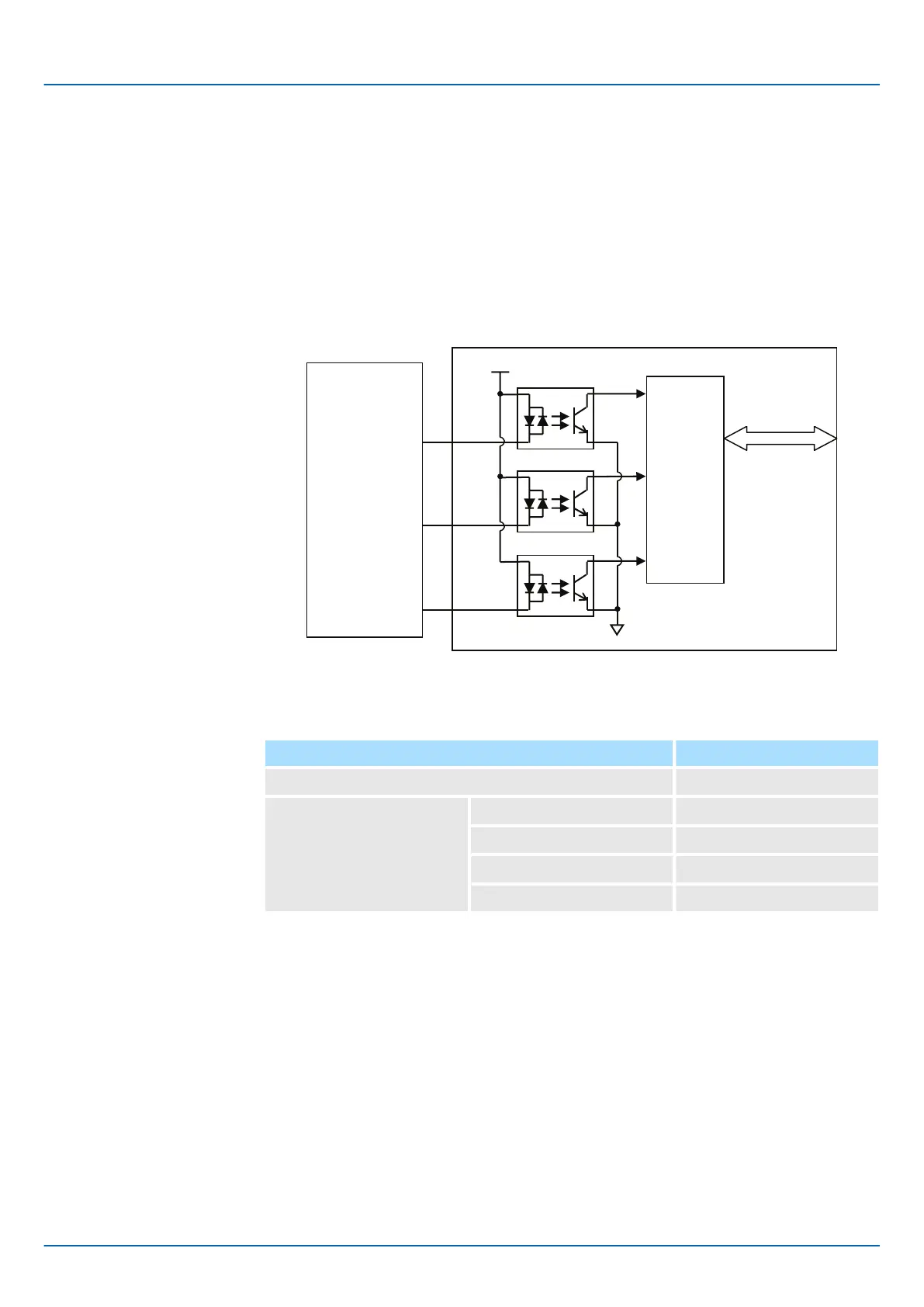

nals. The block diagram of the interface is shown below.
Hall sensor
Encoder Master
FPGA
W
Servo
Serial I/F
V
U
5V
GND
8.1.1 Technical Data
Items Description
Hall sensor interface
Isolation Yes
Signal form Square wave pulse
Signal transfer C-MOS signals
Code Absolute
Sigma-5 and Sigma-7 Series SERVOPACKs
Hall Sensor Signals Interface
Overview > Technical Data
| | Feedback Option Module Type 3 - Manual version C - Revision 0 | en | 46
