10.3 Feedback Option Module Set-up
The use of this module and an encoder requires the transfer of a parameter file (exten-
sion .mgf) to the SERVOPACK.
The parameter file must be created by Yaskawa Europe GmbH. To do this, you must pro-
vide Yaskawa with all the information of the encoder ( Ä Chap. 9 ‘Motor and Encoder /
Scale Configuration’ page 47).
Then Yaskawa Europe GmbH generates 2 files:
n an .mgf file, which is transferred to the SERVOPACK
n a .txt file representing the summary
The parameter file (extension .mgf) must be written into the module via the SERVOPACK
using the SigmaWin+ software engineering tool.

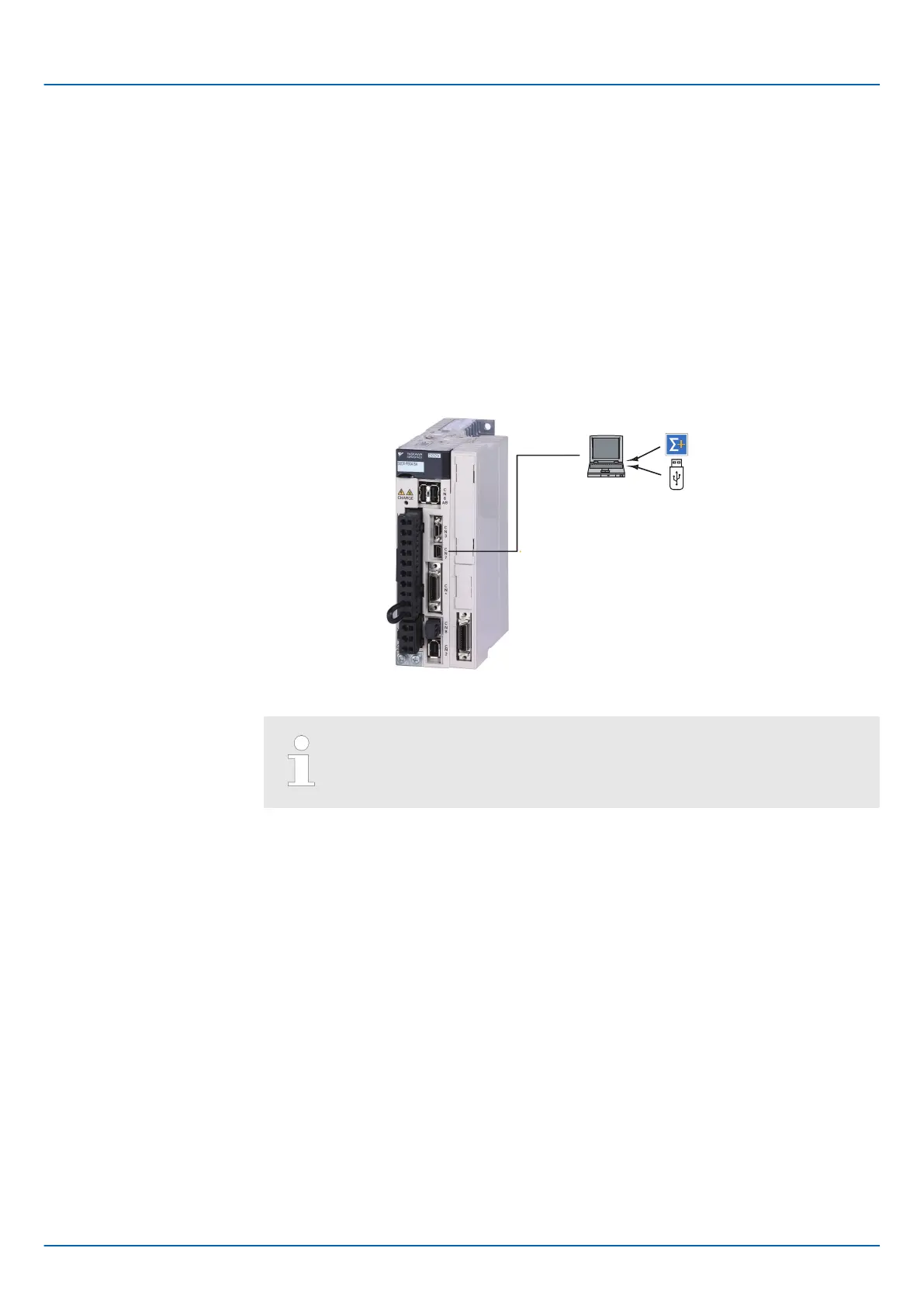

USB cable
Personal Computer
SigmaWin+
Parameter file
Write the parameter file (extension .mgf)
via the SERVOPACK into the feedback
option module.
SGDV SERVOPACK
The use of SigmaWin+ version 7.42 or higher is recommended.
Sigma-5 and Sigma-7 Series SERVOPACKs
Set-up Procedure
Feedback Option Module Set-up
| | Feedback Option Module Type 3 - Manual version C - Revision 0 | en | 57
