Motor Data Value Units
Overload Detection Torque 2 %
Overload Detection Time 2 s
1
10
1000
100 120 140 160 180 200 220 240 260 280 300 320
Overload
Detection
Time 1
Overload
Detection
Time 2
Overload Detection Torque 1
Overload Protection
Force [%]
Time [sec]
Overload Detection Torque 2
Base Torque for
Overload Detection
A720 A710
100100

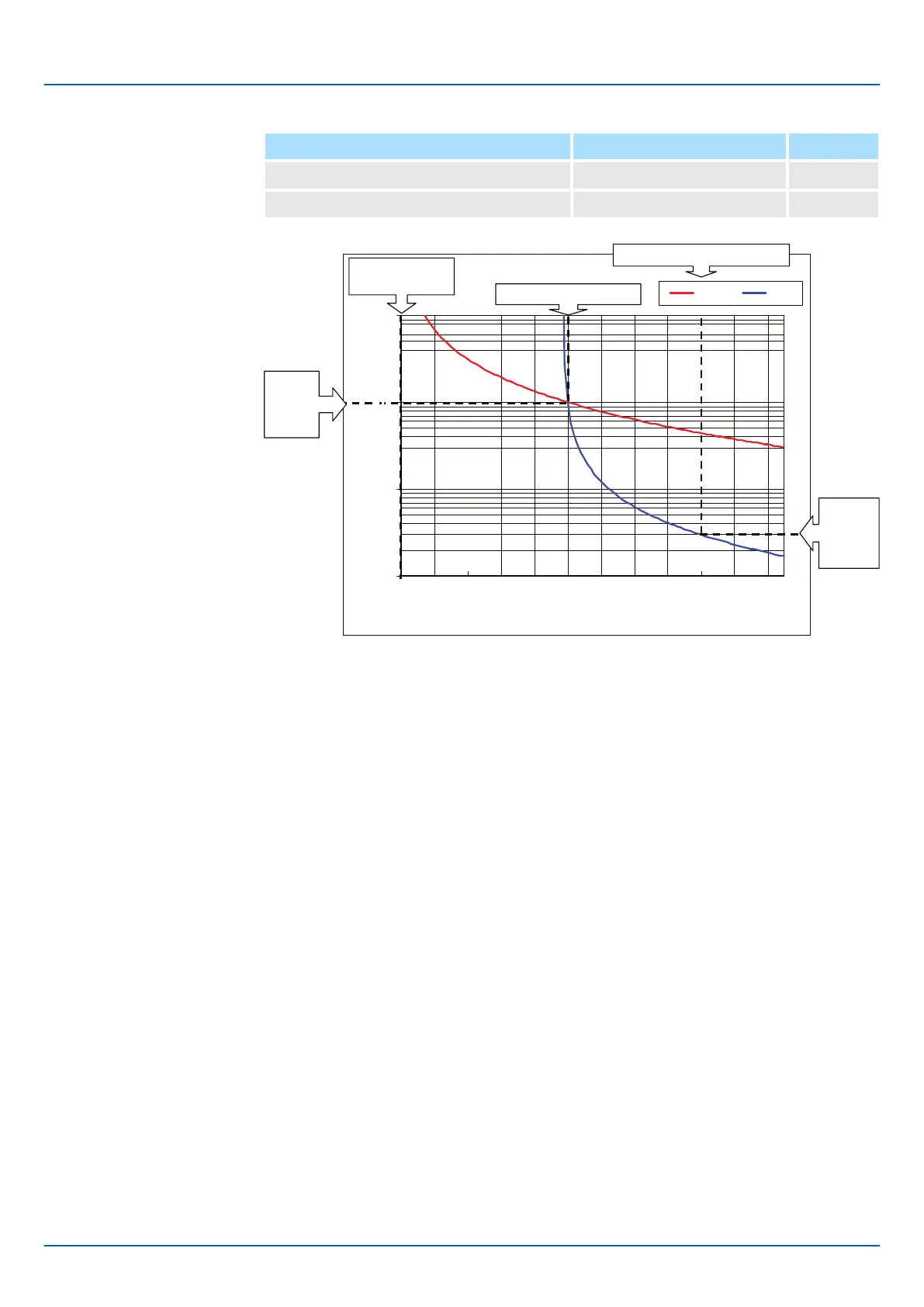

YASKAWA determines overload limits based on this diagram.
Sigma-5 and Sigma-7 Series SERVOPACKs
Motor and Encoder / Scale Configuration
Parameter File Requirements for SERVOPACKs for Linear Motors
