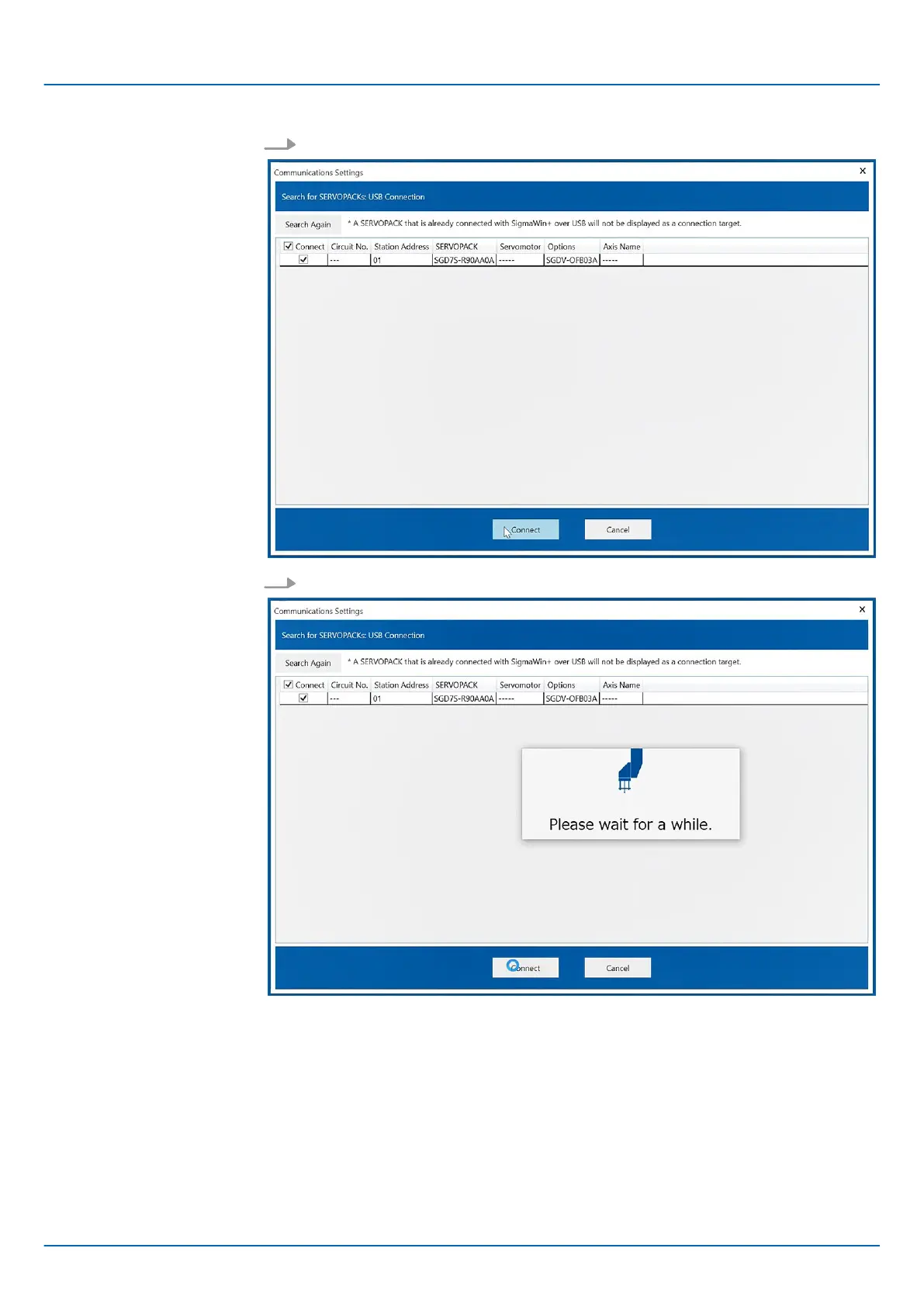

11. Click Connect to connect the selected SERVOPACK.

12. It may take a moment to establish the connection to the SERVOPACK.

Sigma-5 and Sigma-7 Series SERVOPACKs

Set-up Procedure

Feedback Option Module Set-up

| | Feedback Option Module Type 3 - Manual version C - Revision 0 | en | 62
