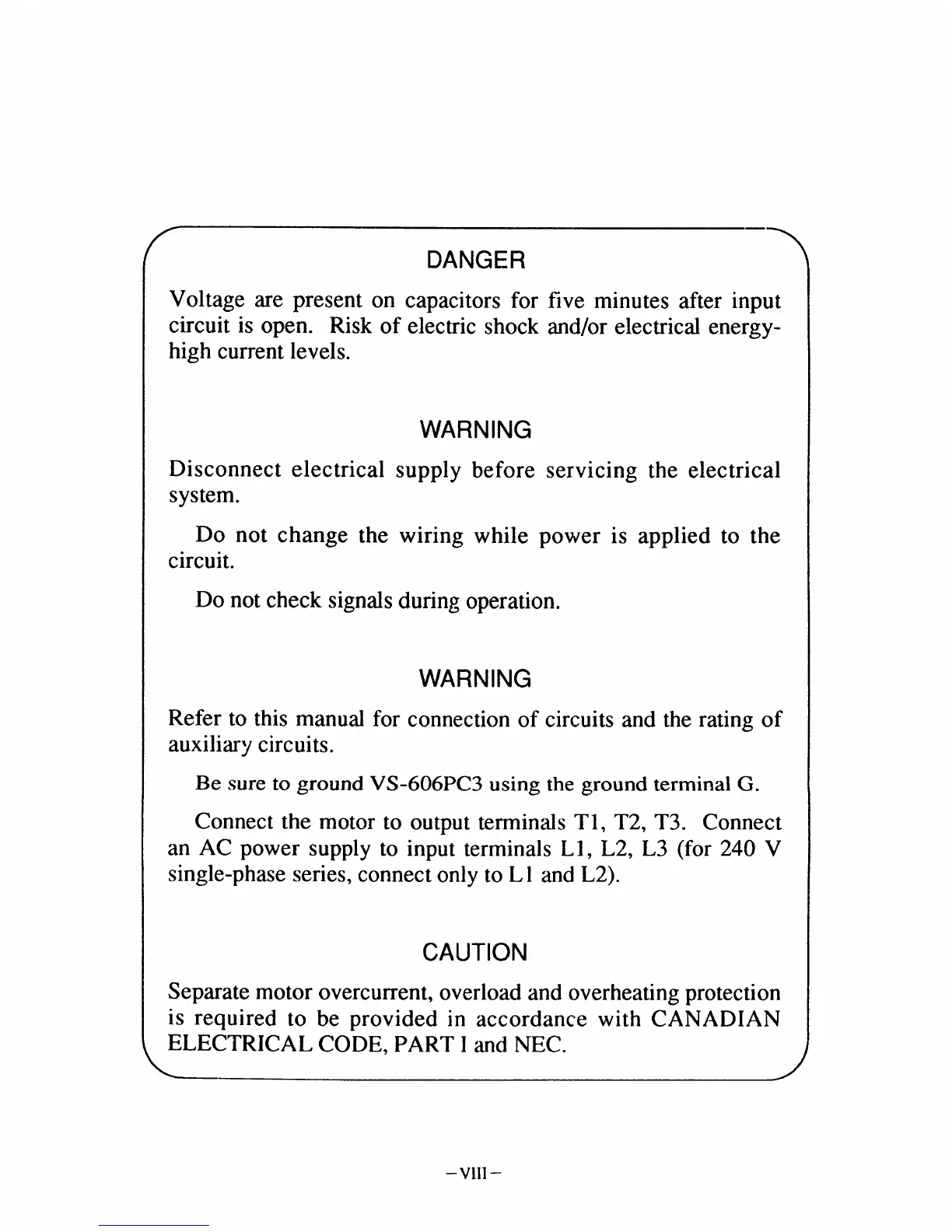

YASKAWA Varispeed-606PC3

Voltage are present
on capacitors for five minutes after input
circuit is open . Risk of electric shock and/or electrical energy-
high current levels
.
DANGER
WARNING
Disconnect electrical
supply before servicing the electrical
system
.
Do not change
the wiring while power is applied to the
circuit .
Do not check signals during
operation .
WARNING
Refer to this manual for
connection of circuits and the rating of
auxiliary circuits .
Be sure to ground
VS-606PC3 using the ground terminal G .
Connect the
motor to output terminals T1, T2, T3 . Connect
an AC power
supply to input terminals L I, L2, L3 (for 240 V
single-phase series,
connect only to L 1 and
L2) .
CAUTION
Separate motor overcurrent, overload and overheating protection
is
required to be provided in accordance with CANADIAN
ELECTRICAL
CODE, PART I and NEC .
