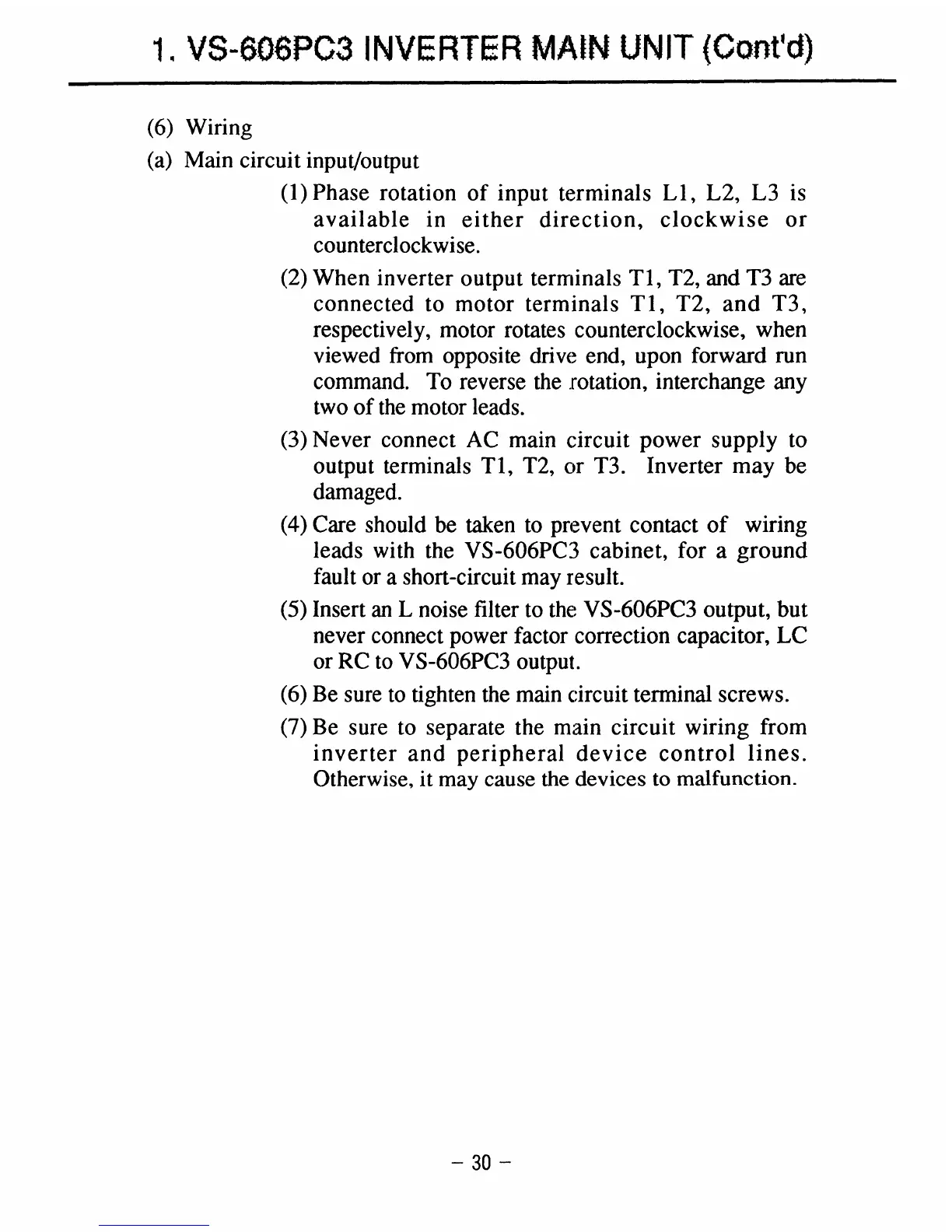

1
.
VS-606PC
3
INVERTER
MAIN
UNIT
(Cont'd)
(6)
Wiring
(a)
Main
circuit
input/output
(1)
Phase
rotation
of input
terminals
Ll,
L2,
L3
is
available
in
either direction,
clockwise
or
counterclockwise
.
(2)
When
inverter
output
terminals
T1, T2,
and
T3
are
connected
to
motor
terminals
T1,
T2,
and
T3,
respectively,
motor
rotates
counterclockwise,
when
viewed
from
opposite
drive
end,
upon
forward
run
command
.
To
reverse
the
.rotation,
interchange
any
two
of
the
motor
leads
.
(3)
Never
connect
AC
main
circuit
power
supply
to
output
terminals
T1,
T2,
or
T3
.
Inverter
may
be
damaged
.
(4)
Care
should
be
taken
to
prevent
contact
of
wiring
leads
with
the
VS-606PG3
cabinet,
for
a ground
fault
or
a
short-circuit
may
result
.
(5)
Insert
an
L
noise
filter
to
the
VS-606PG3
output,
but
never
connect
power
factor
correction
capacitor,
LC
or
RC
to
VS-606PG3
output
.
(6)
Be
sure
to
tighten
the
main
circuit
terminal
screws
.
(7)
Be
sure to
separate
the
main
circuit
wiring
from
inverter
and
peripheral
device
control
lines
.
Otherwise,
it
may
cause
the
devices
to
malfunction
.
