1 .
VS-606PC3 INVERTER
MAIN
UNIT
(Confd)
1 .7 .2 High
Voltage Test
Use an
insulation resistance tester (500 V) to conduct

 ,
insulation resistance
test
(high
voltage test) on the main

LUZ
control circuit as described below .
(1)
Remove the inverter main circuit and control circuit
terminal wiring
and execute the test only between
the main circuit terminals
and ground (ground
terminal
G) as shown in Fig . 1 .9 .
(2) The
equipment is normal with the insulation
resistance tester indicating 1
M fl or more .
VS-606P
11 - 13
L 1
L2 L3 T 1 T2T3 W'B2
Note : Do not conduct high voltage
test on the control circuit
terminals
.

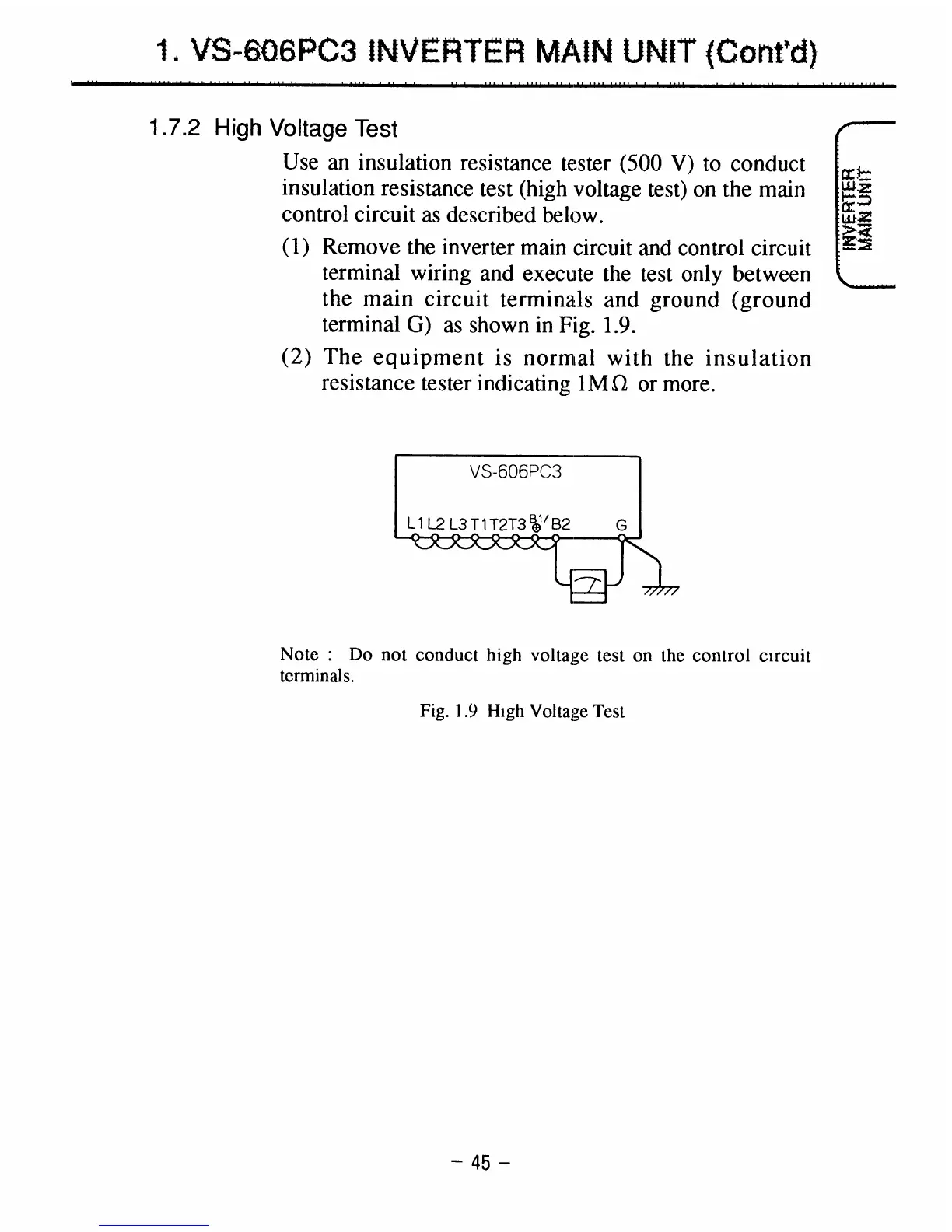

Fig . 1 .9 High Voltage Test
