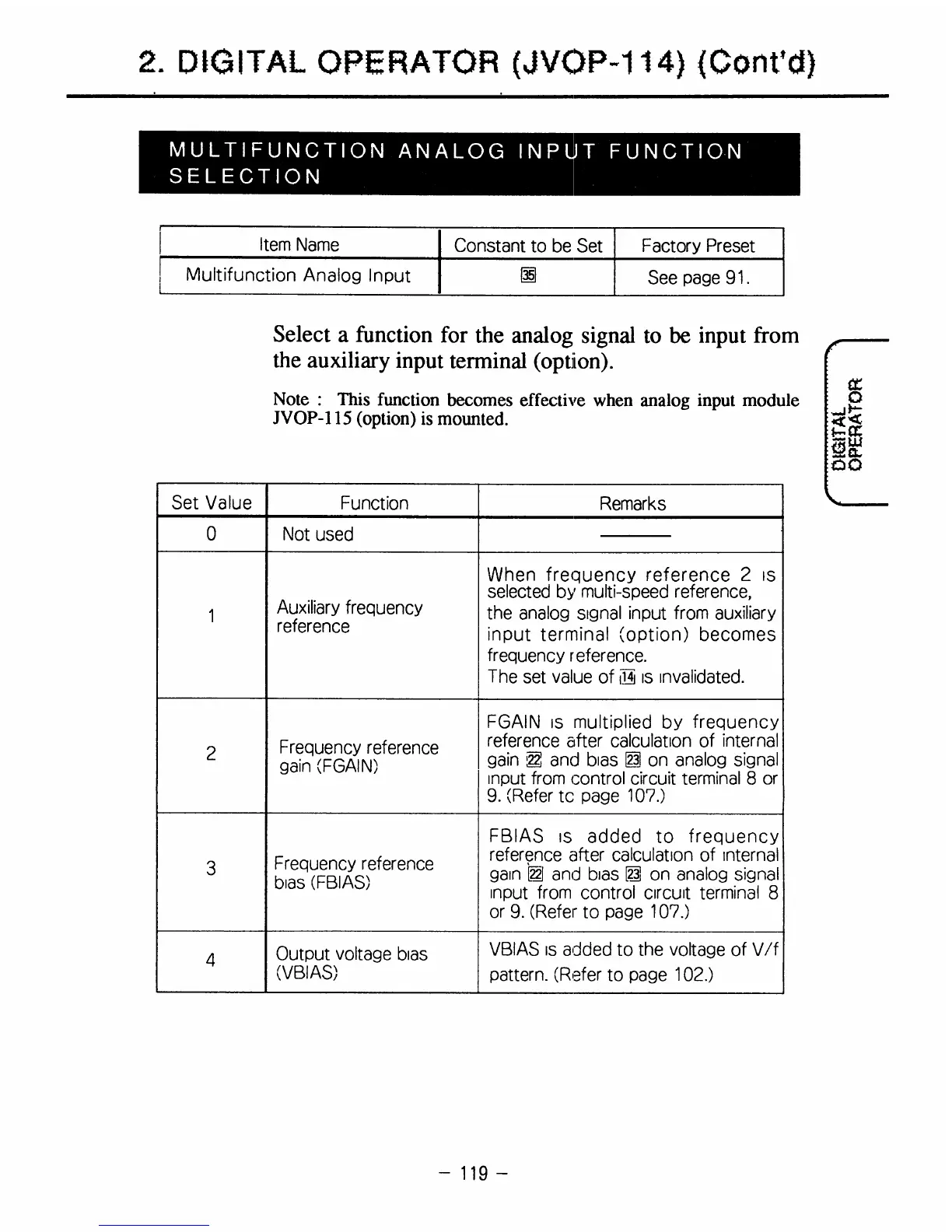

2
. DIGITAL
OPERATOR
(JVOP-114) (Cont*d)
MULTIFUNCTION
ANALOG INP~T FUNCTION
SELECTION
Select a function for
the analog signal to be
input from
the
auxiliary input terminal (option) .

r
Note : This function becomes effective when analog input module
JVOP-115 (option) is mounted
.
Set Value Function Remarks
0 Not used
When frequency reference 2 is
selected by multi-speed reference,
1 Auxiliary frequency
the analog signal input from auxiliary
reference
input terminal (option) becomes
frequency reference .
The set value
of
~1J is invalidated .
FGAIN
is
multiplied
by
frequency
2
Frequency reference
reference
after
calculation of
internal
gain
(FGAIN)
gain
n
and bias 23 on analog
signal
input from
control
circuit terminal
8
or
9 . (Refer tc page
107
.)
FBIAS
is added to frequency
Frequency
reference
reference after calculation of
internal
[_2
and bias
bias
(FBIAS)
gam
23 i
on analog signal
input from control circuit terminal 8
or 9 . (Refer to page 107 .)
Output voltage
bias
VBIAS
is
added
to the voltage of
V/f
(VBIAS)
pattern . (Refer to page 102 .)
Item Name Constant
to be Set Factory Preset
Multifunction Analog Input
I 0
See page 91 .
