1 .
VS-606PC3
INVERTER MAIN
UNIT
(Cont'd)

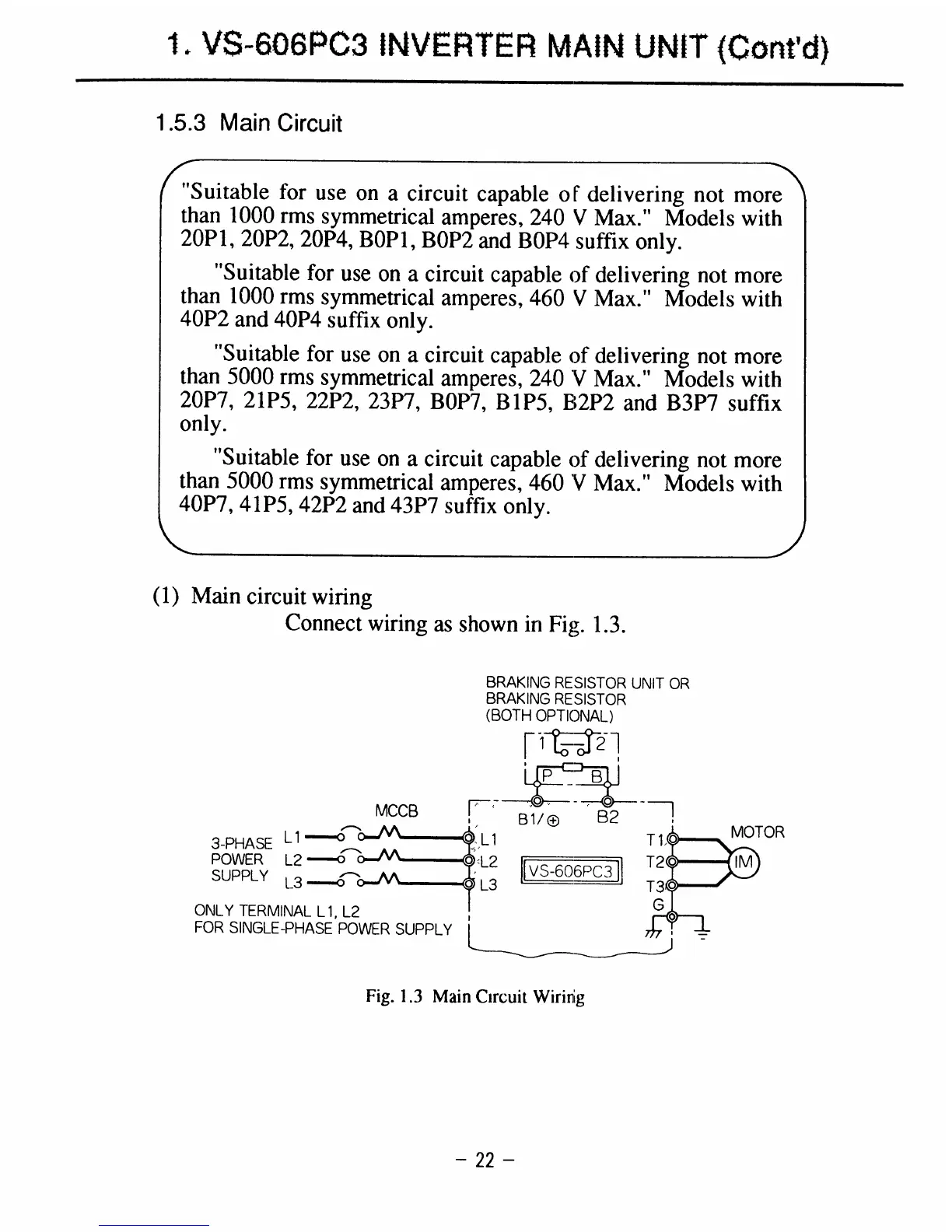

1 .5 .3 Main Circuit
(
"
"Suitable for use on
a circuit capable o f delivering
not more
than 1000 rms
symmetrical amperes, 240 V Max ."
Models with
20P1, 20P2, 20P4,
BOPI, BOP2 and
BON suffix only .
"Suitable for use on
a circuit capable of delivering
not more
than 1000 rms
symmetrical amperes, 460 V Max ."
Models with
40P2
and 40P4 suffix only .
"Suitable for use on a
circuit capable of delivering
not more
than
5000 rms symmetrical
amperes, 240V Max ." Models with
20P7, 21P5, 22P2,
23P7, BOP7, B 1 P5, E,2P2
and B3P7 suffix
only .
"Suitable
for use on a circuit
capable of delivering not more
than
5000 rms symmetrical
amperes, 460V Max ." Models with
40P7,
41P5, 42P2 and
43P7 suffix only .
(1)
Main circuit wiring
Connect wiring
as shown in Fig . 1 .3 .
3-PHASE
L
1 ---°
POWER

L2 --o 0
SUPPLY
L3
__,
^0
MCCB
BRAKING RESISTOR UNIT OR
BRAKING
RESISTOR
(BOTH OPTIONAL)
F
1- t W
~21
P B
-moo}- - , o
{ B1/(D
B2
~L 1

T 1,°

MOTOR
o :L2
° . L3
ONLY
TERMINAL L1, L2

C'
o
FOR
SINGLE-PHASE POWER
SUPPLY
Fig . 1 . 3 Main Circuit Wirinig
VS-60 6PC3
T2 °

IM
T3 t
