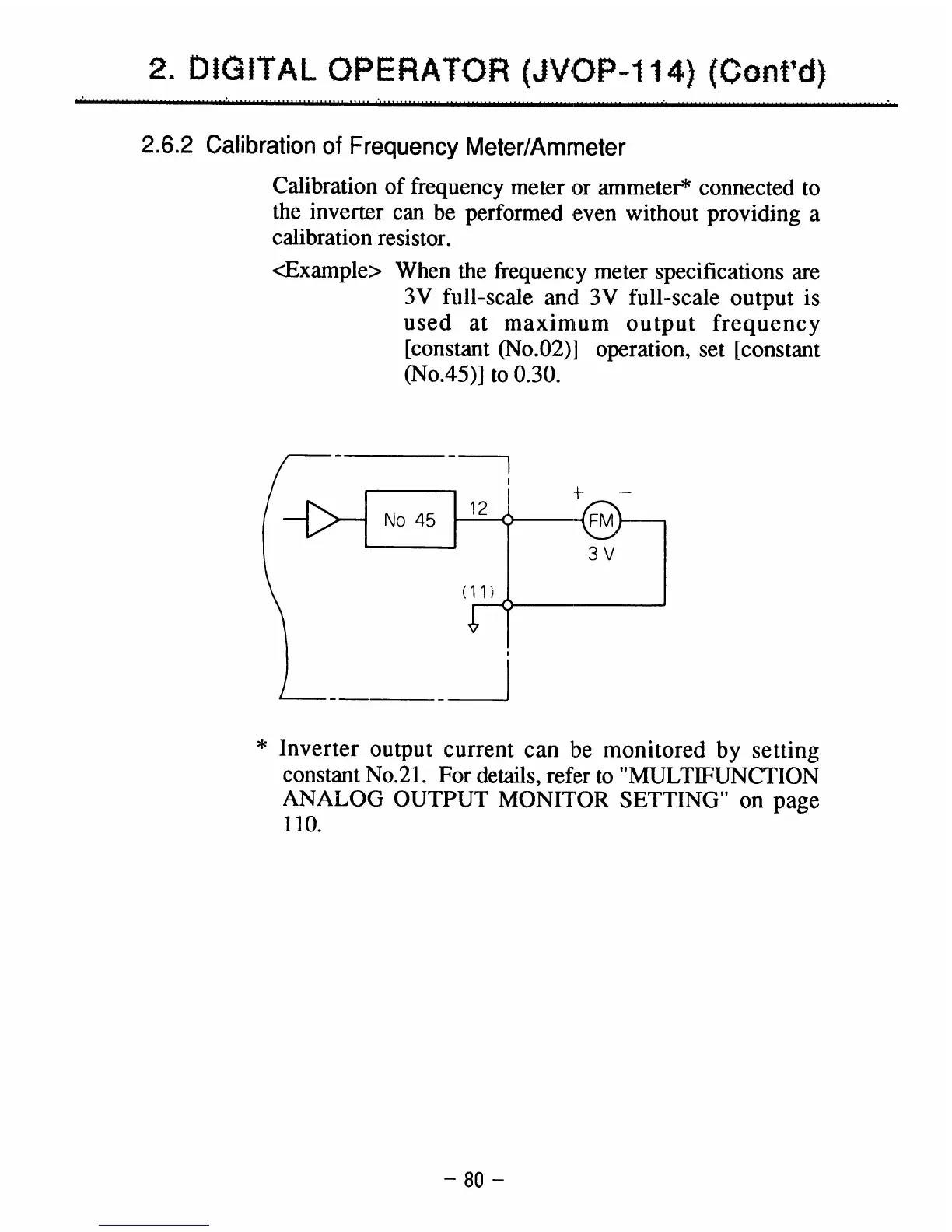

.6 .2 Calibration of
Frequency Meter/Ammeter
Calibration of frequency meter or
ammeter* connected to
the inverter
can be performed even without providing
a
calibration resistor .
<Example> When the
frequency meter specifications are
3V full-scale and 3V full-scale
output is
used at maximum output frequency
[constant (No .02) ]

operation, set [constant
(No .45)] to 0 .30 .
No 45 kiL~
3V
*
Inverter output current can be monitored
by setting
constant
No
.21 .
For details, refer to "MULTIFUNCTION
ANALOG OUTPUT MONITOR SETTING"
on page
110 .
