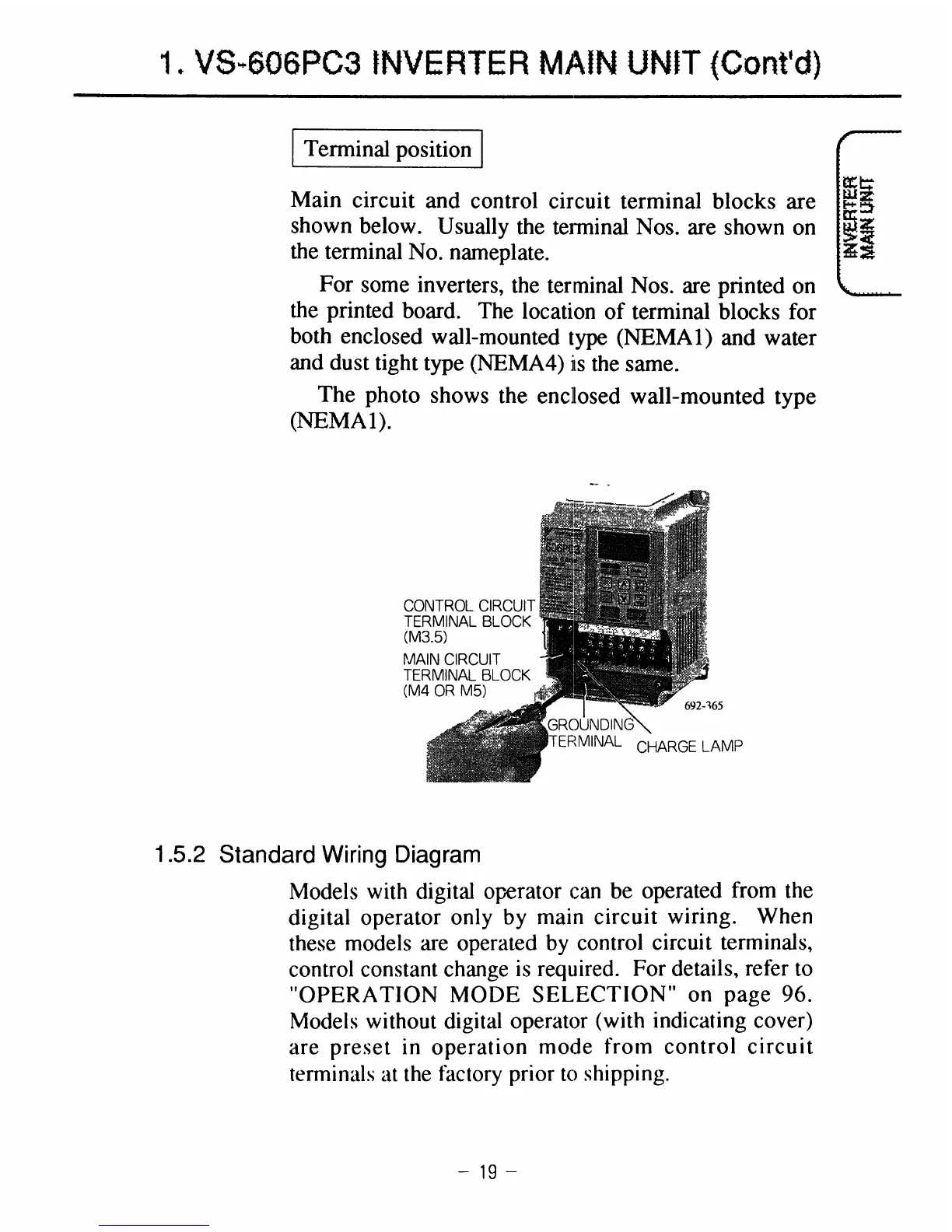

VS-606PC3 INVERTERMAIN
UNIT
(Cont'd)
Terminal position
Main
circuit and control circuit terminal blocks are
shown below .
Usually the terminal Nos . are shown on
the
terminal No . nameplate
.
For some inverters, the terminal
Nos . are printed on
the printed
board . The location
of
terminal
blocks for
both enclosed
wall-mounted type (NEMA 1) and water
and dust tight type (NEMA4)
is the same .
The photo shows the
enclosed wall-mounted type
(NEMA
1) .
CONTROL CIRCUIT
TERMINAL BLOCK
(M3 .5)
MAIN CIRCUIT
TERMINAL BLOCK
(M4 OR M5)
1
.5 .2 Standard Wiring Diagram
692-365
GROUNDING\
TERMINAL
CHARGE
LAMP
Models with digital operator can be operated
from the
digital operator
only by main circuit wiring . When
these models are operated by control circuit terminals,
control constant change is required .
For details, refer to
"OPERATION MODE SELECTION" on page 96 .
Models without digital operator (with indicating cover)
are preset in operation
mode from control circuit
terminals at the factory prior to shipping .
