YASKAWA Varispeed-606PC3 User Manual

t . VS-606PC3
INVERTER MAIN UNIT
(Cont'd)
1

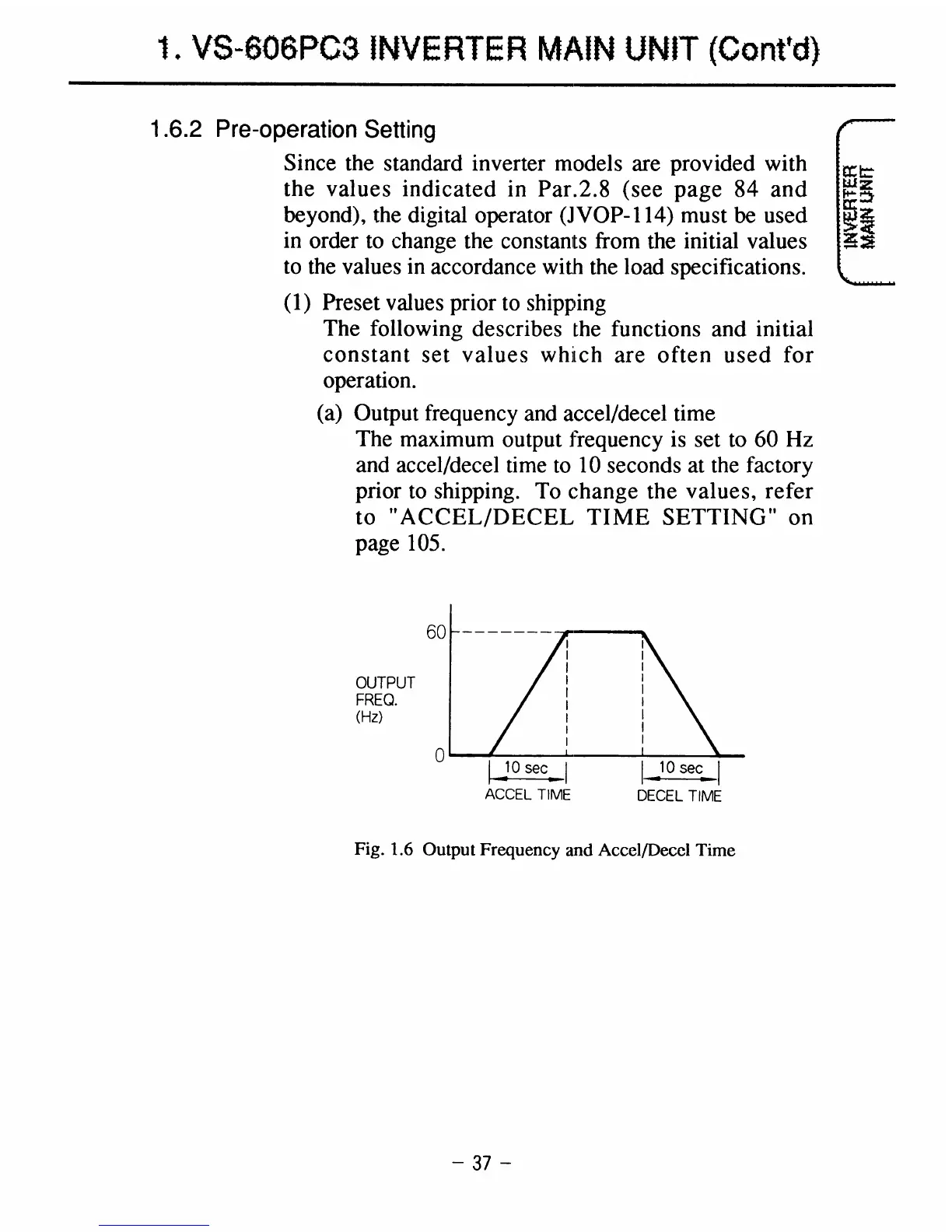

.6 .2 Pre-operation Setting
Since the standard inverter models are provided with
the
values indicated in Par .2 .8 (see page 84 and
beyond), the digital operator (J VOP-114) must be used
in
order to change the constants from the initial values
LU Lilt ; VQILIGJ III
QLLVIUdllUG
WIL .ll
Lilt IUdU JPGL111LdLIVIIJ .
(1)
Preset values prior to shipping
The following
describes the
functions
and
initial
constant set values which are often used for
operation .
(a) Output frequency and accel/decel time
The maximum output frequency is set to 60 Hz
and accel/decel time to 10 seconds at the factory
prior
to
shipping .
To change the values, refer
to "ACCEL/DECEL TIME SETTING"
on
page 105 .
OUTPUT
FREQ .
(Hz)
10 sec

I
DECEL TIME
Fig
. 1 .6 Output Frequencyand Accel/Decel Time
M h=
F u . - 1 g
