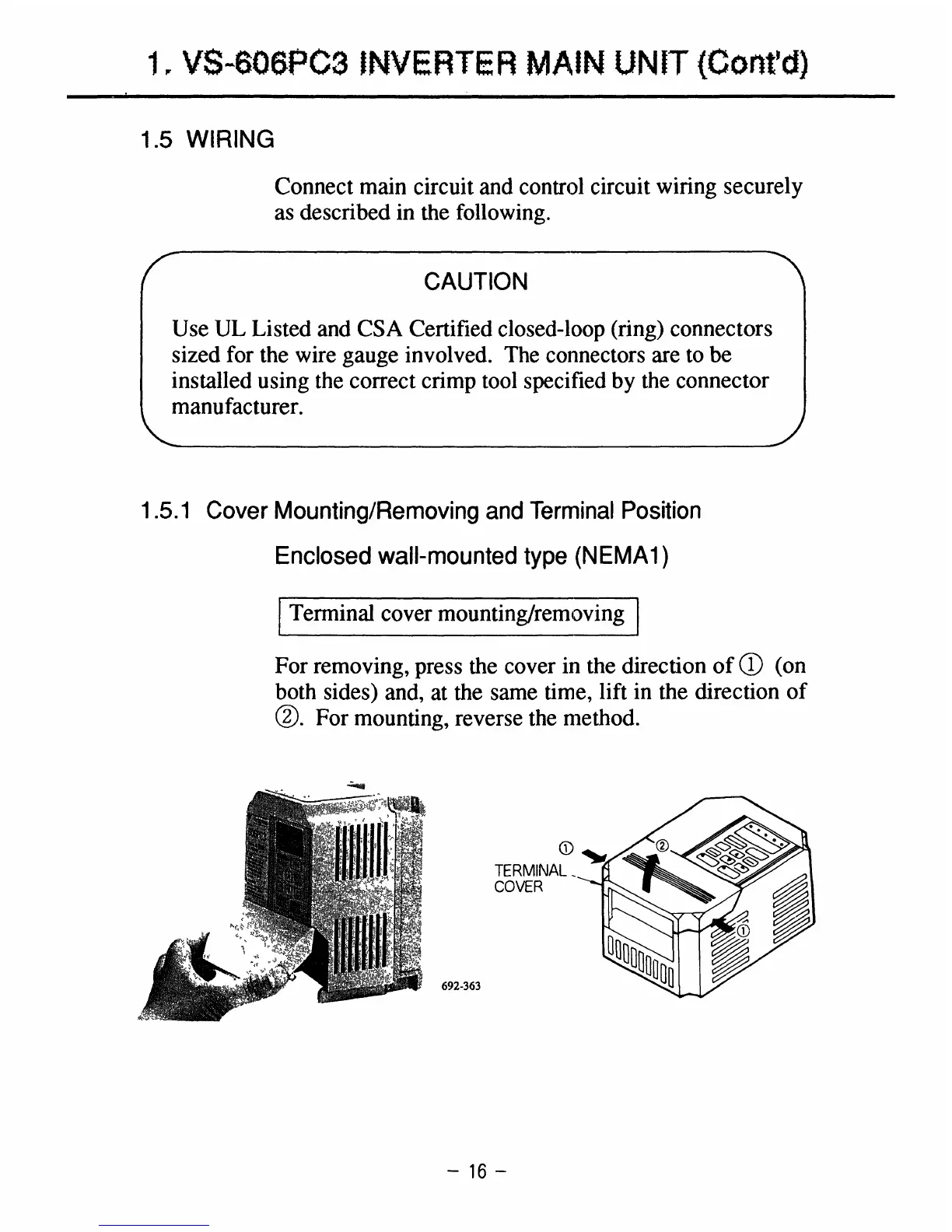

YASKAWA Varispeed-606PC3 User Manual

1 .5 WIRING
1 .
VS-606PO3 INVERTERMAIN
UNIT
(Cont'd)
Connect main circuit and control circuit
wiring securely
as described in the following .
Use UL Listed and CSA Certified closed-loop (ring) connectors
sized for the wire gauge involved . The connectors are to be
installed using
the
correct crimp tool specified by the connector
manufacturer .
1 .5 .1 Cover Mounting/Removing and Terminal Position
Enclosed wall-mounted
type
(NEMA1)
Terminal cover mounting/removing
For
removing, press the cover in the direction of
D
(on
both sides)
and, at the same
time, lift in the direction of
0 . For mounting, reverse the method .
TIMME
o
' ~\

rr ° TERMINAL
0
