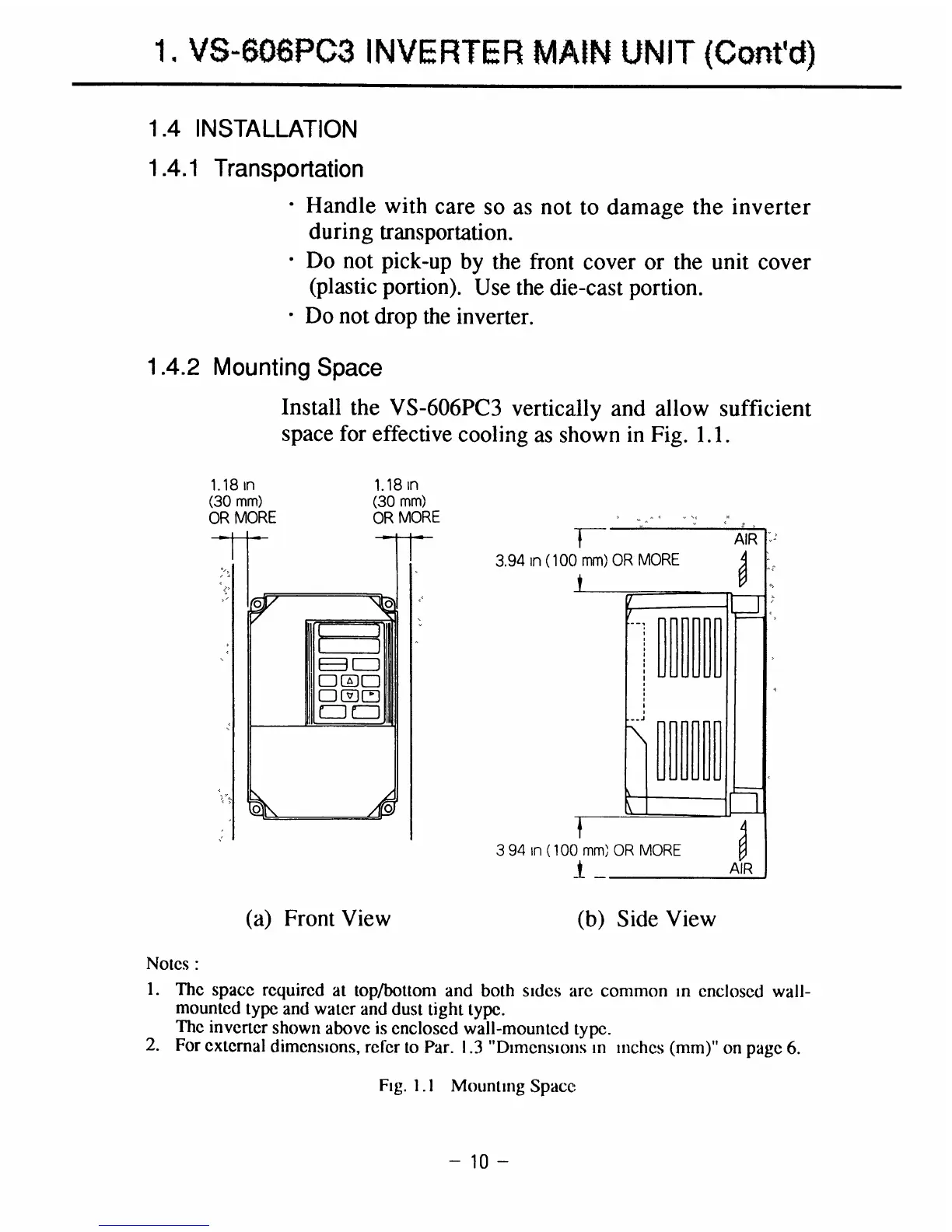

1 . VS-606PC3
INVERTER MAIN UNIT
(Cont'd)
1 .4
INSTALLATION
1
.4 .1 Transportation
1 .4 .2
Mounting Space
Notes
1 .18 in

1 .18
in
(30 mm)

(30 mm)
ORMORE

ORMORE
Handle with
care so as not to damage the inverter
during transportation .
Do not pick-up by the
front cover or the unit cover
(plastic portion) .
Use the die-cast portion .
Do not drop
the inverter .
Install the VS-606PC3
vertically and allow sufficient
space for effective cooling
as shown in Fig . 1 .1 .
Fig . l .I

Mounting
Space :
- 1 0 -
3
.94 m (100 mm) ORMORE
3 94
m
(100
mm)
ORMORE
t
-

AIR
(a) Front View

(b) Side View
AIR
1 . The
space required at top/bottom and both sides are common in
enclosed
wall-
mounted
type and water and dust tight type .
The
inverter shown above is enclosed wall-mounted
type .
2 .

For external
dimensions, refer
to
Par .
1 .3 "Dimensions in inches (mm)" on page 6 .
