DIGITAL OPERATOR (JVOP-114)
(Cont'd)
V/f
CHARACTERISTIC SETTING

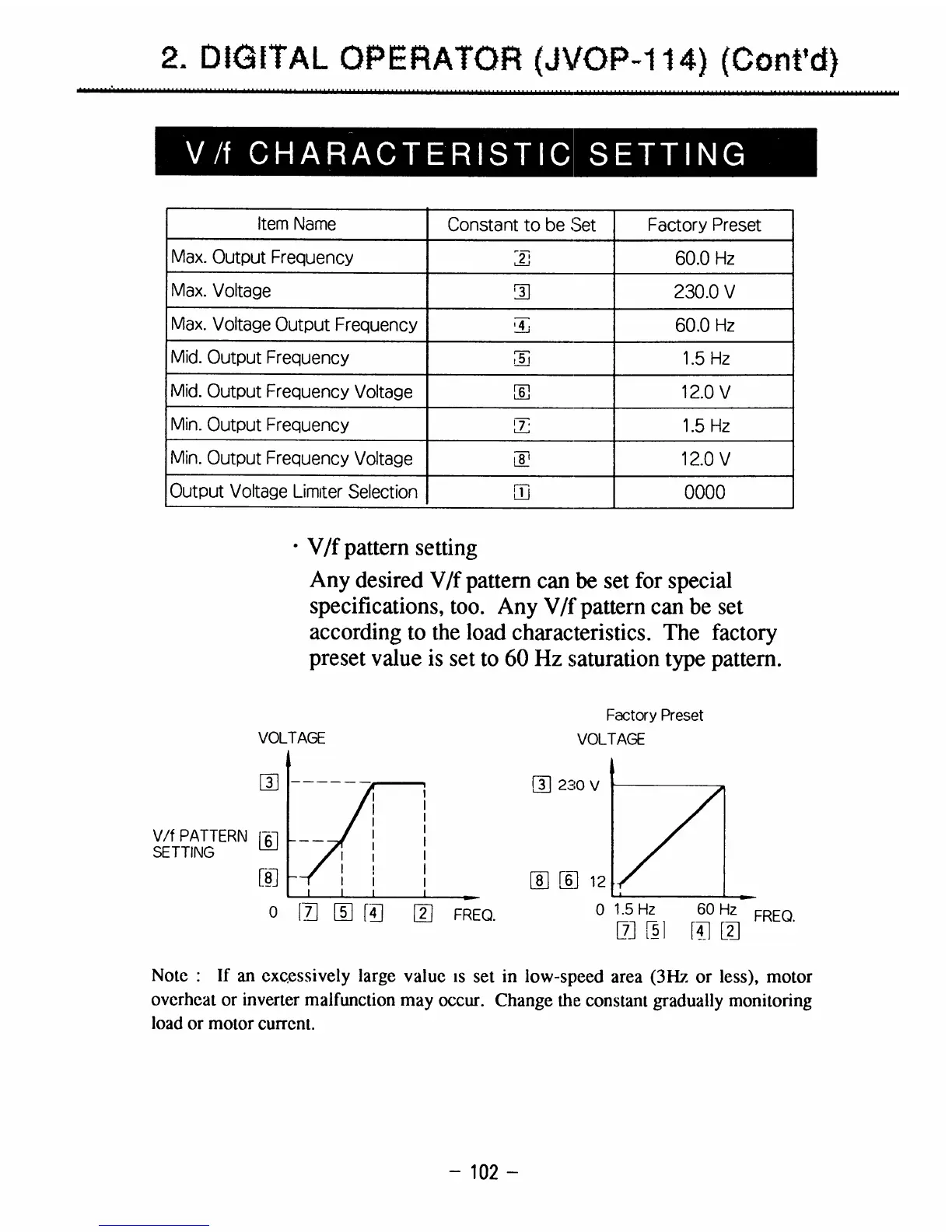

.. V/f pattern setting
Any desired V/f pattern can be set for special
specifications, too . Any V/1' pattern can be set
according
to
the
load characteristics . The factory
preset value is set to 60 Hz
saturation
type
pattern
.
VOLTAGE

VOLTAGE
V/f PATTERN 0

_
SETTING

i i
i

i

®
F6]
12
1
o

1 - 71

a T

[21

FREQ .

0 1 .5 Hz

60Hz

FREQ .
C]
[51
Note : If an excessively large value
is set
in
low-speed area (3I-I/ or less), motor
overheat or
inverter
malfunction may occur . Change the constant gradually monitoring
load or motor current .
~ 2 2 0 V
Factory Preset
Item Name
Constant to be Set Factory Preset
Max .
Output Frequency '2 ;;
60 .0
Hz
Max . Voltage
230 .0 V
Max .
Voltage Output Frequency a
60 .0
Hz
Mid
. Output Frequency W,
1 .5 Hz
Mid
. Output Frequency Voltage M6 u 12 .0 V
Min . Output
Frequency i 1 .5 Hz
Min .
Output Frequency Voltage
111
12
.0 V
Output Voltage Limiter
Selection al 1 0000
