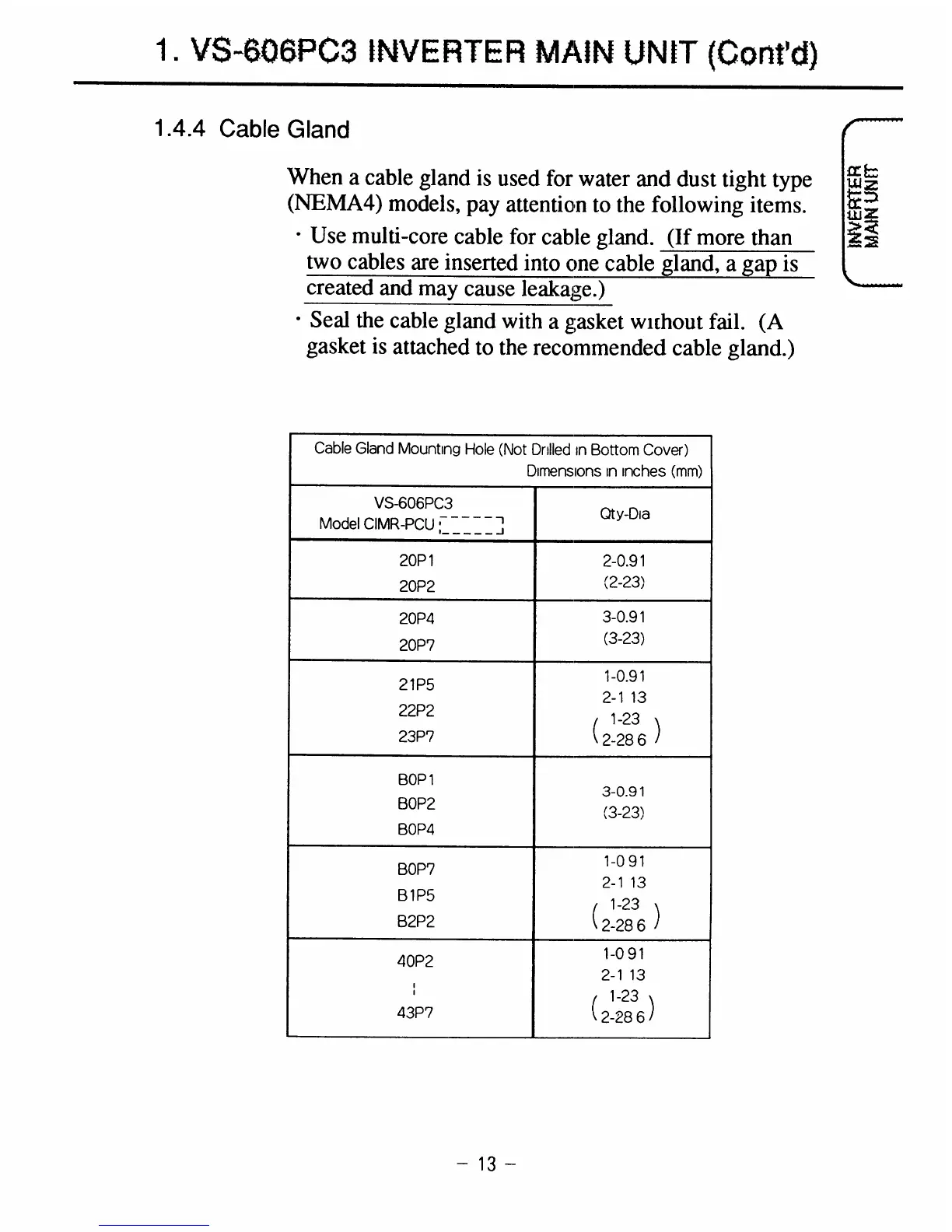

1 .
VS-606PO3 INVERTERMAIN UNIT
(Cont'd)
1 .4 .4
Cable Gland
When
a cable gland is used for
water and dust tight type
(NEMA4)
models, pay attention to the following
items .
- Use multi-core
cable for cable gland . (If more than
two cables are inserted
into one cable gland, a gap is
created
and may cause leakage .)
- Seal the
cable gland with a gasket wichout fail . (A
gasket is
attached to the recommended cable gland
.)
Cable
Gland Mounting Hole (Not Drilled in Bottom
Cover)
Dimensions in inches (mm)
VS-606PC3
Model CIMR-PCU
j
oty-Dia
20P 1 2-0 .91
20P2
(2-23)
20P4
3-0 .91
20P7
(3-23)
21P5
1-0 .91
2-1 13
22P2
23P7
(2-286
1-23
BOP 1
3-0 .91
BOP2
(3-23)
BOP4
BOP?
1-091
2-1 13
B 1 P5
B2P2
(2-286
1-23
40P2
1-091
2-1 13
'
43P7
(2-286
1-23
