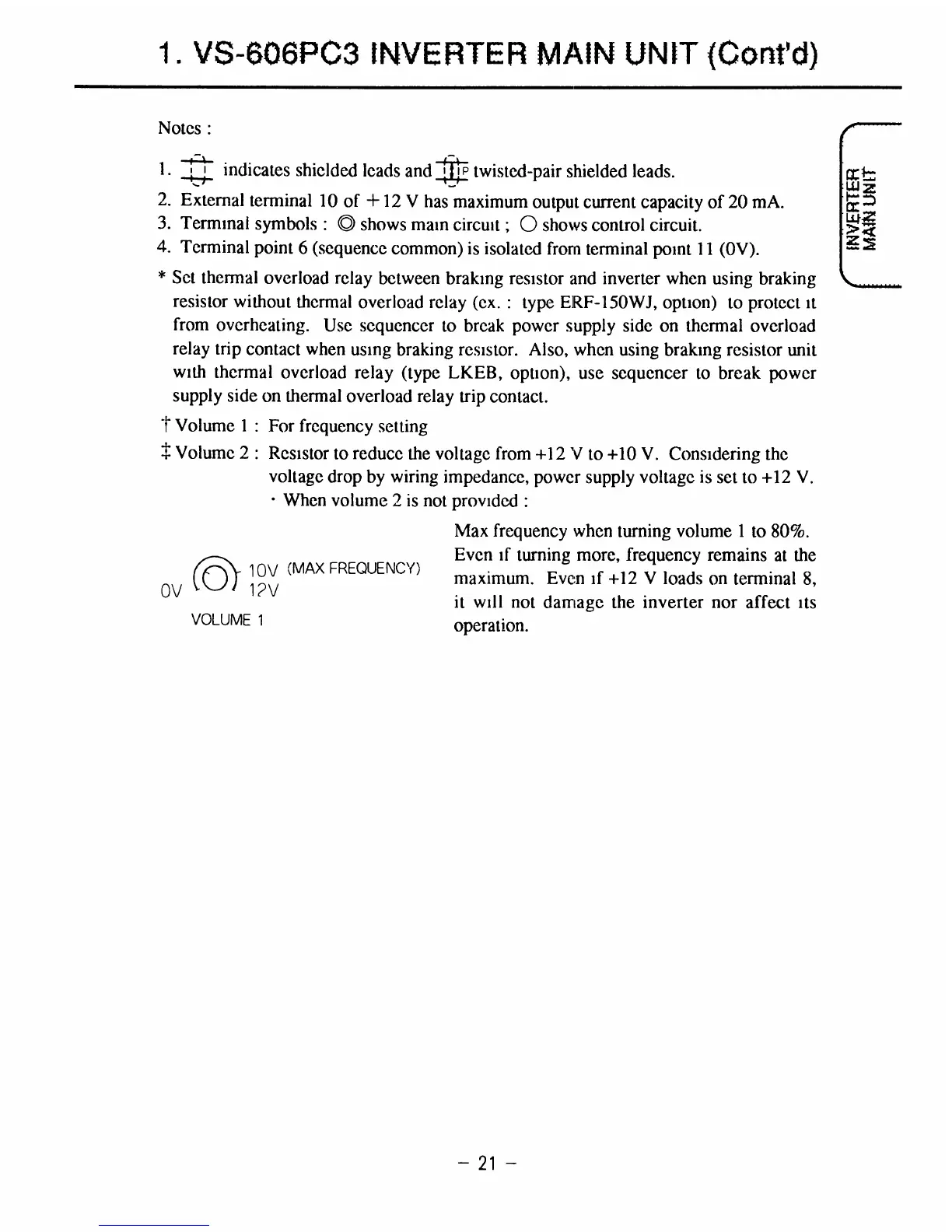

LAS-606PC3
INVERTER
MAIN
UNIT
(Contod)
Notes
1
.
indicates
shielded
leads
and
1
^
gyp
twisted-pair
shielded
leads
.
2
.
External terminal
10
of
+
12
V
has
maximum
output
current
capacity
of
20
mA
.
3
.
Terminal
symbols
:
0
shows
main
circuit
;
O
shows
control
circuit
.
4
.
Terminal
point
6
(sequence
common)
is
isolated
from
terminal point
11
(OV)
.
* Set
thermal
overload
relay
between
braking
resistor
and
inverter
when
using
braking
resistor
without
thermal
overload
relay
(ex
.
:
type
ERF-150WJ,
option)
to
protect
it
from
overheating
.
Use
sequencer
to
break
power
supply
side
on
thermal
overload
relay
trip
contact
when
using
braking
resistor
.
Also,
when
using
braking
resistor
unit
with
thermal
overload
relay (type
LKEB,
option),
use
sequencer
to
break
power
supply
side
on
thermal
overload
relay
trip
contact
.
T
Volume
1
:
For
frequency
setting
±
Volume
2
:
Resistor
to
reduce
the
voltage
from
+12V
to
+10
V
.
Considering
the
voltage
drop
by
wiring
impedance,
power
supply
voltage
is
set
to
+12
V
.
When
volume
2
is
not
provided
10V
(MAX
FREQUENCY)
OV
'
v
17V
VOLUME
1
Max
frequency
when
turning
volume
1
to
80%
.
Even
if
turning
more,
frequency remains
at
the
maximum
.
Even
if
+12
V
loads
on
terminal
8,
it
will
not
damage
the
inverter
nor
affect
its
operation
.
