Yealink W60B Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W60B IP DECT PHONE 20-BD5561-00
©
2018 BROADSOFT INC. PAGE 38 OF 117

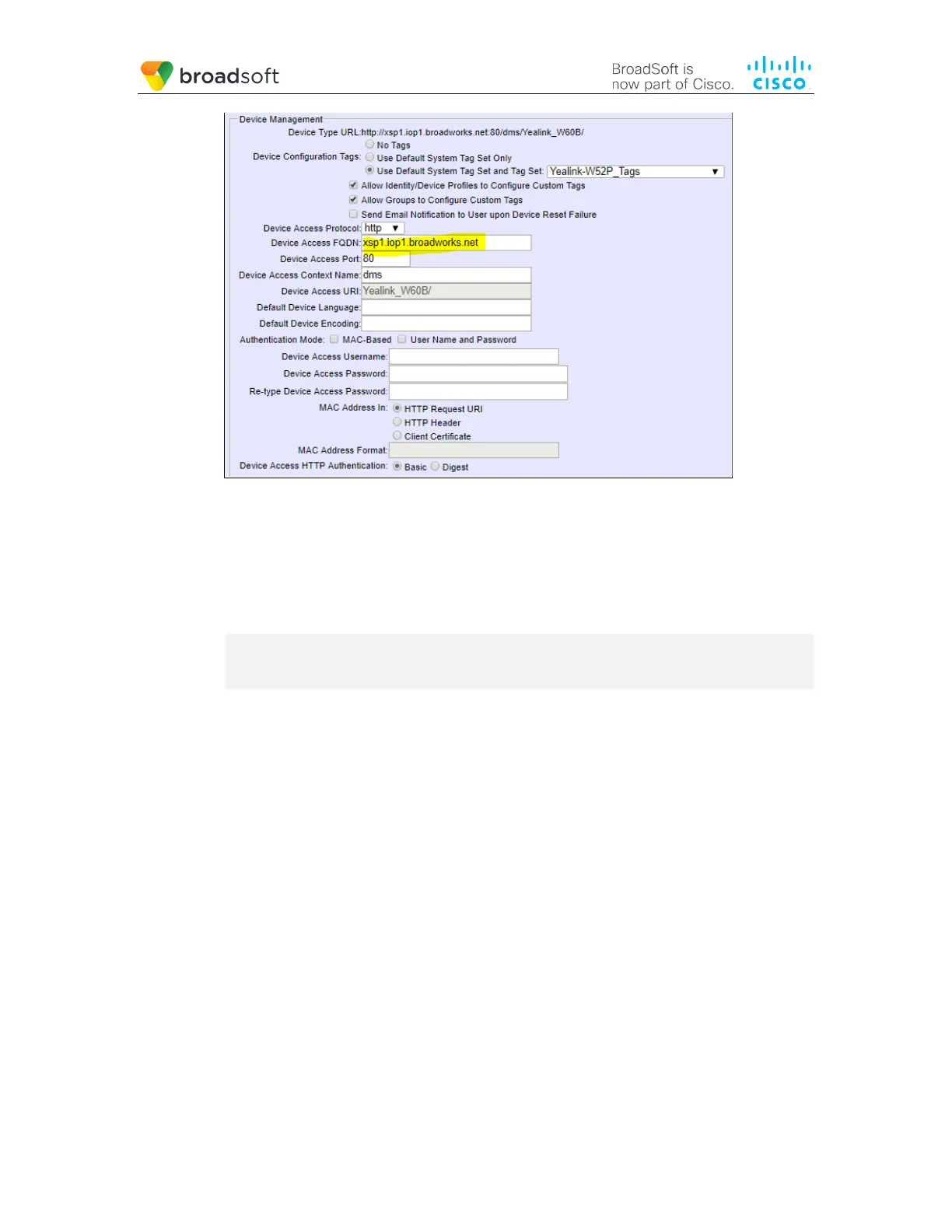

Figure 12 Device Access FQDN
7)
Click the Files and Authentication link and then select the option to rebuild all the
system files.
Firmware files must be obtained from Yealink. These files are not included in the
import. Complete the steps in section 5.2.2.2.2.3 Static Files to define the static
firmware files and to upload the firmware.
NOTE: The non-firmware static files in section 5.2.2.2.2.3 Static Files are included in the import.
8) After importing the DTAFs, restart the Application Server to load the TimeZoneAlias
files.
5.2.2.2 Configuration Method 2: Manual
This section identifies the manual steps necessary to configure BroadWorks to add the
Yealink W60B IP DECT PHONE as a Device Management-enabled device type. This
method should not be used except in special cases as described in the opening to section
5.2.2 Configure BroadWorks Device Profile Type.
For more detailed instruction on manual configuration, see the BroadWorks CPE Kit
Usage Guide [8] and the BroadWorks Device Management Configuration Guide [2].
The steps in this section can also be followed to update previously imported or configured
device profile type(s) with new configuration files and firmware.
If there are DTAFs for more than one device model, these steps must be completed for
each model.
5.2.2.2.1 Create or Modify Device Profile Type
This section identifies the BroadWorks device profile type settings relevant to Device
Management for the Yealink W60B IP DECT PHONE.

Yealink W60B Specifications

General

Dimensions	130mm x 100mm x 25.1mm
Operating Temperature	0°C to +40°C
DECT Standards	CAT-iq 2.0
Number of Handsets	Up to 8
Internal Calls	Yes
External Calls	Yes
Call Hold	Yes
Call Transfer	Yes
3-way Conference	Yes
Call Waiting	Yes
Mute	Yes
Redial	Yes
DECT Radio Coverage	Up to 50m indoors, 300m outdoors
PoE	IEEE 802.3af Class 1
Configuration	Browser/phone/auto-provision
Wall Mountable	Yes
Wireless Technology	DECT
Channels	120
Concurrent Calls	Up to 8 concurrent calls
Audio Codecs	G.722, G.711, G.729, G.726, iLBC, Opus
Security	TLS, SRTP, HTTPS, 802.1X
Operating Humidity	10 ~ 95%
Handset Registration	8 handsets
Frequency Bands	1880-1900 MHz
Operating Range	Up to 50m indoors, 300m outdoors
Humidity	10-95%
Compliance	CE, FCC, RCM
Network Protocols	SIP, HTTP, HTTPS, DHCP, DNS, NTP, STUN
Number of SIP Accounts	Up to 8 SIP accounts
Storage Temperature	-30°C to +70°C
