Yealink W60B Configuration Guide

BROADSOFT PARTNER CONFIGURATION GUIDE – YEALINK W60B IP DECT PHONE 20-BD5561-00
©
2018 BROADSOFT INC. PAGE 45 OF 117
5.2.3 Create Device Profile Instance
The previous sections defined the device profile type such that the system is ready to
mass deploy device profiles. A device profile is an instance of the device profile type and
defines the BroadWorks interface to an individual Yealink phone deployed at a user’s
desk.
Browse to the BroadWorks <group> → Resources → Identity/Device Profiles and select
Add to add a new Yealink W60B IP DECT PHONE device profile. Configure the device
profile as shown in the Figure 17.
Example Identity/Device Profile Settings

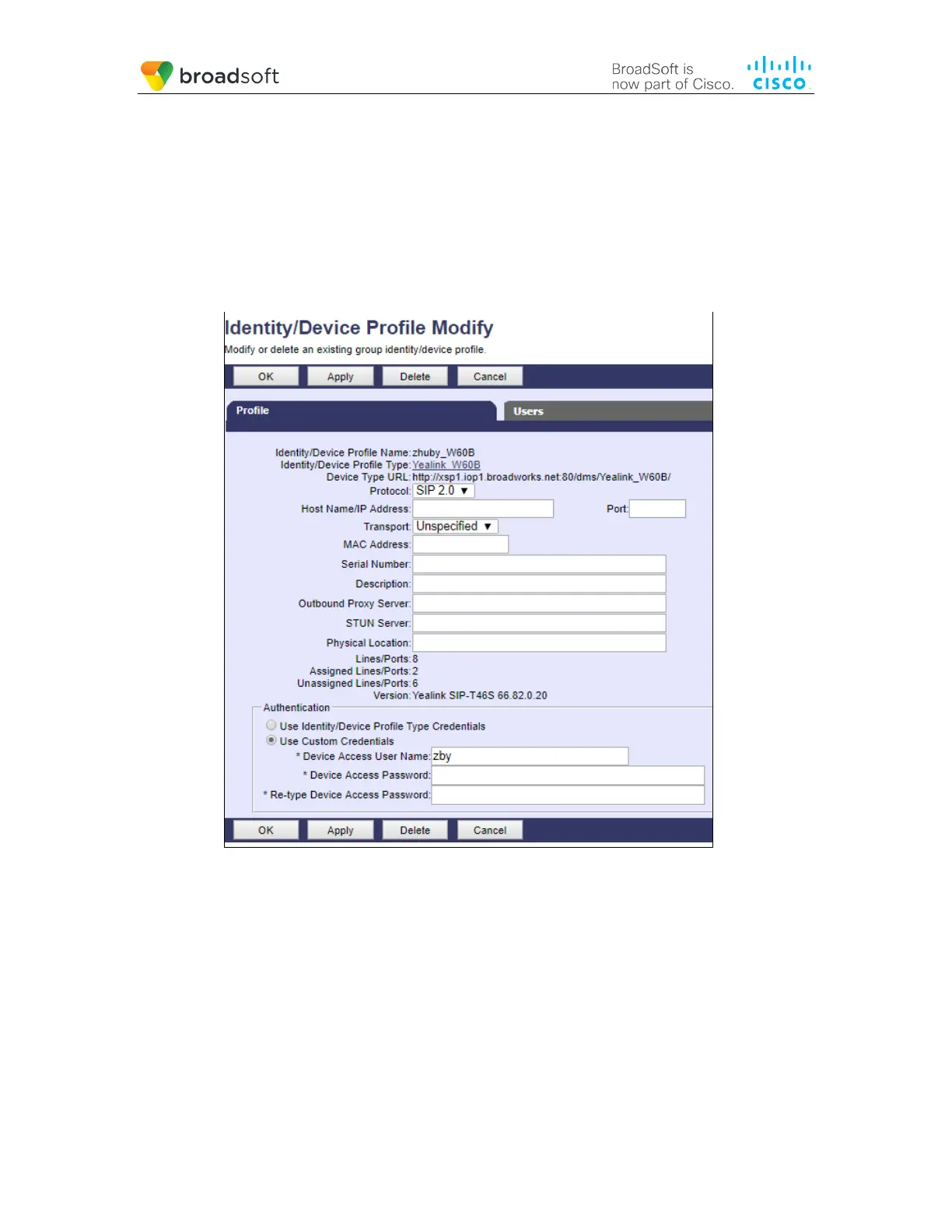

Figure 16 Device Profile Instance
For the Xtended Services Interface feature to be authenticated, it is necessary to override
the Xtended Services Interface password for each of the lines at the device profile
instance level. To override custom tags at the device profile instance level, click on the
Custom Tags tab.

Yealink W60B Specifications

General

Dimensions	130mm x 100mm x 25.1mm
Operating Temperature	0°C to +40°C
DECT Standards	CAT-iq 2.0
Number of Handsets	Up to 8
Internal Calls	Yes
External Calls	Yes
Call Hold	Yes
Call Transfer	Yes
3-way Conference	Yes
Call Waiting	Yes
Mute	Yes
Redial	Yes
DECT Radio Coverage	Up to 50m indoors, 300m outdoors
PoE	IEEE 802.3af Class 1
Configuration	Browser/phone/auto-provision
Wall Mountable	Yes
Wireless Technology	DECT
Channels	120
Concurrent Calls	Up to 8 concurrent calls
Audio Codecs	G.722, G.711, G.729, G.726, iLBC, Opus
Security	TLS, SRTP, HTTPS, 802.1X
Operating Humidity	10 ~ 95%
Handset Registration	8 handsets
Frequency Bands	1880-1900 MHz
Operating Range	Up to 50m indoors, 300m outdoors
Humidity	10-95%
Compliance	CE, FCC, RCM
Network Protocols	SIP, HTTP, HTTPS, DHCP, DNS, NTP, STUN
Number of SIP Accounts	Up to 8 SIP accounts
Storage Temperature	-30°C to +70°C
