MyPBX Standard User Manual
www.yeastar.com Page 5
Note: the features with asterisk (*) will be supported in next version.
1.2 Hardware Specifications
1.2.1 Exterior Appearance
A. MyPBX Standard
Front Side

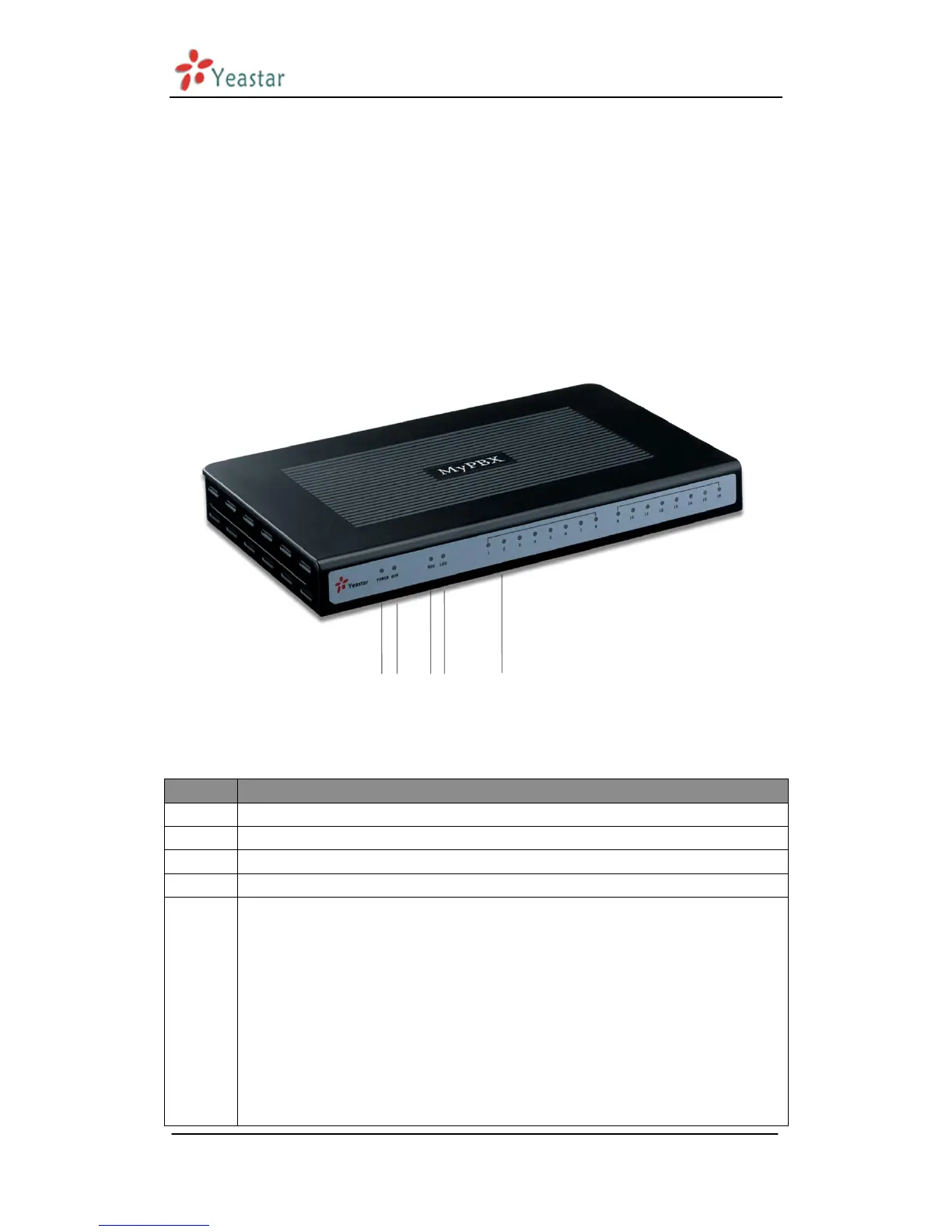

Figure 1-1 MyPBX Front Panel Picture
Green LED: Indicates correct power is being supplied to the unit
Green LED: Indicates the MyPBX is fully functional.
Green LED: Indicates stable WAN Port connection
Green LED: Indicates stable LAN Port connection
Red LED: Indicates presence of an FXO/GSM port.
Orange LED: Indicates presence of a BRI port.
Green LED: Indicates presence of an FXS port.
LED Blinking- Red blinking: No connection between FXO port and
PSTN
LED Alternating - Red and Green (slow blink): FXO port is receiving
an incoming call.
LED Alternating - Red and Green (fast blink): FXO port is in use
LED Dual - Green and Red (slow blink): FXS port is ringing
LED Dual - Green and Red (fast blink): FXS port is in use
