6.2.3 Setting Up 1P Connection (Scott Connection)
If wiring is set to 3P3W+1P3W (Scott connection), it is necessary to set up
single-phase load connection (1P connection).
TOP
MENU
ENTER
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F 1
F 2 F 3 F 4 F 5
DISP COPY
RANGE

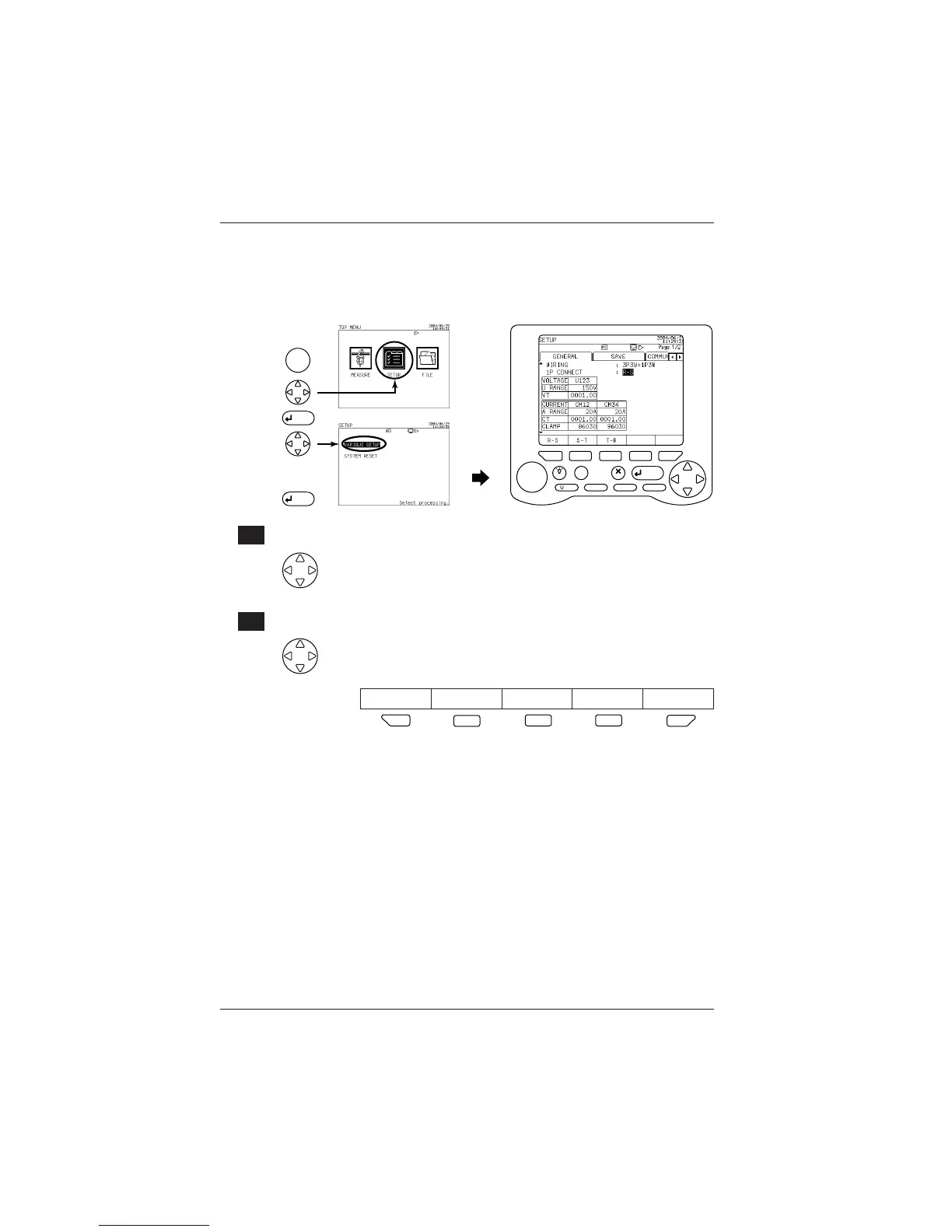

[ 1 Displaying the General 1/2 screen
Using the right and left cursor keys, select the General tab
(highlighted).
[ 2 Changing 1P connection
Using the up and down cursor keys, select 1P CONNECT
(highlighted).
The function key labels change.
R-S S-T T-R
F 1 F 1
F 2
F 3
F 4
F 5
Default: R-S
