Configuring Settings
6
[ 3 Setup
F
1
F
1
to
F3

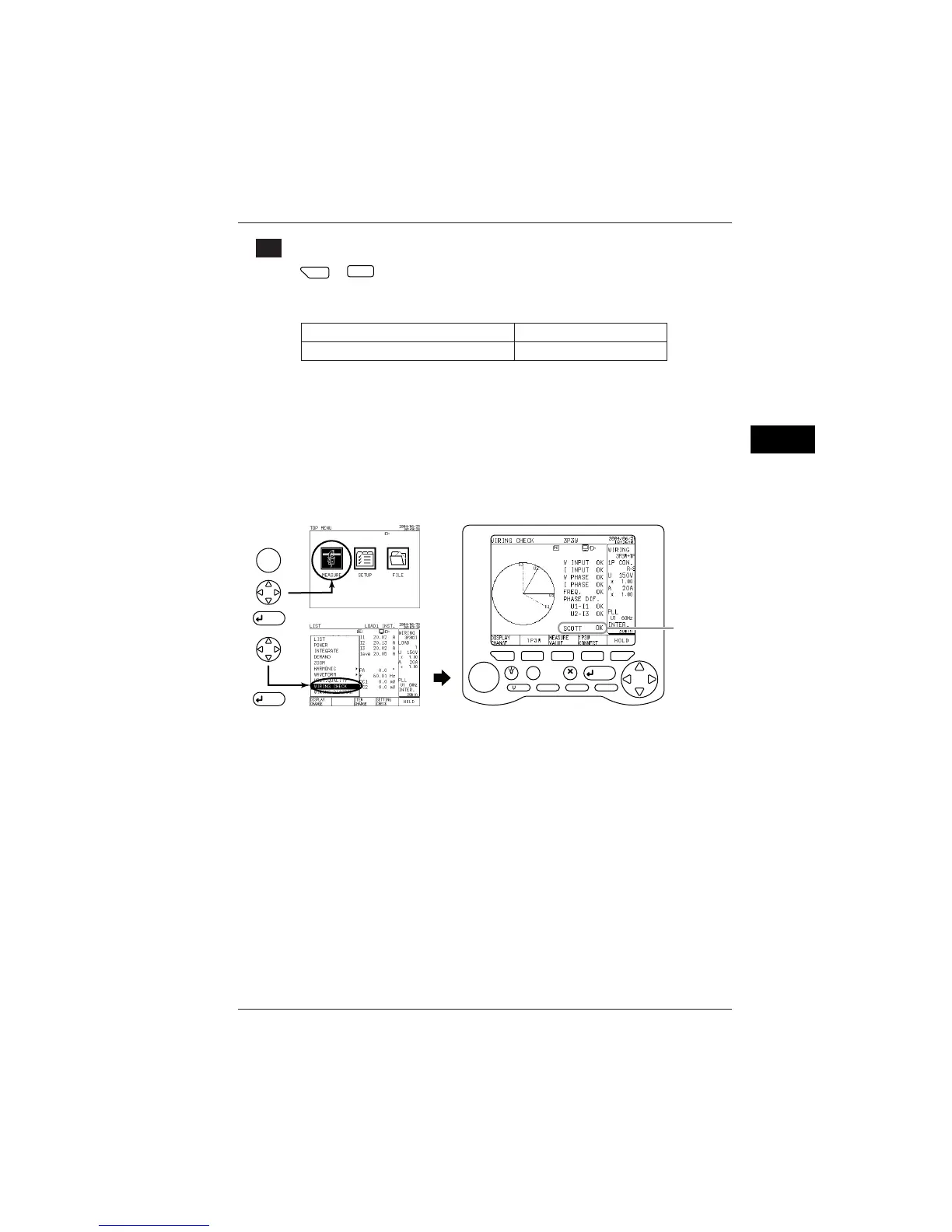

Press the corresponding function key to set 1P connection.
Ending setup:
To also change another setting To return to the Top Menu
Select a desired setting using the cursor keys. ENTER key
● Scott Connection
If wiring is set to 3P3W+1P3W (Scott connection), the setting of 1P connection
is displayed (instead of the number of loads).
In Scott connection, it is necessary to set single phase-side connection (1P
connection).
To check whether connection setting has been correctly made, view the Wiring
Check screen.
TOP
MENU
ENTER
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
Judgment result
SEE ALSO
For more information, see Section 4.7, Checking Wiring.
6.2 General Settings 1/2
To Next Page
