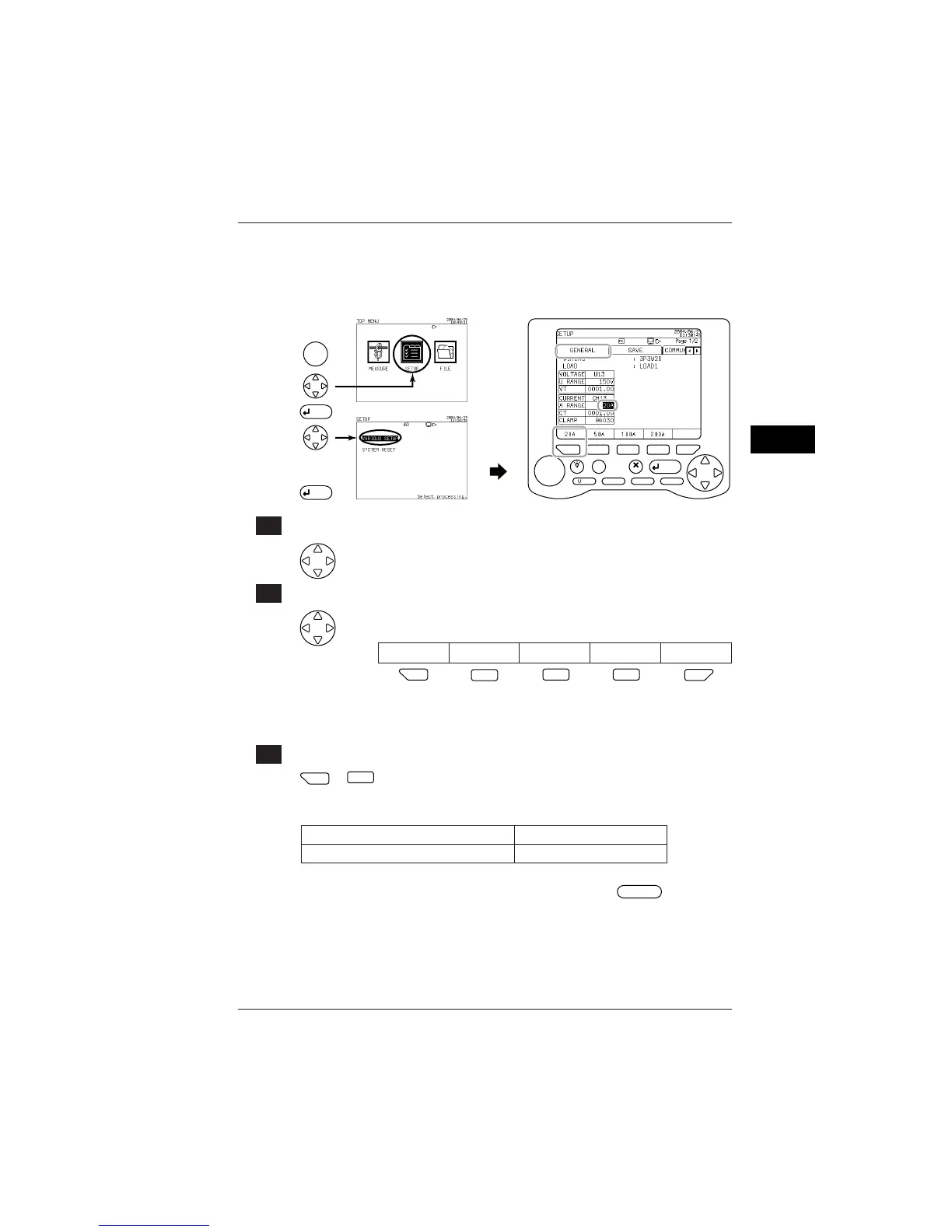

6.2.5 Setting Up the Current Range
The current range varies depending on the clamp-on probe to be used.
See 6.2.6, Setting Up a Clamp-on Probe.
TOP
MENU
ENTER
ENTER
LIGHT
TOP
MENU
SAVE
A
RANGE
START
&STOP
ESC
ENTER
F
1
F
2
F
3
F
4
F
5
DISP COPY
RANGE
[ 1 Displaying the General 1/2 screen
Using the right and left cursor keys, select the General tab
(highlighted).
[ 2 Changing the A range (current range)
Using the up and down cursor keys, select A RANGE (highlighted).
The function key labels change.
20A 50A 100A 200A
F
1
F
1
F
2
F
3
F
4
F
5
Default: 20 A (with clamp-on probe 96030 set up)
The default shows the minimum range of each clamp-on probe.
[ 3 Setup
F
1
F
1
to
F4
Press the corresponding function key to set the current range.
Ending setup:
To also change another setting To return to the Top Menu
Select a desired setting using the cursor keys. ENTER key
A current range can also be changed and set using the
A
RANGE
key (Direct
key) on the Measure screen.
SEE ALSO
For more information, see Section 5.2, Setting the Current Range, in Chapter 5, Set-
ting Ranges Using the Direct Keys.
