6-93
IM CW240E
Configuring Settings
6

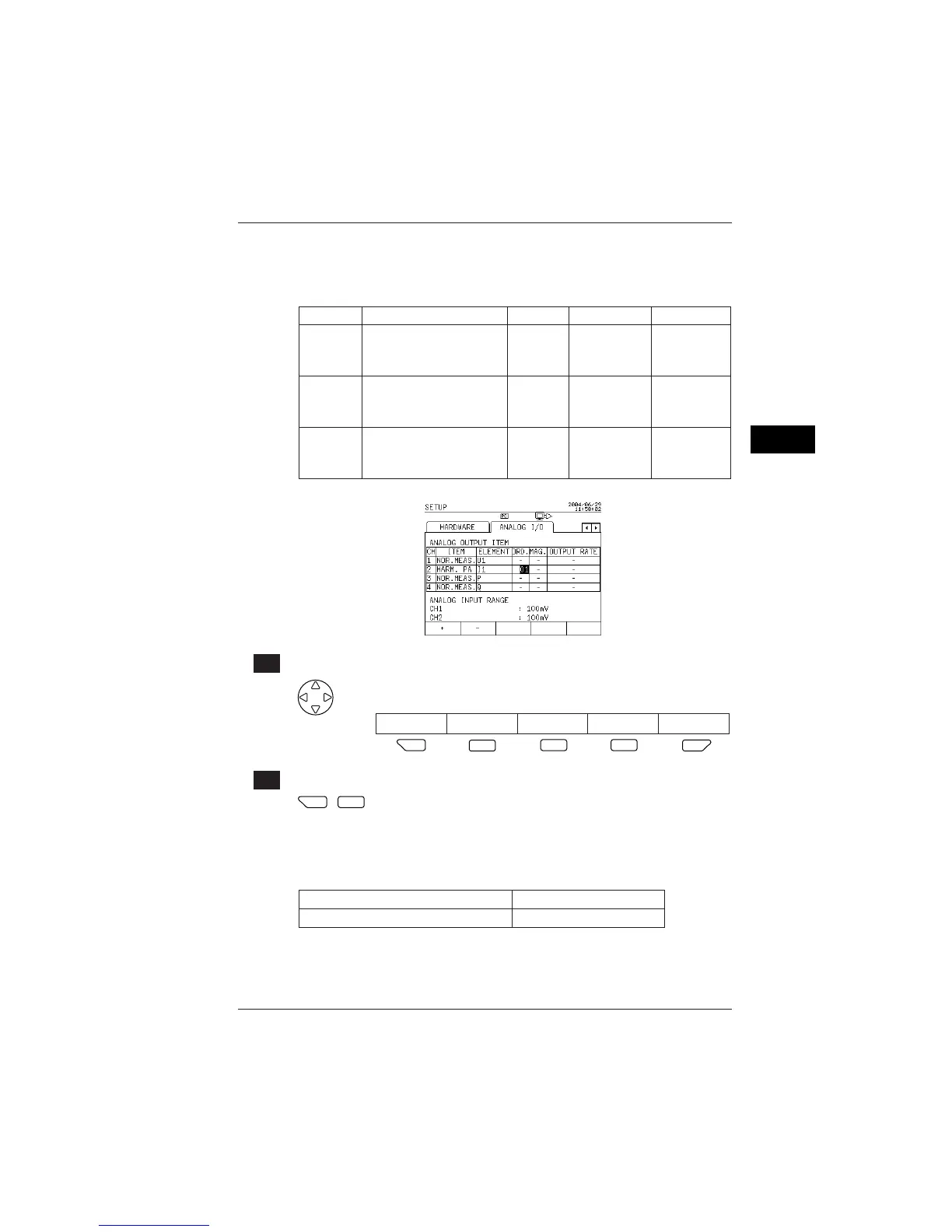

● Order Setting Procedure
The order needs to be set when the analog output item is set to LEVEL,
CONTENT, or HARM. PA.
Set up the harmonic order to be saved (output) from among 1st to 50th orders.
Item Element Order Magnification Output Rate
LEVEL
Voltage (U1, U2, U3)
Current (I1, I2, I3, I4)
Power (P)
1 to 50
1, 10, and 100
times
CONTENT
Voltage (U1, U2, U3)
Current (I1, I2, I3, I4)
Power (P)
1 to 50
1, 10, and 100
times
HARM. PA
Voltage (U1, U2, U3)
Current (I1, I2, I3, I4)
Power (P)
1 to 50
_
_
_
_
[ 1 Changing the order
Using the cursor keys, select the order of CH (highlighted).
The function key labels change.
+ – SETUP
F
1
F
1
F
2
F
3
F
4
F
5
[ 2 Setup
F
1
F
1
,
F
2
Press the corresponding function key to set the order.
F1 : + Increments a value.
F2 : – Decrements a value.
Ending setup:
To also change another setting To return to the Top Menu
Select a desired setting using the cursor keys. ENTER key
6.9 Analog I/O Settings
To Next Page
